| DL-100-E/DL-100-E-W/DL-101-E/DL-101-E-W |
|
| |
| ~ NEW ~ |
~ NEW ~ |
 |
 |
Model: DL-100-E |
Model: DL-100-E-W |
| |
|
| ~ NEW ~ |
~ NEW ~ |
 |
 |
Model: DL-101-E |
Model: DL-101-E-W |
|
|
 |
- Measurement Range: -20 to +60°C and 0 to 100% RH
- LCD Display Shows Temperature, Humidity, Relative Humidity, Date and Time
- Able to store up to 600,000 records with date and time stamps

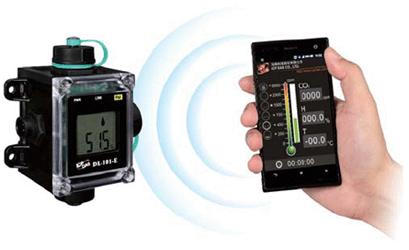

- Free Software Utility, iOS APP and Android App Included

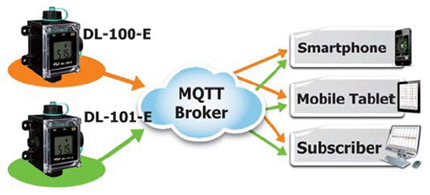

- Supports the Modbus TCP and MQTT Protocols
- Includes redundant power inputs: PoE (IEEE 802.3af, Class 1) and DC input (DL-101-E Only)
- PhotoMOS Relay Output for Alarm Devices or IAQ Device Control (DL-101-E Only)
- Supports Web Configuration and Firmware Update via Ethernet
- IP 66 Protection Approval
- DIN-Rail or Wall Mounted
|
|
|
| |
 |

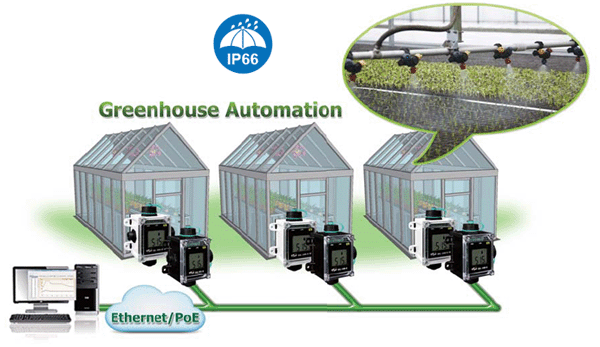

The DL-100-E/DL-101-E series of Data Logger devices can be used to record temperature, humidity and dew point information, including the date and time stamps for each record, with up to 600,000 downloadable records able to be stored. Real-time data can be accessed from the DL-100-E/DL-101-E Data Logger from anywhere and at any time using the free Windows software, the iOS App, or the Android App, as long as it is connected to the same local network as the Data Logger. The DL-100-E/DL-101-E Data Logger supports popular industrial protocols such as Modbus TCP, as well as the emerging machine-to-machine (M2M)/IoT (Internet of Things) connectivity protocol – MQTT. The DL-100-E/DL-101-E Data Logger can be connected using a range of communication interfaces including Ethernet and PoE, meaning that the device can be easily integrated into existing HMI or SCADA systems, ensuring easy maintenance in a distributed control system. |
|
| |
 |
- Transportation of food or pharmaceuticals
- Food and beverage industry (HACCP)
- Blood stations, pharmacies
- Building and energy management
- Museums, archives, galleries
- Warehouses
|
 |
|
| |
 |
| Models |
DL-100-E |
DL-100-E-W |
DL-101-E |
DL-101-E-W |
| Temperature Sensor |
| Measuring Range |
-20 to +60°C (-31 to +176˚F) |
| Resolution |
0.1°C |
| Accuracy |
±0.4°C |
| Humidity Sensor |
| Measuring Range |
0 ~ 100% RH |
| Resolution |
0.1% RH |
| Accuracy |
±3% RH @ 20 to 80% RH |
| LCD and LED Display |
| LCD Information Displayed |
Temperature (°C and °F), Humidity (RH), Relative Humidity, Date and Time |
| PWR |
System indicator (Green) |
| Link |
Link/Act indicator (Green) |
| PoE |
PoE indicator (Red) |
| Communication |
| Ethernet Port |
10/100 Base-TX with Auto MDI/MDI-X |
| PoE |
Yes, (IEEE 802.3af, Class 1) |
| Protocol |
Modbus TCP, MQTT |
| Security |
Password and IP Filter |
| Dual Watchdog |
Yes, Module, Communication (Programmable) |
| System |
| Real-time Clock |
Yes |
| Data Logger |
Yes, 600,000 Records |
| PhotoMOS Relay Output |
- |
Form Ax2, SPST 100 VDC @ 1 A |
| Electrical |
| Powered from Terminal Block |
- |
+12 to +48 VDC |
| Powered from PoE |
IEEE 802.3af, Class 1 (48 V) |
| Power Consumption |
PoE |
0.7 W (Max.) |
0.7 W (Max.) |
| Non-PoE |
- |
0.6 W (Max.) |
| Mechanical |
| Dimensions (W x L x H) |
92 mm x 133 mm x 56 mm |
100 mm x 133 mm x 56 mm |
| Waterproof Level |
IP66 |
| Installation |
DIN-Rail; Wall mounted |
| Environment |
| Operating Temperature |
-20 to +60˚C |
| Storage Temperature |
-30 to +80˚C |
| Ambient Relative Humidity |
5 to 95% RH, Non-condensing |
|
| |
 |
| DL-100-E CR |
Remote Temperature and Humidity Data Logger with LCD Display (Black Cover) (RoHS) |
| DL-101-E CR |
Remote Temperature/Humidity/Dew Point Data Logger with Safety Alarm (Black Cover) (RoHS) |
| DL-100-E-W CR |
DL-100-E-W (White Cover) (RoHS) |
| DL-101-E-W CR |
DL-101-E-W (White Cover) (RoHS) |
|
| |
 |
| NS-205-IP67 CR |
Industrial 5-port unmanaged IP67 Ethernet switch
Includes IP67 RJ45 Plug x 5, IP67 Power Plug x 1, Cap with Tether x 5 (RoHS) |
| NS-205PSE-IP67 CR |
Industrial 5-port unmanaged IP67 Ethernet switch with PoE
Includes IP67 RJ45 Plug x 5, IP67 Power Plug x 1, Cap with Tether x 5 (RoHS) |
| NS-208PSE-IP67 CR |
Industrial 8-port unmanaged IP67 Ethernet switch with PoE
Includes IP67 RJ-45 Plug x 8, IP67 Power Plug x 1, Cap with Tether x 8 (RoHS) |
| NS-208-IP67 CR |
Industrial 8-port unmanaged IP67 Ethernet switch
Includes IP67 RJ-45 Plug x 8, IP67 Power Plug x 1, Cap with Tether x 8 (RoHS) |
| MDR-60-48 CR |
48V/1.25A, 60W Single Output Industrial DIN Rail Power Supply (RoHS) |
| DIN-KA52F-48 |
48 V/0.52 A, 25 W Power Supply with DIN-Rail Mounting |
| DR-120-48 |
48 V/2.5 A,120 W Power Supply with DIN-Rail Mounting |
|
| |
