W-8381 / W-8781 Hardware Specification
  * Products: Make to order (Only for existing customers)
Specifications

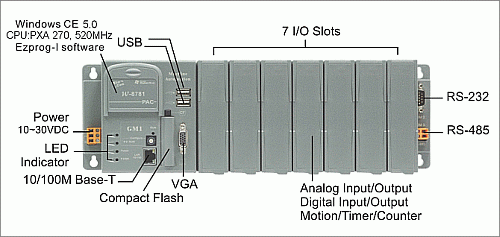

The MCU (Main Control Unit) is the powerhouse of the W-8x81-GM1. Each MCU comprises a Central Processor Module (CPM) and a wide-range power supply. There is a three or seven slot backplane for either 3 or 7 Parallel or Serial I/O modules. The CPM is powerful integrated processing engine comprising a CPU, the internal 32 MB flash memory and 64 MB SDRAM. The CPM offers an additional memory medium in Compact Flash type II format. The CPM includes PC interface, such as Ethernet port, VGA port, USB port, besides it also has Add-on FRAM (128 K) on back-plant.
WinCon-8000 with Display W-8381-GM1 W-8781-GM1
Processor xScale PXA-270 CPU, 520 MHz
Operating System Windows CE 5.0
Multiple Booting Selection Flash/CF/USB disk
SDRAM 64 MB
Flash 32 MB
FRAM 128 KB
Storage 1 x Compact Flash type II insert with ejector; 1G
Interface 2 x USB1.1,
1 x VGA Port
Ethernet Port 1 x RJ45, 10/100 BaseT
COM 2 9-pin D-Sub (RS-232)
COM 3 2-wire Terminal Block (RS-485)
Additional Serial Port N/A
Default Function 64-bit hardware unique serial number
Reset button
Power LEDs
Watchdog Timer
Real Time Clock
I/O Expansion Slot 3 7
Operating Temp. -25 ~ +75 °C (Depends on I/O modules)
Storage Temp. -30 ~ +85 °C
Humidity 5 ~ 95 %
Power Supply 20W, Unregulated +10 ~ +30 VDC
Dimensions (L x H x D) (mm) 230.25 x 110 x 93.8 354.26 x 110 x 93.8
