With different communication interface, the I/O modules can be classified to high communication speed (Parallel bus) 8K series modules and low communication speed (serial interface) 87K series modules.

  Will be available
  Available soon


I-8K series I/O modules

The communication interface is parallel bus.

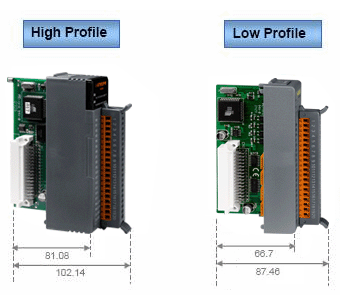

High profile: It can be plugged in WinPAC, LinPAC and iPAC-8000 controllers.
Low profile: It can be plugged in WinCon, LinCon and I-8000 controllers.
Type
 High Profile
(Software Support)		 Low Profile Description

I-8014W
AI modules have high sampling rate from 1K to 100Ksps (depends on software)

I-8017HW   I-8017H

I-8017HS(Note 1)

I-8024W   I-8024

I-8037W   I-8037
The accessing time can be up to 20KHz (depend on software)

I-8040W   I-8040

I-8040PW

I-8041W   I-8041

I-8041AW

I-8042W   I-8042

I-8046W

I-8048W   I-8048

I-8050W   I-8050

I-8051W   I-8051

I-8052W   I-8052

I-8053W   I-8053

I-8053PW

I-8054W   I-8054

I-8055W   I-8055






















Counter/Frequency Module
(Selection Guide)

I-8080W   I-8080
Input signal range can be 10Hz to 400KHz

I-8088W
      I-8072
Used to log or retain data.


I-8072B
      I-8073(Note 3)



      I-8112
Used to expand RS232/422/485 and FRnet ports.

I-8112iW

I-8114W   I-8114

I-8114iW
      I-8142

I-8142iW   I-8142i
      I-8144

I-8144iW


I-8172(Note 1)
      I-8090-G
Used to drive motors or get encoder data.
      I-8091-G

I-8092F-G(Note 2)

I-8093W

I-8094-G(Note 2)

I-8094F-G(Note 2)

I-8094H-G(Note 1)

I-8094A-G(Note 1)
CAN Bus Modules

I-8120
(I-8KCAN)(Note 1)

I-8123
(I-8KCPM)

I-8124
(I-8KDNM)
Note 1: Can be used with I-8000, WinCon and LinCon controllers only.
Note2: Can be used with WinPAC, WinCon, LinPAC, LinCon, I-8000, iPAC-8000.
Note 3: Can’t be used with LinCon controllers.

Will be available
  Available soon


I-87K series I/O modules
The communication interface is serial bus (RS-485) and the protocol is DCON. I-87K series modules are classed as
High profile: It can be plugged in WinCon, LinCon, I-8000, WinPAC, LinPAC and iPAC-8000 controllers and RU-87Pn, USB-87Pn, I-87K, RF-87K I/O expansion units.
Low profile: It can be plugged in WinCon, LinCon, I-8000 controllers and I-87K, RF-87K I/O expansion units.
Type
 High Profile
(Software Support)		 Low Profile Max. baudrate Description

I-87005W
115.2 Kbps


I-87013W   I-87013

I-87015

I-87015P

I-87016W

I-87017W   I-87017

I-87017W-A5

I-87017R

I-87017RC

I-87018W   I-87018

I-87018R

I-87018Z

I-87019R
      I-87022
115.2 Kbps
Slew rate of AO channels are programmable

I-87024C

I-87024W   I-87024
      I-87026

I-87028C

I-87040W   I-87040
115.2 Kbps
DI channels can be used to get status and low speed (100Hz Max.) counts.

I-87041W   I-87041

I-87046W

I-87051W   I-87051

I-87052W   I-87052

I-87053PW

I-87053W   I-87053

I-87053W-A5

I-87053W-E5

I-87054W   I-87054

I-87055W   I-87055

I-87057W   I-87057

I-87058W   I-87058

I-87059W

I-87063W   I-87063

I-87064W   I-87064

I-87065W   I-87065

I-87066W   I-87066

I-87068W   I-87068

I-87069W   I-87069
Counter/Frequency Module
(Selection Guide)

I-87082W   I-87082
115.2 Kbps
Input signal range can be 1Hz to 100KHz

I-87088W
CAN Bus Modules

I-87120
(I-87KCAN)(Note 2)

I-87123
(I-87KCPM)(Note 1)

I-87124
(I-87KDNM)(Note 1)
Note 1: Can be used with I-8000 and WinCon controllers only.
Note2: Can be used with WinPAC, WinCon, LinPAC, LinCon, I-8000, iPAC-8000.

  Will be available
  Available soon

Other I/O modules
Model
Description


Blank I/O Module
