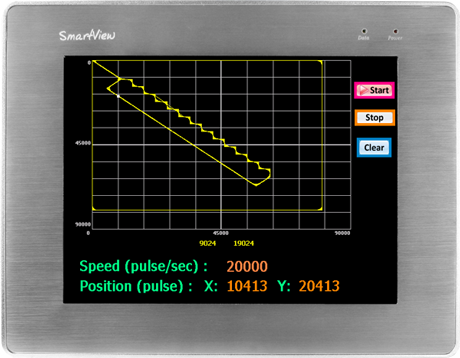

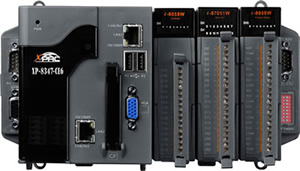

The Soft-GRAF HMI - "g_Trace2" object can show 1-axis (X : Horizontal or Y : Vertical) or 2-axes (X , Y) moving trace map. It is useful to apply to the Motion control card (4-axes: I-8094, I-8094F ; 2-axes : I-8092F) plugged into the XP-8xx7-CE6. The "g_Trace2" object can draw a graph in an X-Y plane depends on the moving trace of two integer variables. For example, a straight line, polygon, irregular traces, etc.

For more about the Motion Control, please refer to the FAQ-132.
