PIO-821H/PIO-821L/PIO-821HU/PIO-821LU
PCI Bus/Universal PCI, 12-bit 45 kS/s 16-ch A/D, 12-bit 1-ch D/A Multi-function DAQ Board |
|
| ~ Will be phased out ~ |
|
 |
- Supports the +5 V PCI Bus for PIO-821L/H
- Supports the +3.3/+5 V PCI bus for PIO-821LU/HU
- The maximum sampling rate of the 12-bit A/D converter is about 45K samples/sec
- 16 single-ended or 8 differential analog input channels
- Software selectable input ranges
- A/D trigger mode: software trigger, pacer trigger, external trigger
- Programmable high gain: 1, 10, 100, 1000 (PIO-821H/HU)
- Programmable low gain: 1,2,4,8 (PIO-821L/LU)
- Input range: ±5V,±0.5V, ±0.05V,±0.005V(PIO-821H/HU)
- Input range: ±5V,±2.5V,±1.25V,±0.625V (PIO-821L/LU)
- 1-channel 12-bit D/A voltage output
- 16-channel 5V/TLL digital input and 16-channel 5V/TTL digital output
- Supports Card ID (SMD Switch) for PIO-821LU/HU
- Digital input port can be set to pull-high or pull-low for PIO-821LU/HU
- Interrupt handling
|
|
 |
| Model: PIO-821H/PIO-821L |
| |
 |
| Model: PIO-821HU/PIO-821LU |
|
|
|
| |
 |
The PIO-821LU/HU card is the new generation product that ICP DAS provides to meet RoHS compliance requirement. The new PIO-821LU/HU card is designed as a drop-in replacement for the PIO-821L/H, and users can replace the PIO-821L/H by the PIO-821LU/HU directly without software/driver modification.
The PIO-821 series cards are a high performance multifunction board for PC/AT compatible computers. The PIO-821LU/HU universal PCI card supports 3.3 V/5 V PCI bus while the PIO-821L/H supports 5 V PCI bus. They feature a 12-bit ADC and the maximum sampling rate of the A/D converter reaches up to about 45K samples/sec.,16 single-ended or 8 differential analog input channels, 12-bit DAC voltage output and 16 TTL-compatible digital input and digital output channels. The PIO-821L/LU provides for low gain (1, 2, 4, 8); and the PIO-821H/HU supports high gain (1, 10, 100, 1000).
The PIO-821LU/HU also adds a Card ID switch and pull-high/pull-low resisters for DI on board. Users can set Card ID on a board and recognize the board by the ID via software when using two or more PIO-821LU/HU cards in one computer. The pull-high/ pull-low resisters allow the DI status to be specified when the DI channels are unconnected; the DI status will remain in high or low status other than floating.
These cards support various OS such as Linux, DOS, Windows 98/NT/2000 and 32/64-bit Windows 8/7/Vista/XP. DLL and Active X control together with various language sample program based on Turbo C++, Borland c++, Microsoft C++, Visual C++, Borland Delphi, Borland C++ Builder, Visual Basic, C#.NET, Visual Basic.NET and LabVIEW are provided in order to help users to quickly and easily develop their own applications. |
| |
 |
- High speed data acquisition system.
- Process monitor and control.
- Vibration analysis.
- Digital pattern generator from digital I/O port.
|
| |
 |
- DOS Lib and TC sample program (source codes included).
- DLL and OCX SDK for Windows 98/NT/2000
- DLL and OCX SDK for 32-bit and 64-bit Windows XP/2003/2008/7/8/10.
- VB/VC/Delphi/BCB/VB.NET/C#.NET/VC.NET/MATLAB sample programs with source codes.
- LabVIEW toolkit for Windows.
- Driver for Linux.
|
| |
 |
| Model Name |
PIO-821LU |
PIO-821HU |
PIO-821L |
PIO-821H |
| Analog Input |
| Channels |
16 single-ended/8 differential |
| A/D Converter |
12-bit, 8 μs Conversion time |
| Sampling Rate |
45 kS/s. max. |
| FIFO Size |
N/A |
| Over voltage Protection |
Continuous +/-35 Vp-p |
| Input Impedance |
10 MΩ/6 pF |
| Trigger Modes |
Software, Internal programmable pacer |
| Data Transfer |
Polling, Interrupt |
| Accuracy |
0.01 % of FSR ±1 LSB @ 25 °C, ± 10 V |
| Zero Drift |
+/- 4 ppm/°C of FSR |
| Analog Output |
| Channels |
1 |
| Resolution |
12-bit |
| Accuracy |
0.01% of FSR ± 1/2 LSB @ 25 °C, ± 10 V |
| Output Range |
Unipolar:0 ~ 5 V, 0 ~ 10 V, 0 ~ Ext Ref |
| Output Driving |
+/- 5 mA |
| Slew Rate |
0.3 V/μs |
| Output Impedance |
0.1 Ω max. |
| Operating Mode |
Software |
| Dgital Input |
| Channels |
16 |
| Compatibility |
5 V/TTL |
| Input Voltage |
Logic 0: 0.8 V max.
Logic 1: 2.0 V min. |
| Response Speed |
1.2 MHz (Typical) |
| Digital Output |
| Channels |
16 |
| Compatibility |
5 V/TTL |
| Output Voltage |
Logic 0: 0.4 V max.
Logic 1: 2.4 V min. |
| Output Capability |
Sink: 2.4 mA @ 0.8 V
Source: 0.8 mA @ 2.0 V |
| Response Speed |
1.2 MHz (Typical) |
| Timer/Counter |
| Channels |
3(Internal pacer x 1/Independent x 2) |
| Resolution |
16-bit |
| Compatibility |
5 V/TTL |
| Input Frequency |
10 MHz max. |
| Reference Clock |
Internal: 2 MHz |
| General |
| Bus Type |
3.3 V/5 V Universal PCI, 32-bit, 33 MHz |
5 V PCI, 32-bit, 33 MHz |
| Data Bus |
8-bit |
| Card ID |
Yes (4-bit) |
No |

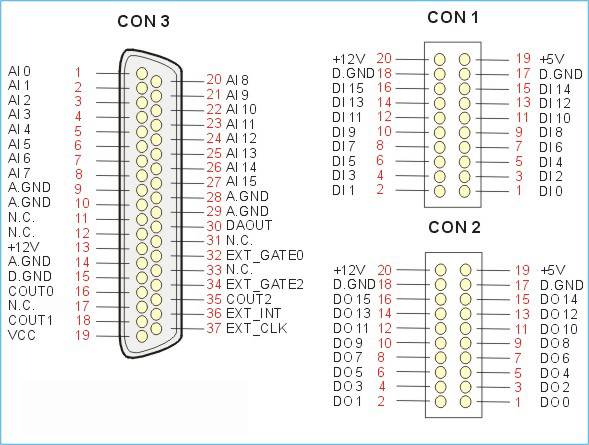

| I/O Connector |
Female DB37 x 1
20-pin box header x 2 |
| Dimensions (L x W x D) |
159 mm x 97 mm x 22 mm |
183 mm x 105 mm x 22 mm |
| Power Consumption |
960 mA @ +5 V |
| Operating Temperature |
0 ~ 60 °C |
| Storage Temperature |
-20 ~ 70 °C |
| Humidity |
5 ~ 85% RH, non-condensing |
| Analog Input Range |
| Model |
PIO-821L/LU (Low-Gain) |
| Gain |
1 |
2 |
4 |
8 |
| Bipolar |
+/- 5 |
+/- 2.5 |
+/- 1.25 |
+/- 0.625 |
| Sampling Rate Max. |
45 kS/s |
|
| Model |
PIO-821H/HU (High-Gain) |
| Gain |
1 |
10 |
100 |
1000 |
| Bipolar |
+/- 5 |
+/- 0.5 |
+/- 0.05 |
+/- 0.005 |
| Sampling Rate Max. |
45 kS/s |
10 kS/s |
1 kS/s |
|
|
| |
 |
| PIO-821H CR |
PCI bus, 45 kS/s High gain 12-bit,16-channel input, 1-channel D/A, Digital I/O board. (RoHS) |
| PIO-821L CR |
PCI bus, 45 kS/s Low gain 12-bit,16-channel input, 1-channel D/A, Digital I/O board. (RoHS) |
| PIO-821H/S CR |
PIO-821H + Daughter Board DB-8225. (RoHS) |
| PIO-821HU CR |
Universal PCI, 45 kS/s High gain 12-bit,16-channel input, 1-channel D/A, Digital I/O board. (RoHS)
Includes one CA-4002 D-Sub connector. |
| PIO-821LU CR |
Universal PCI, 45 kS/s Low gain 12-bit,16-channel input, 1-channel D/A, Digital I/O board. (RoHS)
Includes one CA-4002 D-Sub connector. |
|
| |
 |

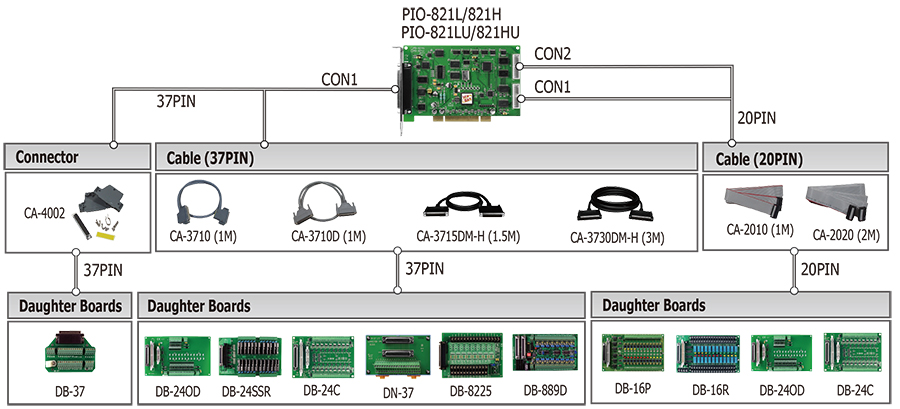

| CA-2010 |
20-pin flat cable,1 M |
| CA-2020 |
20-pin flat cable 2 M. |
| CA-3710 |
DB-37 Male-Male D-sub cable 1 M (Cable for Daughter Board(45°)) |
| CA-3710D |
DB-37 Male-Male D-sub cable 1M (Cable for Daughter Board(180°)) |
| CA-3715DM-H |
DB-37 Male-Male Cable, 1.5 M, 180°. (RoHS) |
| CA-3730DM-H |
DB-37 Male-Male Cable, 3.0 M, 180°. (RoHS) |
| CA-4002 |
37-pin Male D-sub connector with plastic cover. |
| DB-8225 |
Screw Terminal Board For Analog I/O |
| DB-37 |
Directly connect signal to D-sub 37-pin connector |
| DN-37 |
DIN Rail Mounting 37-pin Connector |
| DB-889D |
16-channel Analog Input Multiplexer Board |
| DB-16P |
16-channel Isolated Digital Input Daughter Board |
| DB-16R |
16-channel Relay Output Daughter Board |
| DB-24C |
24-channel Open Collector Output Daughter Board |
| DB-24OD |
24-channel Open-Drain Output Board |
| DB-24SSR |
24-channel SSR Output Board |
| DN-20/DN-20-381 |
20-pin Din-Rail mounting I/O connector board |
| 125Ω, 0.1% DIP Resistors |
125 Ω External Resistor for use with Current Input |
|
| |
 |
| |
 |
|
| |
|
|
| |
|
|
