I-8KE4-MTCP-G/I-8KE8-MTCP-G
Modbus/TCP I/O Unit
(Ethernet enables Modbus commands to run over TCP/IP) |
|
| |
| |
|
 |
 |
| I-8KE4-MTCP-G |

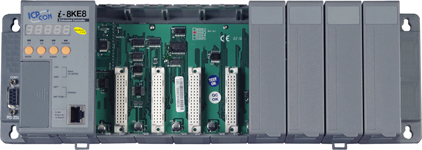

Model: I-8KE8-MTCP-G |
|
|
| |
 |

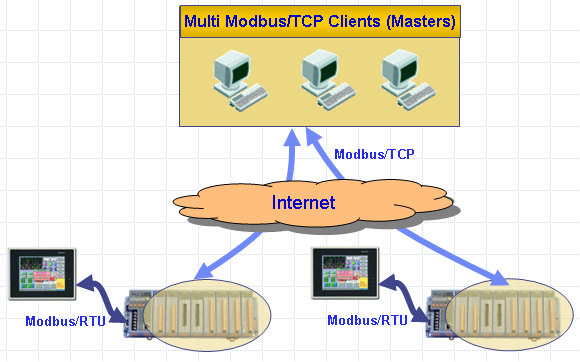

I-8KE4-MTCP-G and I-8KE8-MTCP-G are Modbus/TCP I/O units with Modbus communication protocol. They support most of 8K and 87K series I/O modules, such as DI, DO, DIO, AI, AO, etc.. Most SCADA software support Modbus communication protocol, thus users can easily and quickly integrate remote I/Os to the SCADA software as data acquisition and monitor to apply to environment monitoring, power management, factory automation, etc. |
|
|
| |
 |
- Supports IPv4
- Supports Modbus/TCP communication protocol at Ethernet port.
- Supports Modbus/RTU communication protocol at RS-232 port.
- Supports 8K and 87K series DI/DO/AI/AO/Counter/Frequency modules
- I/O configurable via the Ethernet (Using the Modbus Utility)
- I/O scan engine
The engine can automatically scan I/O modules plug in slots and range I/O registers address to continuous
to have high-data-density registers to get best communication efficiency.
- Support power on value and safe value for analog/digital output module.
- Detection of I/O module communication status (online/offline).
- The SMMI of the panel can be used to
1. Configure the network setting (IP, Mask, Gateway)
2. Set the offset value of AI/AO module
- Allowed a maximum of 8 host PCs access simultaneously
- Firmware updateable (via the RS-232 port)
- Firmware programmable
We provide the Modbus SDK allowing users customized the Modbus firmware.
|
|
| |
 |

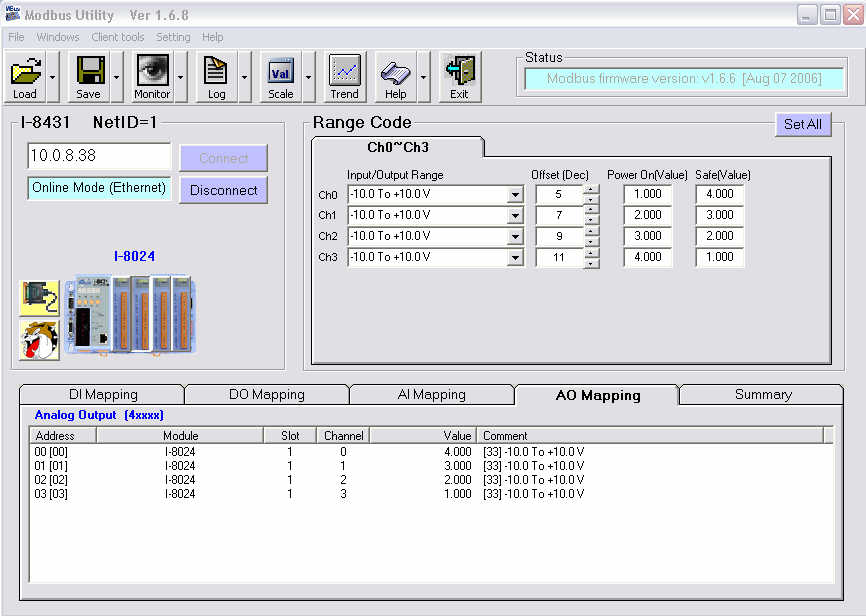

The Modbus Utility package is for Windows 98/SE/2K/XP. It includes
- Modbus Utility
- On-line configuration via Ethernet
- TO memorize the I/O setting in EEPROM
- Automatically generate register mapping tables
- Configuration export/import
- COM Port setting(Modbus/RTU gateway, VxComm, UpLink, Programming, Debug)
- show I/O value by 3 modes(Value, Dec, Hex)
- Analog output, digital output control
- Plot trend line
- I/O value datalog (.txt file)
- Power on value, safe value, WDT setting
- MBRTU
Modbus/RTU client (with source code in VB6) to diagnostic Modbus/RTU slave devices.
- MBTCP
Modbus/TCP client (with source code in VB6) to diagnostic Modbus/TCP slave devices.
|
 |
|
|
|
| |
 |
| Models |
I-8KE4-MTCP |
I-8KE8-MTCP |
| CPU module |
| CPU |
80186-80 or compatible (16-bit and 80MHz) |
| SRAM |
512 KBytes |
| Flash |
512 KBytes |
| EEPROM |
2 KBytes |
| NVRAM |
– |
| RTC (real time clock) |
– |
| Hardware Serial Number |
– |
| Built-in Watchdog Timer |
Yes |
| Communicate Interface |
| COM 0 |
Internal communication with the 87K modules |
| COM 1 |
RS-232 (to update firmware) |
| COM 2 |
– |
| COM 3 |
– |
| COM 4 |
– |
| Ethernet Port |
10BaseT NE2000 compatible |
| SMMI |
| 5 - Digit LED Display |
Yes |
| 3 - Programmable LED Indicators |
Yes |
| 4 - Push Buttons |
Yes |
| I/O expansion slots |
| Slot Number |
4 Slots |
8 Slots |
| Mechanical |
| Dimensions |
230 mm x 110 mm x 75.5 mm |
354 mm x 110 mm x 75.5 mm |
| Environmental |
| Operating Temperature |
-25 °C ~ +75 °C |
| Storage Temperature |
-30 °C ~ +85 °C |
| Humidity |
5 ~ 95%,non-condensing |
| Power |
| Protection |
Power reverse polarity protection |
| 3 KV power isolation |
Yes |
| Power requirement |
10 ~ 30 VDC |
| Power supply |
20 W |
| Power consumption |
3.9 W |
5.1 W |
|
| |
 |
| I-8KE4-MTCP-G |
4-slots Ethernet I/O unit (Gray color) |
| I-8KE8-MTCP-G |
8-slots Ethernet I/O unit (Gray color) |
|
| |
 |
| KA-52F |
AC 100 ~ 250 V input, DC 24V/1A output, flat type power supply |
| DIN-KA52F |
KA-52F with DIN-Rail mount |
| DP-660 |
24 VDC/2.5 A, 60 W and 5 VDC/0.5 A, 2.5 W Power Supply with DIN-Rail Mounting |
| DP-665 |
AC 85 ~ 270 V input, DC 24V/1.7A and 5V/0.5A output power supply |
| DP-1200 |
24 VDC/2.5 A, 60 W and 5 VDC/0.5 A, 2.5 W Power Supply with DIN-Rail Mounting |
|
| |
|
|
| |
|
|
