| Input |
| Voltage range |
100-240 VAC |
| Frequency |
50/60 Hz |
| Input current |
0.3 A(rms) for 115 VAC, 0.2 A (rms) for 230 VAC |
| Insulation resistance |
50 MOhm min from output to ground |
| Inrush current |
30 A @ 115 VAC, or 50 A @ 230 VAC at 25°C cold start. |
| Output |
| Voltage |
12 VDC |
| Output current |
0.58 A |
| Ripple |
±3% p-p max. |
| Over voltage protection |
Yes |
| Over current protection |
Yes |
| Temperature coefficient |
All outputs ±0.03%/°C max. |
| Efficiency |
75% min. while measuring at normal line and rated load. |
| Hold-up time |
10msec min. |
| Line regulation |
±1% max for input voltage change between input voltage range. |
| Load regulation |
±3% variations from min to max output current. |
| General |
| MTBF |
50,000 hours min at full load at 25°C ambient. MIL-HDBK-217F |
| Environmental |
| Operating Temperature |
-10 °C ~ +70°C |
| Storage Temperature |
-20 °C ~ +85°C |
| Humidity |
10% ~ 95% RH, non-condensing |
| Derating |
Derated from 100% at +40 °C linearly to 50% at 70 °C. |
| Standards |
| Safety standards |
Meets or exceeds UL1950,CSA C22.2, TUV EN60950, IEC950. (Pending) |
| EMI |
Meets conduction limits of FCC Part 15 Class B, CISPR 22.2 |
| Others |

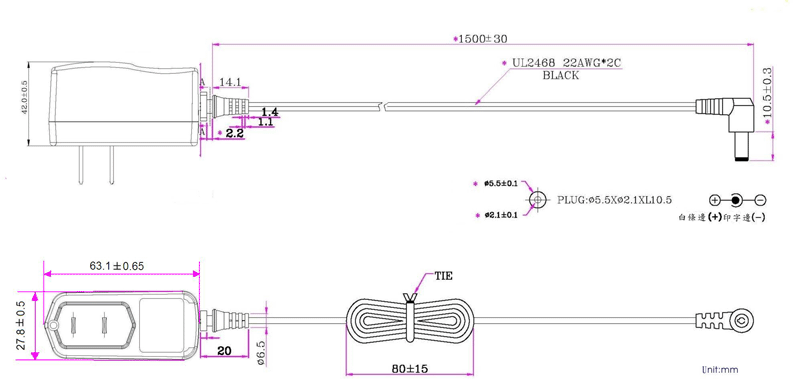

| Dimension (W x H x D) |
27.8 mm x 42.0 mm x 63.1 mm |
| DC plug |
5.5 x 2.1 x 10.5 mm 90° |
| DC cable |
UL2468 22AWG x 2C L = 1500 mm |
