| 新產品上市: I-8213W-3GWA 工業級三頻3G模組 |
| |
 |
| |

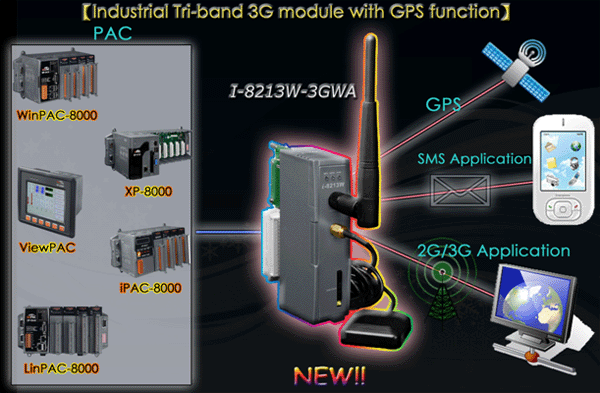

| 近年來泓格科技在M2M (Machine to Machine)領域不斷的耕耘，相繼推出G-4500可程式控制器系列、智能型GT-5XX系列和GTM-201系列，並受到市場的肯定與喜愛。現在，為了使PAC也能夠快速建立2G/3G的M2M應用, 泓格推出新產品I-8213W-3GWA 工業級三頻3G模組，其支援WCDMA 2100/1900/850 MHz 、GSM 850/900/1800/1900 MHz頻段及GPS功能，提供便利且低廉的3G/2G網路來收集遠端設備，各種流量計的資訊或者執行即時的遠端控制。除了在PAC系列產品上可當一般modem使用外，更內建TCP/IP stack只需搭配簡單的控制命令即可達到連線上網功能或簡訊的收送，可輕易搭配PAC運用於多種M2M應用，如飲料販賣機、居家保全系統、車載系統…等等。此模組支援泓格科技各種平台的PAC，如: XPAC-8000(Windows Embedded Standard 2009)， WinPAC-8000/ViewPAC (WinCE 5.0 Based)，iPAC-8000 (miniOS7 Based)，LinPAC-8000 (Linux kernel 2.6 based)...等等，讓使用者選擇搭配自己喜愛的平台上開發程式，I-8213W-3GWA搭配泓格科技的各種PAC系列產品的應用，更可讓3G/2G功能的效益發揮到最大。 |
| |
| 特色: |
- 支援三頻 UMTS 2100/1900/850 MHz，四頻 GSM 850/900/1800/1900 MHz
- 4KV ESD瞬間靜電保護
- 設計可用於3G、GPRS和簡訊應用
- 提供GPRS的TCP Server, TCP Client, UDP Client stack連線
- 支援標準的AT Commands
- GSM LED指示燈與Power LED 指示燈
- 在惡劣的環境具高可靠度
- 支援XP-8000、WinPAC-8000、LinPAC-8000、ViewPAC和 iPAC-8000系列產品
- 支援GPS功能
|
| |
| 詳細規格 |
| Models |
I-8212W-3GWA (Available) |
I-8213W-3GWA (NEW) |
| 3G System |
| Frequency Band |
UMTS : 2100/1900/850 MHz |
| Data Transmission |
UMTS/HSDPA/HSUPA
Downlink transfer: Max. 7.2Mbps; Uplink transfer: Max 5.76Mbps |
| GSM/GPRS System |
| Frequency Band |
850/900/1800/1900 MHz |
| GPRS connectivity |
GPRS class 12/10; GPRS station class B |
| DATA GPRS |
Downlink transfer: Max. 85.6 kbps; Uplink transfer: Max 42.8kbps |
| CSD |
Max. download speed 85.6 kbps; Uplink transfer: Max 42.8 kbps |
| Coding Schemes |
CS 1, CS 2, CS 3, CS 4 |
| SMS System |
| SMS |
MT, MO, CB, Text and PDU mode |
| GPS Interface |
| Support Channels |
– |
32 |
| Sensitivity |
– |
Tracking = up to -159 dBm (with external LNA) |
| Cold start = up to -146 dBm (with external LNA) |
| Acquisition Time |
– |
Hot start (Open Sky) = 2 s(typical) |
| Cold start (Open Sky) = 36 s(typical) |
| Protocol Support |
– |
NMEA 0183 version 3.01 |
| LED Indicators |
| Power |
Red color |
| 3G/2G |
Yellow color |
|
| Humidity |
10 ~ 90%, non-condensing |
|
| GPS |
– |
Green color |
| Power |
| Frame Ground Protection |
ESD, Surge, EFT, Hi-Pot |
| Power Consumption |
Idle: 0.16 A @ 5 VDC; Data Link: 0.2 ~ 1.64 A (peak) @ 5 VDC |
| Mechanical |
| Casing |
Plastic |
| Dimensions (W x L x H) |
30 mm x 85 mm x 114 mm |
| Environmental |
| Operating Temperature |
-25°C ~ +75 °C |
| Storage Temperature |
-30°C ~ +80 °C |
| Ambient Relative Humidity |
5 ~ 95% RH, non-condensing |
|
| |
| 比較表 |
| Models |
I-8212W-3GWA |
I-8213W-3GWA |
I-8212W |
I-8213W |
| 3G System |
| Frequency Band |
Tri-band 3G/Quad-band 2G |
Quad-band 2G |
| Data Transmission |
Max. 7.2 Mbps (3G)
Max. 85.6 kbps (2G) |
Max. 85.6 kbps (2G) |
| SMS |
Text, PDU |
| GPS System |
– |
Yes |
– |
Yes |
| GPS Protocol |
– |
NMEA 0183 |
– |
NMEA 0183 |
|
| |
| 更詳細的資訊，請連結到: http://m2m.icpdas.com/i-8212w-3GWA.html |
| |
| 訂購資訊 |
| I-8212W-3GWA CR (Available) |
工業級三頻3G WCDMA模組(RoHS) |
| I-8213W-3GWA CR (NEW) |
工業級三頻3G WCDMA模組且具有GPS功能(RoHS) |
|
| |
|
| |
