FR-2053/FR-2053T/
FR-2053HT
16-channel Isolated Sink Digital Input Distributed I/O Module
|
|
|
 |
 |
FR-2053 |
FR-2053T/FR-2053HT |
| |
|
|
|
|
|
|
 |
|
|
|
|
|
|
| |

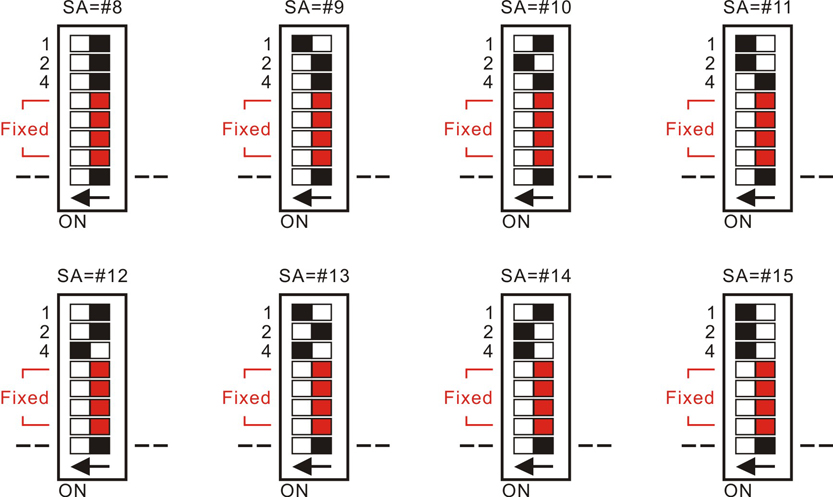

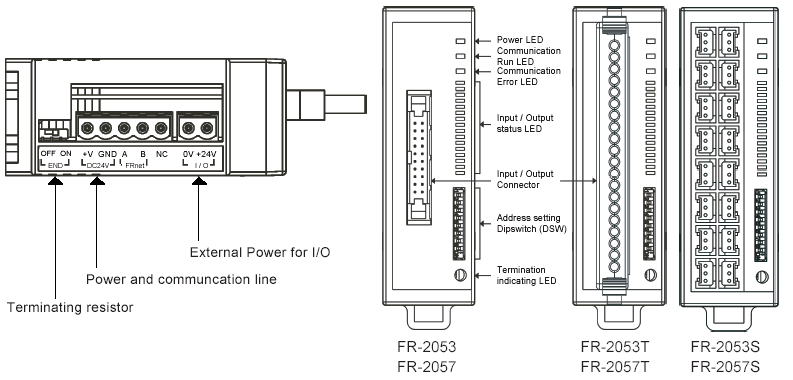

The FR-2053/2053T/2053HT has 16-channel isolated photo coupler input, while the FR-2057/2057T/2057HT has 16-channel isolated photo-coupler output. The default signal connector of FR-2053 and FR-2057 is a 20-pin header. The "T" stands for screw terminal connector and the "S" stands for 3-pin shroud connector. Each 3-pin connector has one Vcc pin, one ground and one signal pin. According to different applications, the users can choose suitable modules. The FR-2000 I/O module has an FRnet interface. The users can daisy chain several FR-2000 modules together. Via FRnet, the FR-2000 modules can extend the remote I/O control of PC, PAC and PLC easily. Further information about the networking of FR-2053/2057; refer to literature related to I-7188EF, I-8172W, FRB-100/200U. |
|
| |
|
|
|
|
|
| |
|
|
|
|
|
| |
- Built-in Wire-saving FRnet DI/DO control
- High-speed transmission reliability
- Simple synchronization mechanism
- No software overhead on protocol processing
- Supporting broadcasting (1:n data transmission)
- Duplicating output easily
- Fixed I/O scan-time and I/O synchronization
- DIN-Rail mountable
|
|
| |
|
|
|
|
|
| |
|
|
|
|
|
| |
| Digital Input |
| Input Channel |
16 |
| Input Type |
Sink (NPN) |
| On Voltage Level |
+20~24VDC |
| Off Voltage Level |
+3VDC max |
| Input Impedance |
4.7 kOhm |
| Turn-on delay time |
less than 1.0ms |
| Turn-off delay time |
less than 1.0ms |
| Isolation Voltage |
1500Vrms |
| Interface |
| 2-wire cabling |
2-wire cabling Belden 9841 (2P twisted-pair cable),
When different cables are used, the transmission distance may change |
| Transfer distance |
Max. 400m for FR-2053/FR-2053T
Max. 100m for FR-2053HT |
| LED Indicators |
Power, Communication Run, Communication Error, Terminal resistor, Digital output |
| Transfer speed |
250 kbps for FR-2053/FR-2053T
1 Mbps for FR-2053HT |
| Cyclic scan time |
2.88ms for FR-2053/FR-2053T
0.72ms for FR-2053HT |
| Connection |
20-pin header for FR-2053 |
| Removable 20-pin Terminal Block for FR-2053T/FR-2053HT |
| Power |
| Input Voltage Range |
+10 ~ +24 VDC (Non-isolation) |
| Power consumption |
2 W Max. |
| Protection |
Power reverse polarity protection |
| Frame Ground for EMS Protection |
Yes |
| Connection |
5-Pin Removable Terminal Block |
| Mechanical |
| Casing |
Plastic (Flammability UL 94V-0) |

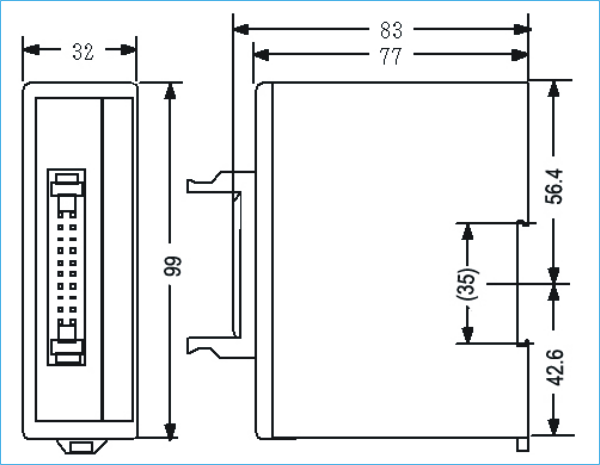

| Dimensions (W x L x H) |
33 mm x 102 mm x 110 mm |
| Installation |
DIN-Rail |
| Mechanical |
| Operating Temperature |
-25¢XC ~ +75¢XC |
| Storage Temperature |
-30°C ~ +85¢XC |
| Ambient Relative Humidity |
10% ~ 90% RH, non-condensing |
|
|
| |
|
|
|
|
|
| |
|
|
| |
|
|
| |
| FR-2053 |
16-channel isolated digital input with 20-pin header |
| FR-2053T |
16-channel isolated digital input module with 20-pin screw terminal connector |
| FR-2053HT |
16-channel isolated digital input module with 20-pin screw terminal connector |
|
|
| |
|
|
|
|
|
| |
|
|
| |
|
|
| |
DN-20
(Pitch:5.08mm) |
DIN-rail mounting terminal board with two CA-2010 cable, 1m |
DN-20-381
(Pitch:3.81mm) |
DIN-rail mounting terminal board with two CA-2010 cable, 1m |
|
|
| |
|
|
| |
|
|
|
|
|
