G-4500D-SIM300: M2M Mini-Programmable Automation Controller with LCD display
G-4500P-SIM300: M2M Mini-Programmable Automation Controller with GPS function
G-4500PD-SIM300: M2M Mini-Programmable Automation Controller with LCD display and GPS function
~NEW~
~NEW~
~NEW~
~NEW~
Model: G-4500-SIM300
Model: G-4500D-SIM300
Model: G-4500P-SIM300
Model: G-4500PD-SIM300
Get to know G-4500 in one minute!
ICP DAS has launched the mini-style G-4500 series. The G-4500 features M2M (Machine to Machine) which is the hottest topic in the 21 century. Instant monitoring, immediate message sharing, quick responding, and so on are becoming the popular issues when speaking of machines. Most importantly, an intelligent, efficient machine effectively lowers your labor cost which always counts the most.
But how are we going to make this happen? G-4500 would tell you!

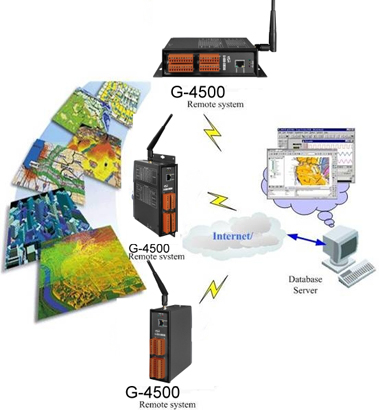

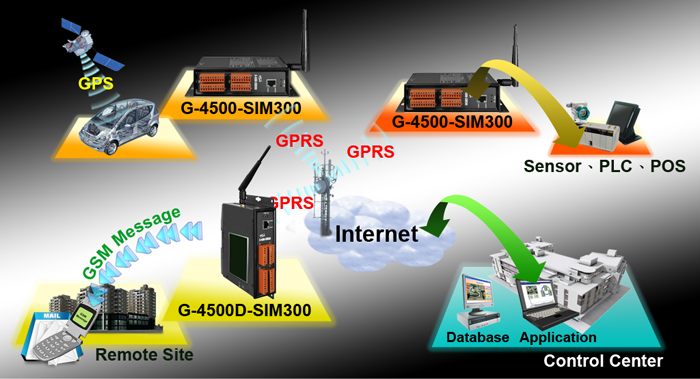

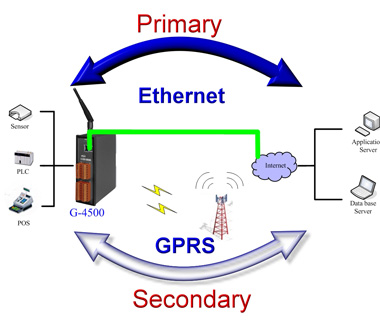

A compact programmable automation controller plus an antenna makes G-4500 born in the world. With built-in GPRS/GSM, G-4500 does more than just working alone by itself. G-4500 not only monitors the data but sends them out in real time to the control center if necessary.

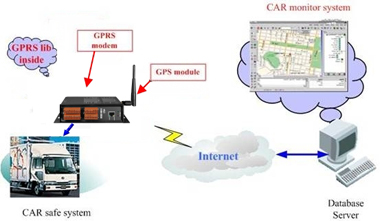

Also, by combining a GPS (optional) with G-4500, G-4500 suddenly becomes a tracking system which you can often find out in the car system, marine system, etc.
Inside G-4500, a high-performance CPU is working over there; outside G-4500, you get the standard interface of an antenna, an Ethernet port, 3 digital inputs, 3 digital outputs, 8 analog inputs, 2 RS-232 COM ports and 1 RS-485 COM port. GPS is optional.
There are two options, G-4500 and G-4500D. G-4500D equips with a 128x64 display for direct data presenting.
Idle: 75 mA @ 24 V; Data Link: 150 ~ 400 mA (peak) @ 24 V(GPRS transmission; GPS receiving)
General environment
Operating temperature
-25 �XC ~ +50 �XC
Storage temperature
-40 �XC ~ +80 �XC
Humidity
5 ~ 95% RH, Non-condensing
System
CPU
G-4500 : 80186, 80 MHz
SRAM
512 Kbytes
Flash Memory
512 Kbytes, Erase unit is 64 Kbytes, 1,000,000 erase/write cycle
OS
MiniOS7 of ICP DAS (64K bytes)
NVSRAM
31 bytes, battery backup, data valid up to 10 years
EEPROM
16 Kbytes, data retention> 40 year. 1,000,000 erase/write cycles
Real time clock
Gives time(sec, min, hour) & date, leap year compensation from 1980 to 2079
Watchdog timer
Yes
Serial ports
COM1
RS-232 : TxD,RxD,RTS,CTS,GND
COM2
RS-485 self-tuner ASIC inside ; D2+, D2-
COM3
RS-232 : TxD,RxD, GND
Ethernet Port
10/100 Base-Tx
DI/DO channel
Input
3 digital input channels Input type : Sink
On Voltage : +3.5 V ~ +30 V
Off Voltage : +1 V max.
Output
3 digital output channels
Output type : Open Collector (NPN)
Load Voltage : +30 V max.
Load Current : 100 mA max.
AI channel
Input
8 analog input
Resolution : 12-bit
Input Range/Type : 0 ~ 20 mA
Sample Rate : 1 kHz max. (Read one channel)
Expand Memory Interface
MMC/SD socket
Data Format : FAT16
Development tool
C programming
Supports TC 1.0~3.0/TC++ 1.0~3.0/BC 2.0/BC++ 3.1~5.02 Provides C Lib functions for GPRS �BDigital I/O�BAnalog input �Bread/write COM Port�BEEPROM�BRTC�BFLASH�BSRAM�Btimer�BWatchdog�AProgram downloaded from PC via COM1
Protocols
Remote I/O
COM2 Supports I-7000 and I-87K remote I/O module
COM1 and COM3 via I-7188 or I-8000 control connect I-7000 and I-87K remote I/O module or PLC or X Boards
User defined protocol
User can write his own protocol
LED light
LED
LED * 3
GPRS/GSM system
GPRS/GSM
GPRS/GSM Tri-band 900/1800/1900 MHz
GPRS multi-slot : class 10/8
GPRS mobile station : class B
GPRS class 10 : Max. 85.6 kbps
CSD up to 14.4 kbps
Compliant to GSM phase 2/2+
-Class 4(2W @ 900 MHz)
-Class 1(1W @ 1800/1900 MHz)
Coding schemes : CS 1, CS 2,CS 3,CS 4
SMS: Text and PDU mode
GPS system
GPS
16 channels with All-In-View tracking
Built-in high gain amplifier and bandpass filter
Cold/Warm Time: 42/35 sec. at open sky and stationary environments.
Reacquisition Time: 0.1 second
Extra high sensitivity: -159dBm
SMA Connector
LCD Display Module
LCM
Character Format: 128*64 Dots
Dot size (W x H): 0.48 x 0.48 mm
Dot pitch (W x H): 0.52 x 0.52 mm
Module dimension (W x H x T): 93 x 70 x 1.6 mm
Effective display area (W x H): 80.61 x 14.37 mm
Viewing direction: 12 O��clock
Lcd type : STN(Y-G), Positive, Transflective
Life Time : Expected life is more than 100,000 hours under normal operating condition
