ICP DAS New ProductĄGI-8123W CANopen Master Module

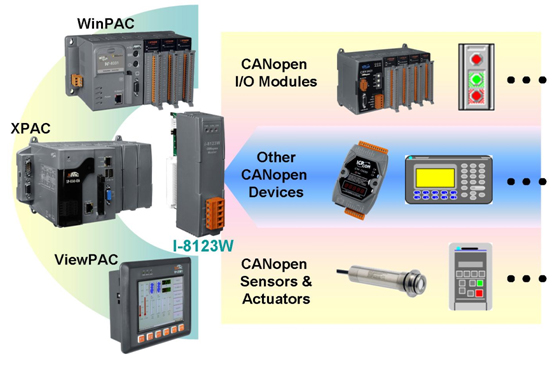

CANopen, a simple and open network, efficiently reduces both wiring cost and system configuration process. Based on CANopen standard, users can quickly integrate the CANopen slaves comes from the different manufacturers all over the world. Through the ICP DAS new CANopen Master module, I-8123W expands one-port CANopen master interface on ViewPAC and WinPAC MCU (main control unit) to implement an complete CANopen network. In addition, the I-8123W also provides the CANopen slave functions for other CANopen masters to obtain the IO data of the ViewPAC and WinPAC MCU. By combining the features of the I-8123W with ViewPAC and WinPAC MCU, ICP DAS give a more efficient control method and flexible application architecture.

The I-8123W built-in with its own CPU. This will effectively reduce the loading of the CPU of ViewPAC or WinPAC MCU, and provide high real-time communication capability in the CANopen network. In order to support various development environments, we provide many demos by embedded Visual C++ 4.0, VB.NET and C#.NET for users. These are very useful to understand the operation procedures of the I-8123W and quickly to implement the CANopen master in a CANopen network. Different from the I-87123, the I-8123W use parallel communication method. This will enhance the communication speed between MCU and the I-8123W. By the full range of the CANopen slaves and gateways products from ICP DAS, you can simply set up a flexible CANopen control system to communicate other sensors and actuators with different protocols.

I-8123W Features:
  • Provide drivers for ViewPAC and WinPAC MCU.
  • Programmable transfer-rate for 10, 20, 50, 125, 250, 500, 800, and 1000 kbps.
  • Support up to 127 slave node (the CAN bridge or repeater may be needed).
  • Support Node Guarding Protocol and Heartbeat Consumer Protocol.
  • Provide max 5 SYNC messages sending at the same time.
  • Allow to configure the parameters of the dynamic PDO, event timer, and transmission type.
  • Programmable Master Node ID for the CANopen slave function.
  • Provide master listen mode for monitor the CANopen network.
  • Support the interrupt service function for EMCY, Node Guarding Event and Heartbeat Event.
  • Provide scan function to scan all nodes on the same CANopen network.
  • On-line adding and removing devices
  • Provide eVC++, VB.NET, and C# .NET demos

The comparison list of I-8123W and I-87123:
Item I-8123W I-87123
Communication interface for module slot Parallel bus Serial bus
Performance High Medium
EMCY/Guarding/Heartbeat event process Interrupt Polling
Driver support WinPAC
ViewPAC
WinPAC
ViewPAC
LinPAC
CANopen slave function Yes No

For more information about the I-8123W, ViewPAC, WinPAC, and other CANopen products, please visit the following websites.

I-8123W: http://www.icpdas.com/products/Remote_IO/can_bus/i-8123w.htm
ViewPAC: http://www.icpdas.com/products/PAC/viewpac/introduction.htm
WinPAC: http://www.icpdas.com/products/PAC/winpac/introduction.htm
All CANopen products: http://www.icpdas.com/products/Remote_IO/can_bus/can_list.htm#2
