ICP DAS HMI Solution ¡V TouchPAD series

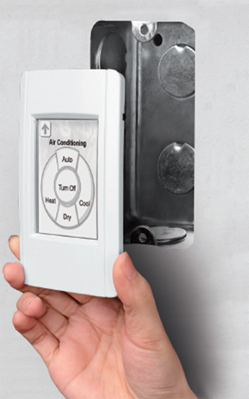

Along with the rapid progress in technology, people want to interact with the facilities or electrical devices in a simple way. Therefore, HMI device such as digital displayer is playing a more and more important role in prevailing Human Machine Interaction. The industrial control products leader, ICP DAS, has officially launched a series of rugged home/building automation products which conform to industrial specifications - TouchPAD. The TouchPAD series is a brand-new controller with 2.8¡¨ high resolution TFT color touch screen and outlined with the same size to fit in regular electrical wall-mount outlet.

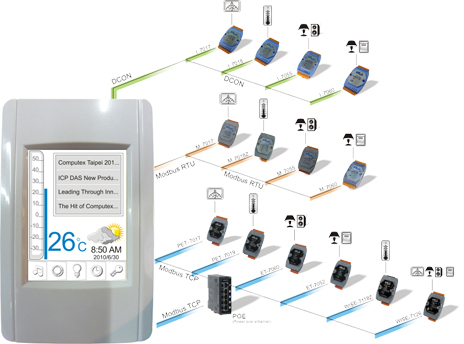

Furthermore, by various communication ways, such as Modbus TCP protocol, TouchPAD can be linked to the WISE/ET-7000/ PET-7000/ I-7000/ M-7000 series modules and integrates with SCADA software easily. Users can real-timely monitor the status of facilities or electrical devices from the displayer of TouchPAD.

To accomplish the real Human Machine Interface (HMI) requirements, not only touch sensor technology, but the GUI tools are also required. The conventional GUI tool is difficult to implement so that the users have to invest a lot of efforts, time and money to learn and develop their own application. To solving this annoying problem, ICP DAS provides HMIWorks, the free dedicated developing tool for TouchPAD which provides plenty of widgets and templates to help users complete all the development jobs. Under the WYSIWYG (What You See Is What You Get) design concept, HMIWorks can totally satisfy the requirements for users.

Features:
  • "2.8" high resolution TFT color touch screen
  • Free GUI developing tool, HMIWorks with WYSIWYG (What You See Is What You Get) design concept
  • Supports PoE(Power over Ethernet) function
  • Supports RS-485 interface (TPD-280-W) or Ethernet interface (TPD-283-W)
  • Supports the most popular C/C++ language
  • Supports Ladder Designer
  • Supports Modbus TCP protocol to remotely control I/O modules and integrate with SCADA software
  • Operating Temperature: -20 ~ 70¢XC

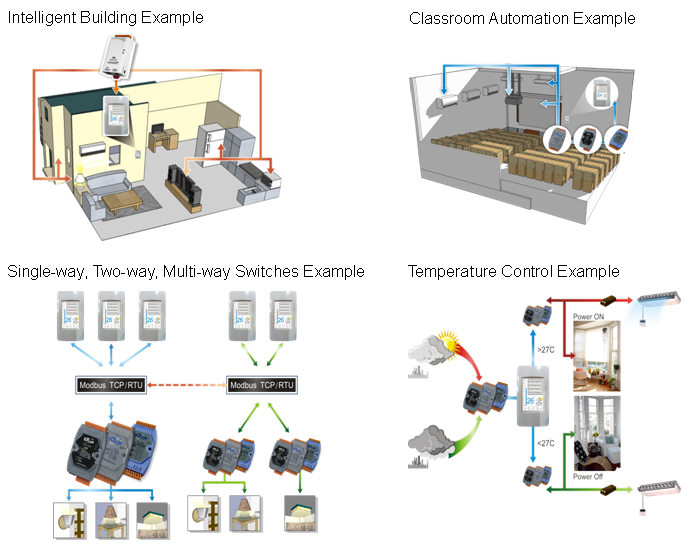

Applications:

Specifications:

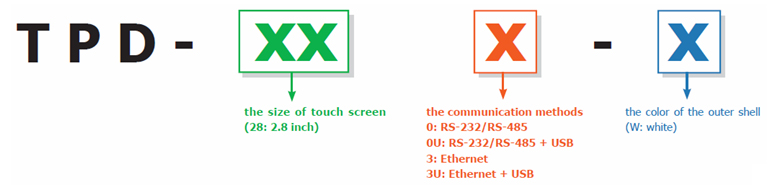

Models TPD-280-W TPD-280U-W TPD-283-W TPD-283U-W
Hardware
CPU Lower-power 32-bit RISC CPU
Memory Expansion - SDRAM 16 MB/Flash 16 MB - SDRAM 16 MB/Flash 16 MB
Communication Method RS-485 Ethernet (10/100 Mbps)
LCD 2.8¡¨ TFT (Resolution 240 x 320 x 16)
Touch Panel Yes
Buzzer Yes
Rotary Switch (0~9) Yes
USB Client 1.1 - Yes - Yes
Reset Button Yes
Electrical
Power +10 ~ 30 VDC PoE (IEEE 802.3af, Class 1)
Mechanical
Dimension (W x L x H) 76 mm x 119 mm x 33 mm 76 mm x 119 mm x 31 mm
Ingress Protection Front panel: IP65
Wall Mount Yes
Environmental
Operating Temperature -20 ~ +70 ¢XC
Storage Temperature -30 ~ +80 ¢XC
Ambient Relative Humidity 10 ~ 90% RH, non-condensing

Related Links and Downloads
To get more information of TouchPAD, please visit http://www.icpdas.com.tw/product/solutions/hmi_touch_monitor/touchpad/tpd-280.html,
http://ftp.icpdas.com/pub/beta_version/HMIWorks_Standard/
Or mail to info@icpdas.com , sales2@icpdas.com , we¡¦d love to offer you any supports!
