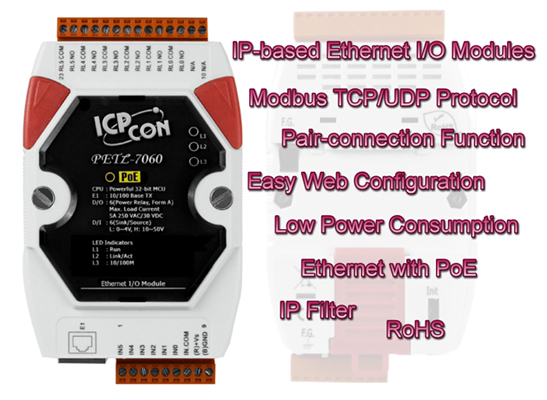

The PETL-7060 is an IP-based Ethernet I/O monitoring and control module. The module can be remotely controlled through a 10/100 M Ethernet network by using Modbus TCP/UDP protocol. Modbus communication has become a de facto standard protocol in industry field, and is one of the most commonly of connection interfaces for industrial electronic devices. This makes the PETL-7060 perfectly to integrate with the HMI, SCADA, PLC and other software systems.

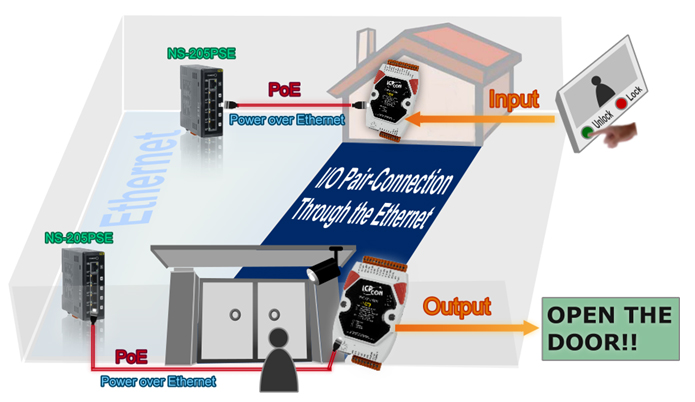

The PETL-7060 Ethernet I/O module supports photo-isolated digital input and form-A power relay output. The module can be used to create DI to DO pair-connect through the Ethernet. After configuration, the PETL-7000 series module can poll the status of the local DI channels and then use the Modbus/TCP protocol to continuously write to the remote DO devices.

"Built-in Web server"

The PETL-7000 series features a powerful 32-bit MCU to enable efficient handling of network traffic. It also has a built-in web server that provides an intuitive web management interface to users for modifying the settings of the module including DHCP/Static IP, gateway/mask and serial ports.

"Built-in Dual Watchdog"

The module provides dual watchdog: CPU watchdog and host watchdog. The CPU watchdog which automatically resets the CPU if the built-in firmware is operating abnormally, while the host watchdog set the digital output with predefined safe-value when there is no communication between the module and the host (PC or PLC) for a period of time (watchdog timeout). The dual watchdog is an important feature that ensures the module operates continuously, even in harsh environments.

"Low Power Consumption"

The PETL-7000 series module offers true IEEE 802.3af-compliant (classification, Class 1) Power over Ethernet (PoE) using a standard category 5 Ethernet cable to receive power from a PoE switch such as the NS-205PSE. If there is no PoE switch on site, the module will also accept power input from a DC adapter. The PETL-7000 series is designed for ultra-low power consumption, reducing hidden costs from increasing fuel and electricity prices, especially when you have a huge amount of modules installed. Reducing the power consumption by choosing PETL-7000 series will have a positive contribution to environment.
