New Application for ISaGRAF PAC
Soft-GRAF HMI Designer – Creat a colorful HMI in the ISaGRAF PAC

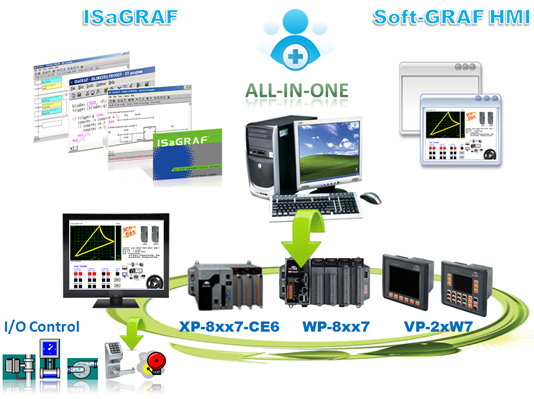

Based on the popular ISaGRAF software, Soft-GRAF is an add-on HMI designer developed by ICP DAS. This evolutionary Soft-GRAF provides abundant HMI graphic objects, just a few simple parameters setting to realize the flexible and colorful HMI. Moreover, you can also add the new HMI graphic objects to any existed projects through the function menu of ISaGRAF software. Now, you just need only one ISaGRAF software to achieve both HMI and control logic design.

Features:

All-in-one Design:
Design the control logic and HMI by single ISaGRAF software.
Support various and colorful HMI objects:
- Page (Max. 200, support password security)
- Numeric (Input, input security, display)
- Text (Dynamic/static text display)
- Picture (Animated/static picture display)
- Moving Trace (1-axis or 2-axis)
- Built-in various objects (Will be more)

Multi-language:
English, Traditional Chinese, Simplify Chinese, etc.
HMI behave smoothly

Information and links:

For more information, refer to FAQ 131:
www.icpdas.com > FAQ > Software > ISaGRAF Ver.3 (English) - 131
Soft-GRAF : Create A Colorful HMI in The XP-8xx7-CE6 and WP-8xx7 and VP-2xW7 PAC
The following ISaGRAF drivers support the Soft-GRAF:
XP-8xx7-CE6      : Ver. 1.07 or later
WP-8x37/8x47    : Ver. 1.28 or later
VP-25W7/23W7  : Ver. 1.19 or later

The latest version of ISaGRAF driver:
http://www.icpdas.com/products/PAC/i-8000/isagraf-link.htm.
