ICP DAS New Product:

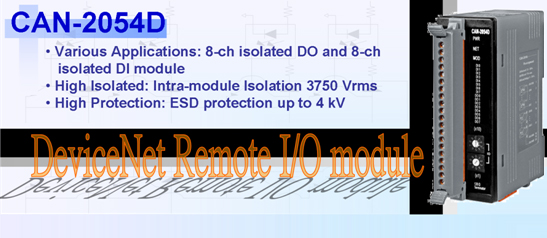

CAN-2054D : DeviceNet Slave Module with 8-ch isolated DO output and 8-ch isolated DI input

Introduction:
DeviceNet is one kind of the network protocols based on the CAN bus and mainly used for embedded network of machine control, such as industrial machine control , aircraft engines monitoring, factory automation, medical equipments control, remote data acquisition, environmental monitoring, and packaging machines control, etc.

The CAN-2054D module follows DeviceNet specification Volume I/II, Release 2.0. You can access the CAN-2054D digital I/O status and set the configuration by using standard DeviceNet protocol. Moreover, we provide the standard DeviceNet EDS file for the CAN-2054D. Therefore, you can use it with standard DeviceNet master easily by applying the EDS file. The CAN-2054D has 8-channel isolated sink/source input and 8-channel isolated sink output and it can be used to various applications, such as PNP, NPN, TTL, relay contact and so forth.

By owing to the DeviceNet masters of ICP DAS, you can quickly build a DeviceNet network to approach your requirements. We provide several kinds of DeviceNet master solutions, such as embedded system, PCI and PCIe cards, PCI 104 solutions, and USB modules. For more information about DeviceNet products of ICP DAS, please refer to the following web site. http://www.icpdas.com/products/Remote_IO/can_bus/can_list.htm#3...

Hardware Feature:
  • 8-channel isolated digital input and 8-channel isolated digital output module
  • ESD Protection 4 kV, Contact for each channel.
  • Intra-module Isolation 3750 Vrms
  • Provide DIP switch for the 120 £[ terminator resistor of CAN bus
  • Operating temperature -25 ~ +75 ¢J

DeviceNet Features:
  • Comply with DeviceNet specification Volume I/II, Release 2.0
  • "Group 2 Only Server" DeviceNet subscriber
  • Support DeviceNet heartbeat and shutdown messages
  • Connection support:
    1 connection for Explicit Messaging
    1 connection for Polled I/O
    1 connection for Bit-Strobe I/O
  • DeviceNet Node ID and baud rate setting by rotary switch
  • Provide EDS file for master interface.
  • LED display for power, DeviceNet network status, the status of terminator resistor and the status of DI/DO channels

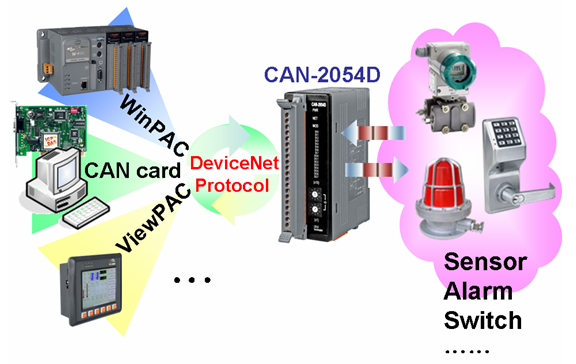

Applications:

For more detail information, please refer to the following website.
CAN-2054D web site http://www.icpdas.com/products/Remote_IO/can_bus/can-2054d.htm
Download CAN-2054D Data sheet http://www.icpdas.com/products/Remote_IO/can_bus/datasheet/can-2054d.pdf
DeviceNet series product web site http://www.icpdas.com/products/Remote_IO/can_bus/devicenet_series.htm
