ICP DAS New Product:
CAN-2088D
DeviceNet Slave Module with 8-Channel PWM and 8-Channel High Speed Counter |
|
|
|
|
|
|
|
|
|
|
|
Introduction: |
|
|
PWM (Pulse width modulation) is a powerful technique for controlling analog circuits. By using digital outputs, it can generate a waveform with variant duty cycle and frequency to control analog circuits. CAN-2088D, a CAN bus remote I/O modules with DeviceNet protocol, provides 8 PWM output channels and 8 digital inputs channels with high-speed counter function. It can be used to develop practical and economical analog control systems. |
|
|
|
|
|
Hardware Features: |
|
|
- Automatic & software-independent PWM outputs by hardware
- PWM output frequency: 0.2 Hz ~ 500 kHz with 0.1%~99.9% duty cycle

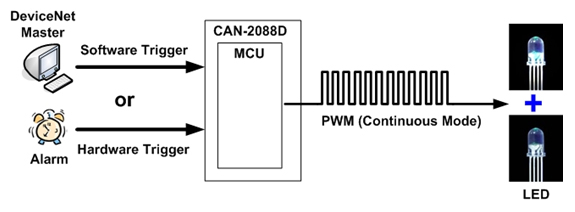

- PWM Output Modes: software trigger / hardware trigger
- Individual or synchronous PWM output: With software trigger mode, Users can trigger all of the PWM channels one by one or at the same time

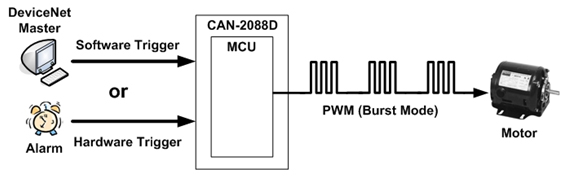

- Burst mode PWM operation can be used as the standby signal
- DI channels can be used simply as digital input channels or interactive with PWM outputs as hardware trigger sources

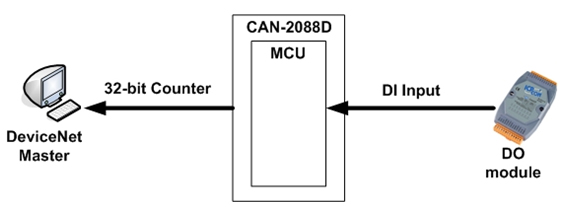

- DI channels can be high-speed counter
|
|
|
|
|
|
DeviceNet Features: |
|
|
- Comply with DeviceNet specification Volume I/II, Release 2.0
- "Group 2 Only Server" DeviceNet subscriber
- Support DeviceNet heartbeat and shutdown messages
- Connection support:
1 connection for Explicit Messaging
1 connection for Polled I/O
1 connection for Bit-Strobe I/O
- DeviceNet Node ID and baud rate setting by rotary switch
- Provide EDS file for master interface.
- PWR, NET, MOD, PWM, and DI LED indicators
|
|
|
|
|
|
Applications: |
|
|
ĦE Position/speed control for motors |
|
|
|
|
|
|
|
|
ĦE Brightness control for lamps |
|
|
|
|
|
|
|
|
ĦE High speed counter input |
|
|
|
|
|
|
|
|
For more detail information, please refer to the following website.
CAN-2088D web site http://www.icpdas.com/products/Remote_IO/can_bus/can-2088d.htm
Download CAN-2088D Data sheet http://www.icpdas.com/products/Remote_IO/can_bus/datasheet/can-2088d.pdf
DeviceNet series product web site http://www.icpdas.com/products/Remote_IO/can_bus/devicenet_series.htm |
|
|
|
|
|
|
|
