ICP DAS New Product: GW-7228 (J1939/Modbus RTU Slave Gateway)

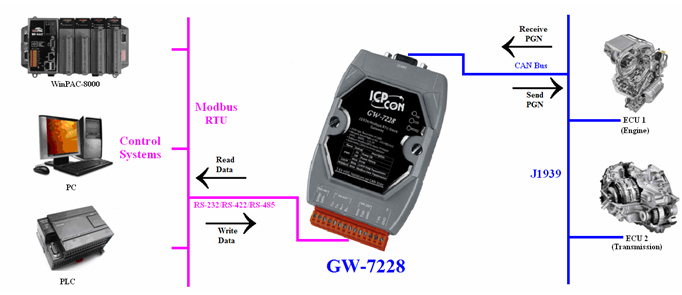

The GW-7228 is a new J1939 Gateway which supports J1939 and Modbus RTU protocols. It allows the Modbus RTU Master devices to access the J1939 network. The Modbus RTU Master devices could be a PC¡BPLC and the ICP DAS PACs (e.g. WinPAC, XPAC, ViewPAC, iPAC), etc. By using the GW-7228, users can easily connect to the J1939 network through the Modbus RTU protocol. Moreover, with isolation design, the GW-7228 can be applied in various harsh environments and it can also be used easily to integrate data collection and control system of vehicles, etc.


Features:
  • RoHS Design
  • Transmission and reception of all types of J1939 messages, including PDU1, PDU2, broadcast and destination specific
  • J1939 Transport Protocol for transmission and reception of large messages (9 - 1785 bytes)
  • Support BAM of Connection Management Message
  • Support Network addresses management
  • Support RS-232, RS-485 and RS-422 interfaces
  • Support Modbus RTU slave protocol
  • 2500 Vrms Isolation Protection for CAN network
  • Provide PWR/J1939/MODBUS indication LEDs
  • Built-in jumper to select 120 ohm terminal resister for CAN bus
  • Watchdog inside

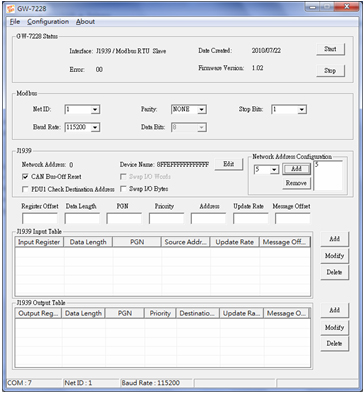

  • Support Utility tool for users to quickly configure the module


ICP DAS Fieldbus Gateways Comparison Table:
  GW-7228 GW-7433D I-7231D I-7232D I-7241D I-7242D
Support Protocol J1939 CANopen Master CANopen Slave CANopen Slave DeviceNet Slave DeviceNet Slave
Modbus RTU Slave Modbus
TCP server/RTU Slave
DCON Master Modbus RTU Master DCON Master Modbus RTU Master
Comm. Interface RS-232
RS-422
RS-485
RS-232
RS-485
Ethernet
RS-232
RS-485
RS-232
RS-485
RS-232
RS-485
RS-232
RS-485

  I-7243D GW-7243D GW-7552 GW-7553 HART-710
Support Protocol DeviceNet Master DeviceNet Slave PROFIBUS
DP-V0 Slave
PROFIBUS
DP-V0 Slave
HART Master
Modbus TCP server Modbus TCP/RTU/
ASCII Master
Modbus RTU/
ASCII Master/Slave
Modbus TCP/RTU/
ASCII Master/Slave
Modbus RTU/
ASCII Slave

Comm. Interface Ethernet RS-232
RS-485
Ethernet
RS-232
RS-422
RS-485
RS-232
Ethernet
RS-232
RS-422
RS-485


For more information about the product, please refer to the following website: http://www.icpdas.com/products/Remote_IO/can_bus/gw-7228.htm
Related Fieldbus products: http://www.icpdas.com/products/Remote_IO/can_bus/can_intro.htm
