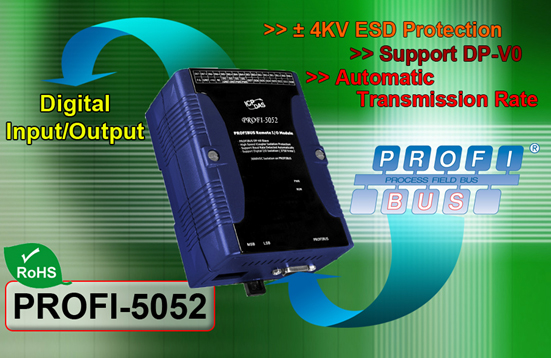

ICP DAS's Product: PROFIBUS Remote I/O Module ¡V PROFI-5052

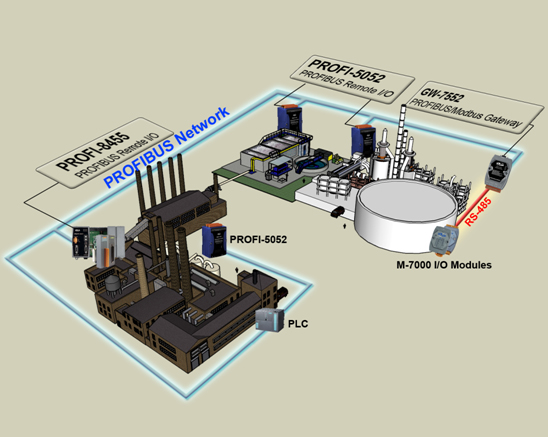

PROFIBUS is an opened, digital communication system with a wide range of applications, particularly in the fields of factory and process automation. PROFIBUS is suitable for both fast, time-critical applications and complex communication tasks. The PROFI-5052 is one of the PROFIBUS DP series products produced by ICP DAS. It provides the PROFIBUS DP communication protocol with any DP-Masters. The PROFI-5052 provides ¡Ó4KV ESD protection for all terminals (include I/O Terminals and PROFIBUS connector). By applying the PROFI-5052, users can easily establish a PROFIBUS DP network with other DP-Masters. It is ideal for building automation, remote data acquisition, environment control and monitoring, laboratory equipment & research, factory automation, etc.


Features:
  • Support for PROFIBUS DP-V0 protocol
  • Up to 12Mbps transmission rate
  • Detect transmission rate automatically.
  • Built-in Host Watchdog timer
  • Built-in PWR and RUN LED indicators
  • 2500 Vrms High Speed iCoupler isolation protection on PROFIBUS network
  • 3000 VDC power isolation protection
  • ¡Ó4KV ESD Protection for all terminals
  • Wide range of power input (DC 10 ~ 40 VDC) and operating temperature (-25¢XC~+75¢XC)

Item DO DI
channel type Isolation channel type Isolation
PROFI-5055
(NEW)
8 Sink(O.D.) YES 8 Wet Contact YES
PROFI-5060
(NEW)
4 Form-C YES 8 Wet Contact YES
PROFI-5051
(NEW)
N/A N/A N/A 24 Wet Contact YES
PROFI-5050
(NEW)
8 Sink(O.C.) NO 16 Dry Contact NO
PROFI-5045
(NEW)
24 Sink(O.C.) YES N/A N/A N/A
PROFI-5052
(NEW)
N/A N/A N/A 12 Wet Contact YES (5000Vrms)
PROFI-5053
(NEW)
N/A N/A N/A 24 Dry Contact NO

Datasheet Download: http://www.icpdas.com/products/Industrial/profibus/datasheet/profi-5052.pdf
For more information, please refer to http://www.icpdas.com/products/Industrial/profibus/profi-5052.htm
Related Product http://www.icpdas.com/products/Industrial/profibus/profi_intro.htm
