ICP DAS New Product Release: PCI-1802LU/1802HU
Universal PCI, 32-Channel, 12-bit, 330 kS/s or 44 kS/s Low Gain Multi-function DAQ Board(8 k Word FIFO)


Introduction:

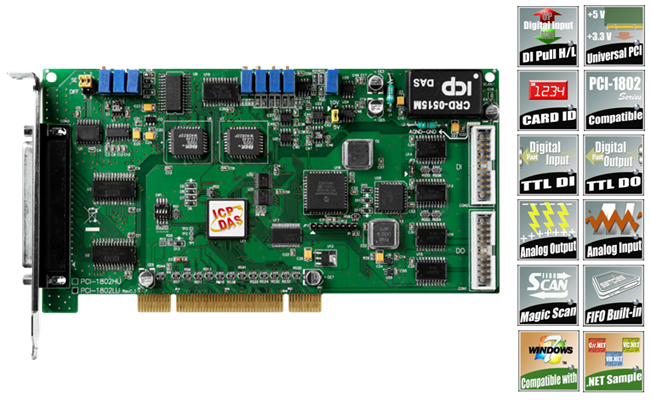

The PCI-1802LU/1802HU card is the new generation product that ICP DAS provides to meet RoHS compliance and the new PCI-1802LU/HU card is designed as a drop-in replacement for the PCI-1802L/1802H.

PCI-1802LU/1802HU is a high performance multifunction card providing high-speed analog I/O and digital I/O functions. The PCI-1802LU/1802HU has a universal PCI interface supporting both 3.3 V and 5 V PCI bus, and it features a continuous, 330 k Samples/Sec or 44 k Samples/Sec 12-bit resolution A/D converter, 8 K samples hardware FIFO, a MagicScan controller (for multi-channel scan), 2-ch 12-bit D/A converter, 16-ch digital input and 16-ch digital output. PCI-1802LU/1802HU provides either 32-ch single-ended or 16-ch differential analog inputs which are jumper selectable, and a programmable high speed PGA is equipped for gain controls (0.5/1/2/4/8 for Low Gain,0.5/1/5/10/50/100/500/1000 for High Gain).

The PCI-1802LU/HU also adds a Card ID switch and pull-high/low resisters for DI on board. Users can set Card ID on a board and recognize the board by the ID via software when using two or more PCI-1802LU/1802HU cards in one computer. The pull-high/ pull-low resisters are used to specify the DI status; when the DI channels are unconnected, the DI status will remain in predefined status without being left floating.

The PCI-1802LU/1802HU software is fully compatible with the PCI-1802L/1802H. Therefore, users can directly use the new PCI-1802LU/1802HU series card without modifying their software. The PCI-1802LU/1802HU software supports various OS such as Linux, DOS, Windows 98, Windows 2000, Windows NT and Windows XP/2003/Vista/2008/7 32/64-Bit. It also provides the DLL ,ActiveX control, and various language sample programs of Turbo C++, Borland c++, Microsoft C++, Visual C++, Borland Delphi, Borland C++ Builder, Visual Basic, C#.NET, Visual Basic.NET and LabVIEW to help users to quickly and easily develop their applications.

Feature & Special:
  • Universal PCI interface, supports both +5V and +3.3V PCI bus.



  • Card ID function: Users can set Card ID to recognize sequence of card when using two or more I/O cards of the same model in one computer.



  • Digital input status can be set to pull-high or pull-low; when the digital input channels are unconnected, the status will hold in predefined status. (non-floating)



  • 16 digital- input channels
  • 16 digital-output channels
  • DIO response time is about 0.77 £gs (1.3 MHz max.)



  • 2 channels, 12-bit analog output



  • 12-bit high resolution, 330 or 44 k Hz A/D converter
  • 32 single-ended/16 differential analog inputs
  • Programmable low gain:0.5/1/2/4/8
  • Programmable low gain:0.5/1/5/10/50/100/500/1000
  • Built-in 8 k WORD FIFO
  • Magic scan: Magic scan will automatically change the channel according to the user setting to capture analog input.
  • Supports internal/external trigger
  • Three external trigger modes: post-trigger, pre-trigger, middle trigger



  • Fully compatible with the PCI-1802 series product including software and hardware.



  • Supports .NET program
  • Provides Microsoft Visual C#.NET 2005 sample programs
  • Provides Microsoft Visual Basic.NET 2005 sample programs
  • Provides Turbo C++, Borland C++, Microsoft C++ sample programs
  • Provides Visual C++, Borland Delphi, Borland C++ Builder, Visual Basic and LabVIEW sample programs



  • Supports Microsoft Windows 7 32/64-bit version OS
  • Supports Windows 98/NT/2000 and XP/2003/Vista/2008 32/64-bit version OS


More information, please refer to¡K
http://www.icpdas.com/products/DAQ/pc_based/pci_1800.htm
