ICP DAS New Product Release: PCI-D64HU
Universal PCI, 40 MB/s, 64 channels High speed Digital I/O Board |
|
|
|
|
|
|
|
|
|
|
|
Introduction: |
|
|

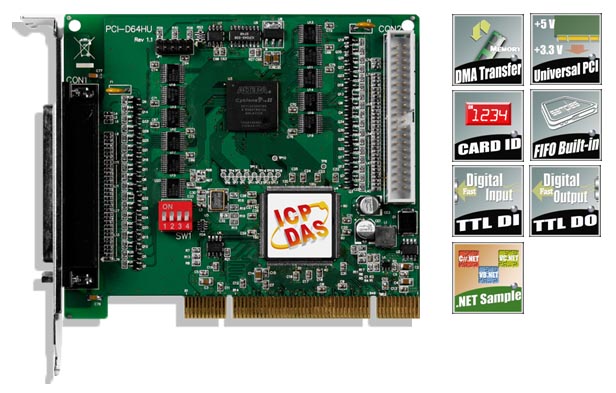

PCI-D64HU card is new generation product with RoHS compliance and supports 3.3 V/5 V PCI Bus and provides 32-CH TTL digital input, 32-CH TTL digital output.

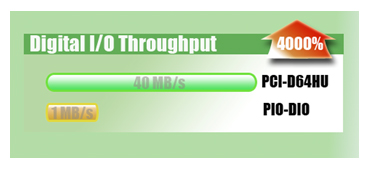

PCI-D64HU support the 2-CH bus-mastering DMA and built-in 1 k/2 k DWORD FIFO for DI/DO respectively, the maximum data transfer rate can be up to 40 MB per second. Four digital I/O control modes are supported:
- Direct programmed I/O control:
Direct read/write the I/O port address to control Digital I/O.
- Timer pacer control:
Digital I/O is triggered by pacer clock (on board) and transfer data by the bus mastering DMA automatically.
- External clock mode:
Use the external signal (I_REQ) to trigger the Digital Input and transfer data by the bus mastering DMA automatically.
- Handshaking mode:
Use the handshaking signal REQ and ACK to transfer the data.
PCI-D64HU has High-performance Scatter/Gather DMA function. It can process multiple memory regions at single DMA operation. PCI-D64HU also adds a Card ID switch for recognizing multiple cards in the same computer by reading the ID via software. |
|
|
|
|
|
Feature & Special: |
|
|
- Universal PCI interface, supports both +5V and +3.3V PCI bus.
|
|
|
|
|
|
|
|
|
|
- Card ID function, users can set Card ID to recognize multiple cards in the same computer by reading the ID via software.
|
|
|
|
|
|
|
|
|
|
- 2 channels bus mastering scatter/gather DMA
- Support 4 I/O control modes: Direct program control, Internal timer pacer, External clock (DI only) and Handshaking.
|
|
|
|
|
|
|
|
|
|
- 32 channels TTL digital Input
- 32 channels TTL digital output
- DIO response speed is 10 MHz (max.)
|
|
|
|
|
|
|
|
|
|
- Built-in 1 k DWORD FIFO for DI respectively
- Built-in 2 k DWORD FIFO for DO respectively
- DO support ring buffer mode
|
|
|
|
|
|
|
|
|
|
- Support .NET program
- Provide Microsoft Visual C#.NET 2005 sample programs
- Provide Microsoft Visual Basic.NET 2005 sample programs
- Provide Visual C++, Borland C++ Builder, Visual Basic sample programs
|
|
|
|
|
|
|
|
|
|
- Support Windows 2000 and XP/2003 32-bit version OS
- Programmable input digital filter for all input signals including handshaking and trigger signals
- Double side SMD, short card.
|
|
|
|
|
|
|
|
|
For more information, please refer to¡K http://www.icpdas.com/products/DAQ/pc_based/pci-d64hu.htm |
|
|
|
|
|
|
|
