ICP DAS New Product Release: PCI-822/826LU
Universal PCI, 32-Channel, 250 kS/s,12-bit(16-bit) analog input,
16-bit analog output, Low Gain Multi-function DAQ Board(8 k Word FIFO) |
|
|
|
|
|
|
|
|
|
|
|
Introduction: |
|
|

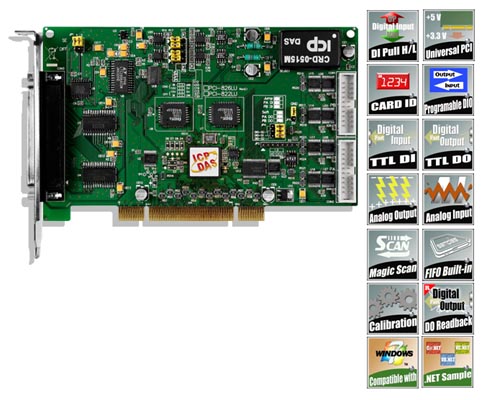

PCI-822/826LU card is new generation product that ICP DAS provides to achieve RoHS compliance. PCI-822/826LU is a high performance multifunction card providing high-speed analog I/O and digital I/O functions. PCI-822/826LU card has an universal PCI interface supporting both 3.3 V and 5 V PCI bus. This card features a continuous, 250 k Samples/Sec 12-bit(16-bit) resolution A/D converter,8K samples hardware FIFO, 2-ch 16-bit D/A converter, 32-ch programmable digital I/O and DO readback. PCI-822/826LU provides either 32-ch single-ended or 16-ch differential analog inputs which are jumper selectable. PCI-822/826LU is equipped with a high speed PGA featuring programmable gain controls (1, 2, 4, 8).
PCI-822/826LU provides software calibration instead of manual calibration so that no jumpers and trim-pots are required anymore. The calibration data can be saved in the EEPROM for long-term use. It also has the Card ID switch and pull-high/pull-low resisters for DI on board. Users can set a card ID for each card so that when more than two PCI-822/826 LU boards are used in a computer at the same moment, users can still instantly recognize them one by one. The pull-high/pull-low resisters allow specifying the DI status; when the DI channels are unconnected, the DI status will remain in high or low status rather than floating.
PCI-822/826LU provides two programmable trigger methods: software trigger and pacer trigger. The A/D channel scan function of PCI-822/826LU is so amazing, we call it MagicScan. The MagicScan controller takes out most works of getting A/D value such as select channel, set gain, settling time, trigger ADC and get data. With the built-in MagicScan and interrupt features, it is effectively off-loading your CPU from the job. Even in channel scan mode, it can have different gain code for each channel, and the sampling rate can still reach 250 kS/s totally. PCI-822/826LU is suitable for the demands of high end applications.
PCI-822/826LU software supports various OS such as DOS, Windows 2000, Windows XP 32-Bit, Vista 32-Bit and 32-Bit Windows 7. It also provides the DLL, and various language sample programs of Turbo C++, Visual C++, Borland Delphi, Borland C++ Builder, Visual Basic, C#.NET, Visual Basic.NET to help users to quickly and easily develop their applications. |
|
|
|
|
|
|
|
|
|
|
|
Feature & Special: |
|
|
- Universal PCI interface, supports both +5V and +3.3V PCI bus.
|
|
|
|
|
|
|
|
|
|
- Card ID function, users can set Card ID to recognize sequence of card when users have two or more I/O cards of the same model.
|
|
|
|
|
|
|
|
|
|
- Digital input status can be set to pull-high or pull-low; when the digital input channels are unconnected, the status will hold in high or low status. (non-floating)
|
|
|
|
|
|
|
|
|
|
- 32-CH programmable DIO
- Used Jumper or software setting to configure the DIO
- DIO response time is about 0.77 £gs (1.3 MHz max.)
- Support the DO Readback function
|
|
|
|
|
|
|
|
|
|
- 2 channels, 16-bit analog output
- Voltage output range:+/-10 V, +/-5 V, 0 ~ 10 V and 0 ~ 5 V
|
|
|
|
|
|
|
|
|
|
- 12-bit high resolution, 250 k Hz A/D converter for PCI-822LU
- 16-bit high resolution, 250 k Hz A/D converter for PCI-826LU
- 32 single-ended/16 differential analog inputs
- Programmable low gain:1/2/4/8
- Built-in 8 k WORD FIFO
- MagicScan: MagicScan will automatically change the channel according to user setting to capture analog input.
- Support internal/external trigger
- Three different external trigger mode: post-trigger, pre-trigger, middle-trigger
|
|
|
|
|
|
|
|
|
|
- Software calibration, the calibration is performed under software control eliminating manual trim-pot adjustments
|
|
|
|
|
|
|
|
|
|
- Support .NET program
- Provide Microsoft Visual C#.NET 2005 sample programs
- Provide Microsoft Visual Basic.NET 2005 sample programs
- Provide Turbo C++ sample programs
- Provide Visual C++, Borland Delphi, Borland C++ Builder, Visual Basic sample programs
|
|
|
|
|
|
|
|
|
|
- Support 32-bit Microsoft Windows 7 version OS
- Support Windows 2000 and XP/2003/Vista 32-bit version OS
|
|
|
|
|
|
|
|
|
For more information, please refer to¡K PCI-822LU: http://www.icpdas.com/products/DAQ/pc_based/pci-822.htm
PCI-826LU: http://www.icpdas.com/products/DAQ/pc_based/pci-826.htm |
|
|
|
|
|
|
|
