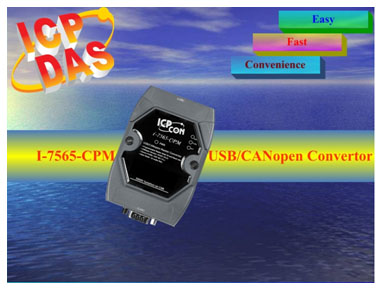

ICP DSA NEW Product :I-7565-CPM USB/CANopen Master Conterver Module

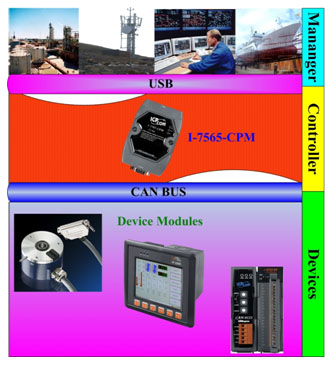

ICP DAS releases a USB/CANopen Master Conterver, the I-7565-CPM. It¡¦s a standard CANopen protocol and build-in a cpu of 80186 80MHz to run I-7565-CPM firmware independently. I-7565-CPM provides a set APIs that will be easy programr to controll device by user. And it will resoult the problem of anxiety and complexity of protocol for user. it can communication between computer and I-7565-CPM¡¦s USB interface to remote the device easily and fastily, Due to I-7565-CPM has a interface of usb, so it become a move-station to create the CANopen system effectively. More infomation please to refer to web side. http://www.icpdas.com/products/Remote_IO/can_bus/can_list.htm

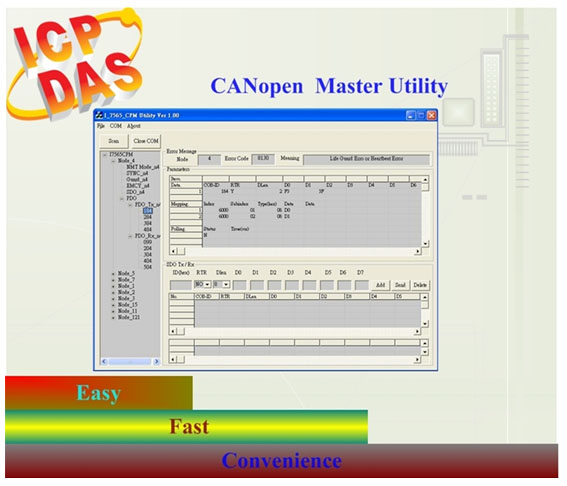

With the free GUI tool, I-7565-CPM utillity. User can manage and integrate CANopen slave device easily, so when you are planning or developing CANopen network applications, I-7565-CPM utility could help you to scan devices within the network and check the connection status of each device on the remote site.

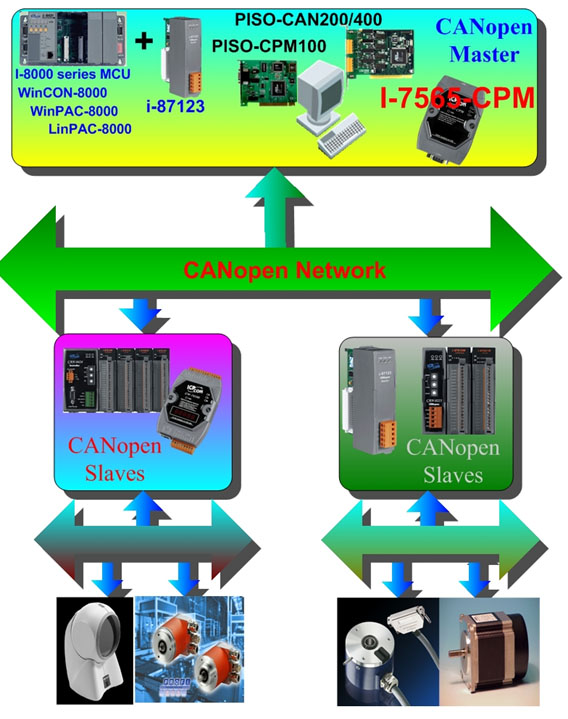

I-7565-CPM of ICP DAS is not only easily to controll CANopen slave but also to create the CANopen system faster and more stable. Also reducing the creation time of operation system. The typlical application for the CANopen network is presented below.
Features:
  • CPU : 80186, 80MHz
  • CAN interface : ISO/IS 11898-2, 9-pin D-Sub male connector
  • CAN controller : Phillips SJA1000T CAN
  • CAN Transceiver : Phillips 82C250 CAN Transceiver
  • 3000 Vrms isolation of CAN interface
  • CAN Transfer rate: 10k, 20k, 50k, 125k, 250k, 500k, 800k, 1MB.
  • Support 10 CANopen Slaves max..
  • Priovde auto-scan slave device function..
  • CANopen Version DS-301 v4.01, DSP-401 v2.1
  • Support NMT, SYCN, EMCY, PDO,SDO protocol.
  • Support dynamic PDO.
  • VC++ Demos and libraries are given.
