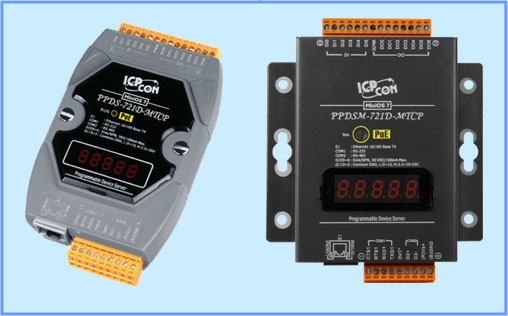

ICP DAS New Product: PPDS(M)-700(D)-MTCP Series Programmable Device Servers


Introduction:

The PPDS(M)-700(D)-MTCP series features true IEEE 802.3af-compliant (classification, Class 1) Power over Ethernet (PoE) using a standard category 5 Ethernet cable to receive power from a PoE switch like the NS-205PSE. The PPDS(M)-700(D)-MTCP also works as a Modbus/TCP to Modbus/RTU or Modbus/ASCII gateway that supports most SCADA/HMI communications based on the Modbus/TCP protocol.

The PPDSM-700(D)-MTCP series includes a powerful and reliable Xserver programming structure that allows you to design your robust Ethernet applications in one day. The built-in, high-performance MiniOS7 boots the PPDSM-700(D)-MTCP up in just one second and gives you the fastest responses.

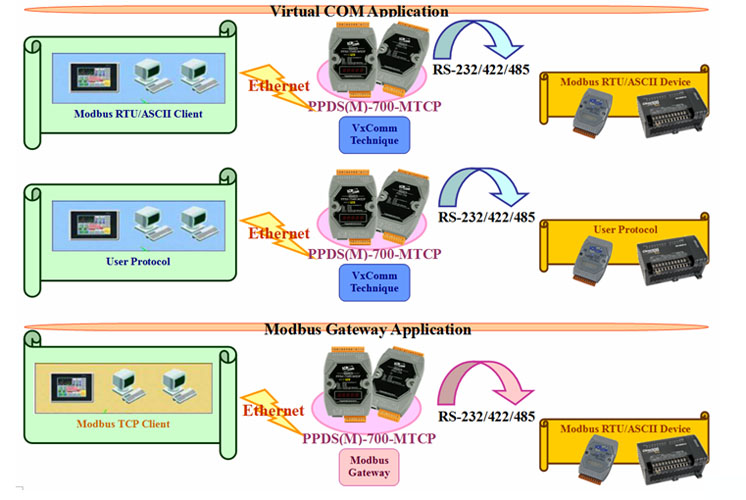

The PPDS(M)-700(D)-MTCP series is a family of Programmable Device Servers, also known as "Serial-to-Ethernet gateway", that are designed for linking RS-232/422/485 devices to an Ethernet network. The user-friendly VxComm Driver/Utility allows users to easily turn the built-in COM ports of the PPDS(M)-700(D)-MTCP series into standard COM ports on a PC. By virtue of its protocol independence, a small-core OS and high flexibility, the PPDS(M)-700(D)-MTCP series is able to meet the demands of every network-enabled application.





  Difference between PDS(M)-700(D) & PPDS(M)-700(D)-MTCP

  PPDS(M)-700(D)-MTCP PDS(M)-700(D)
OS MiniOS7 MiniOS7
CPU 80186-80 MHz 80186-80 MHz
SDRAM/Flash 512 KB/512 KB 512 KB/512 KB
Ethernet 10/100 M 10/100 M
EEPROM 16 KB 16 KB
ESD Protection +/-4 kV +/-4 kV
Power Consumption PPDS(M)-700-MTCP: 2.2W
PPDS(M)-700D-MTCP: 2.9W		 PDS(M)-700: 2.0 W
PDS(M)-700D: 2.7 W
Required Supply Volatge +12 VDC ~ +48 VDC (non-regulated)
PoE (IEEE 802.3af, Class 1)		 +10 VDC ~ +30 VDC (non-regulated)
PoE Yes No
Modbus Gateway Yes No


PPDS(M)-700(D)-MTCP Features:
  • Incorporate Serial Devices in an Ethernet network
  • 10/100 Base-TX Ethernet, RJ-45 Port (Auto-negotiating, auto MDI/MDI-X, LED indicator)


  • Virtual COM on Windows NT 4.0, 2000/XP/2003 and Vista32


  • Powerful Programmable Device Server
  • Low Power Consumption
  • Modbus/TCP to Modbus RTU/ASCII gateway
  • Built-in High Performance MiniOS7 of ICP DAS
  • Supports D/I, Latched D/I and Counter Functions on some models


  • Watchdog Timer Suitable for Use in Harsh Environments


  • Power Reverse Polarity Protection
  • Serial Port +/-4 kV ESD Protection Circuit
  • Metal Case Protection (only for M version)


  • 5-digit Display (only for Version with Display)


  • RoHS compliant with No Halogen


  • Self-tuner ASIC Controller on RS-485 Port
  • "Virtual COM" Extends the COM Port number on PC.
  • Palm-Size with Multiple Serial Ports
  • IEEE 802.3af-compliant(classification, Class 1) Power over Ethernet(PoE)


  • ODM Service Is Available
