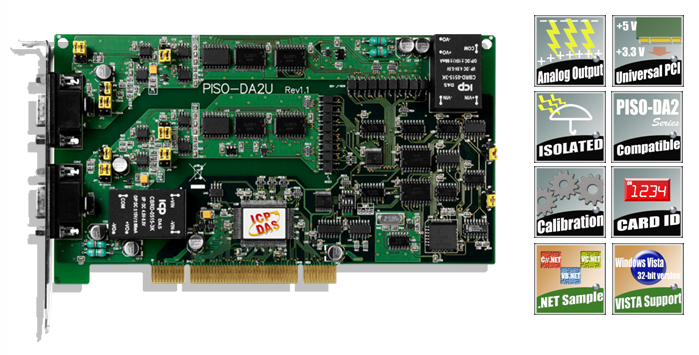

ICP DAS gladly presents you with PISO-DA2U, 2 channels analog output board with both high-voltage protection and Universal PCI interface (3.3V/5V supported).
The PISO-DA2U offers a durable ability which is based upon the built-in high-quality isolation components that make PISO-DA2U featuring 3000 VDC isolation of bus-typed and channel-channel typed. For these boards, their voltage output range is +/-10 V, +/-5 V, 0 ~ 10 V and 0 ~ 5 V, and their current output range is 0 ~ 20 mA and 4 ~ 20 mA.
In addition, PISO-DA2U also features the following advantages by ICP DAS's innovation:
1. Accurate and easy-to-use calibration:
ICP DAS provides the software calibration instead of the manual calibration so that no jumpers and trim-pots are required anymore. The calibration data information can be saved in the EEPROM for long-term use.
2. Channel to channel configuration:
Each channel can be individually configured as voltage output or current output, and different output range.
3. Card ID:
ICP DAS provides the card ID function for PISO-DA series. Users can set a card ID for each card so that when more than two PISO-DA2U boards are used in a computer at the same moment, users can still instantly recognize them one by one.
PISO-DA2U has the same software design with their brothers, PISO-DA2 series. Therefore, users can enjoy the Universal PCI feature immediately by replacing PISO-DA2 with PISO-DA2U directly!PISO-DA2 series support a wide range of operating systems like Linux, DOS, Windows 98, Windows 2000, Windows NT, Windows XP 32-Bit, and Vista 32-Bit. Moreover, ICP DAS provides all the DLL and Active X for users, and sample programs covering from Turbo C++, Borland c++, Microsoft C++, Visual C++, Borland Delphi, Borland C++ Builder, Visual Basic, C#.NET, Visual Basic.NET and LabView are also provided for intuitive and fast learning! |
|
|
- Universal PCI interface, supports both +5V and +3.3V PCI bus.
|
|
|
|
|
|
|
|
|
|
- 2 channels, 12-bit analog output
- Voltage output range: +/10 V,+/-5 V, 0 ~ 10 V and 0 ~ 5 V for each channel
- Current output range:0~20 mA and 4~20 mA current sink to ground for each channel
|
|
|
|
|
|
|
|
|
|
- Card ID function, user can set Card ID to recognize sequence of card when user has more I/O cards of the same model.
|
|
|
|
|
|
|
|
|
|
- 3000 VDC isolation protection(Bus Type, CH-to-CH)
|
|
|
|
|
|
|
|
|
|
- Compatible with software of PISO-DA2U
- Directly compatible with the PISO-DA2 series product.
|
|
|
|
|
|
|
|
|
|
|
|
|
- Software calibration, the calibration is performed under software control eliminating manual trim-pot adjustments
|
|
|
|
|
|
|
|
|
|
- Support the .NET program
- Provide the Microsoft Visual C#.NET 2005 sample program
- Provide the Microsoft Visual Basic.NET 2005 sample program
- Provide Turbo C++, Borland c++, Microsoft C++ sample program
- Provide Visual C++, Borland Delphi, Borland C++ Builder, Visual Basic and LabView sample program
|
|
|
|
|
|
|
|
|
|
- Support the Microsoft Windows Vista 32-bit version OS
- Support Windows 98/NT/2000 and XP/2003 32-bit version OS
|
|
|
|
|
