ICP DAS New Product Release:
I-7565-H1 ( High Performance USB to 1- port CAN bus Converter )
I-7565-H2 ( High Performance USB to 2- port CAN bus Converter ) |
|
|
|
|
|
|
|
|
|
|
|

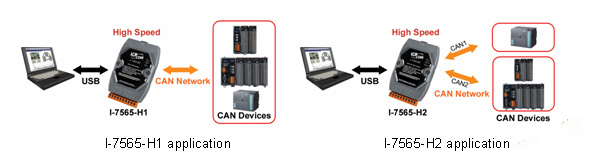

I-7565-H1 and I-7565-H2 are the high performance intelligent USB to CAN converters with one and two CAN channels separately. They provide faster CAN bus communication performance than I-7565. Both I-7565-H1 and I-7565-H2 support CAN2.0A/2.0B protocol and different baud rates from 5 Kbps to 1 Mbps. The important feature of I-7565-H1/H2 is to support the user-defined baud rate function no matter what the baud rate is. When connecting I-7565-H1/H2 to PC, PC will load the relevant device driver automatically (hot plug & play). Therefore, users can make data collection and processing of CAN bus network easier and quicker by applying I-7565-H1/H2. The application fields can be CAN bus monitoring, building automation, remote data acquisition, environment control and monitoring, laboratory equipment & research, factory automation, etc. |
|
|
|
|
|
|
|
|
|
|
|
Features :
- RoHS Design
- Fully compliant with USB 1.1/2.0(Full Speed)
- Fully compatible with the ISO 11898-2 standard
- Support both CAN2.0A and CAN2.0B
- No external power supply (powered by USB)
- Integrated with one or two CAN bus interface
- Programmable CAN bus baud rate from 5Kbps to 1Mbps or user-defined baud rate
- Support CAN bus acceptance filter configuration
- Timestamp of CAN message with at least ¡Ó1ms precision
- Support firmware update via USB
- Utility tool for users module setting and CAN bus communication testing conveniently
- API library for user program development
- PWR / RUN / ERR indication LED
- Built-in jumper to select 120 ohm terminal resister
- Max data flow for CAN Channel: 3000 fps (depends on users¡¦ PC hardware performance)
- The CAN buffer is 256 data frames for I-7565-H1 and 128 data frames in each CAN port for I-7565-H2
- Watchdog inside
- Driver supported for Windows 2000/XP (WinCE available soon)
|
|
|
|
|
|
Utility Features : |
|
|
|
|
|
|
|
|
- CAN bus user-defined baud rate / acceptance filter configuration
- Easily transmit / receive CAN messages for testing and display time-stamp of each received CAN message.
- Save CAN messages as "TXT" file for data log.
- Send CAN messages by using the internal timer of module for high precision transmission.
- Check / Reset module status remotely and get current CAN bus message flow.
|
|
|
|
|
|
CAN bus Converters Comparison Table : |
|
|
|
I-7565-H1 |
I-7565-H2 |
I-7565 |
I-7540D |
I-7530 |
I-7530A |
Built-in CPU |
32-bit CPU
72M Hz |
32-bit CPU
72M Hz |
8-bit CPU
20M Hz |
16-bit CPU
80M Hz |
8-bit CPU
20M Hz |
8-bit CPU
20M Hz |
Comm.
Interface |
USB |
USB |
USB |
Ethernet |
RS232 |
RS232/422/485 |
CAN Channel |
1 |
2 |
1 |
1 |
1 |
1 |
Signal Isolation |
2500 Vrms |
2500 Vrms |
2500 Vrms |
2500 Vrms |
2500 Vrms |
2500 Vrms |
DC/DC Isolation |
3000 VDC |
3000 VDC |
3000 VDC |
1000 VDC |
3000 VDC |
3000 VDC |
CAN Controller |
CPU Built-in |
CPU Built-in |
CPU Built-in |
SJA1000 |
CPU Built-in |
CPU Built-in |
CAN Transceiver |
82C250 |
82C250 |
82C250 |
82C250 |
82C250 |
82C250 |
UART FIFO |
100 |
100 |
900 |
1000 |
900 |
900 |
CAN FIFO |
256 |
128 |
1000 |
1000 |
1000 |
1000 |
Max FPS (1Mbps) |
3000 |
3000 |
300 |
1500 |
300 |
300 |
CAN baud rate |
5k ~ 1M
User-defined |
5k ~ 1M
User-defined |
10k ~ 1M |
10k ~ 1M
User-defined |
10k ~ 1M |
10k ~ 1M |
Suitable Protocol |
CANopen,
DeviceNet J1939 |
CANopen,
DeviceNet J1939 |
CANopen,
DeviceNet J1939 |
CANopen,
DeviceNet J1939 |
CANopen,
DeviceNet J1939 |
CANopen,
DeviceNet J1939 |
Driver Support |
Win2K/XP |
Win2K/XP |
Win2K/XP/Linux |
Win2K/XP/CE/Linux |
Win2K/XP/CE/Linux |
Win2K/XP/CE/Linux |
Power Supply |
USB |
USB |
USB |
10 ~ 30 VDC |
10 ~ 30 VDC |
10 ~ 30 VDC |
|
|
|
|
|
|
I-7565-H1 Datasheet: http://www.icpdas.com/products/Remote_IO/can_bus/datasheet/I-7565-H1.pdf
I-7565-H2 Datasheet: http://www.icpdas.com/products/Remote_IO/can_bus/datasheet/I-7565-H2.pdf
For more information, please visit the following website: http://www.icpdas.com/products/Remote_IO/can_bus/i-7565-H1H2.htm |
|
|
|
|
|
I-7565-H1 CR (NEW) |
High Performance Intelligent USB to 1-port CAN bus converter (RoHS) |
I-7565-H2 CR (NEW) |
High Performance Intelligent USB to 2-port CAN bus converter (RoHS) |
|
|
|
|
|
|
|
|
