ICP DAS New Product Release: PCI-1602U/1602FU
Universal PCI, 32-Channel, 16-bit, 100 kS/s(200 kS/s) Low Gain Multi-function DAQ Board(8 k Word FIFO)


Introduction:
The PCI-1602U/1602FU card is the new generation product that ICP DAS provides to meet RoHS compliance and the new PCI-1602/1602F card is designed as a direct replacement for the PCI-1602/1602F.

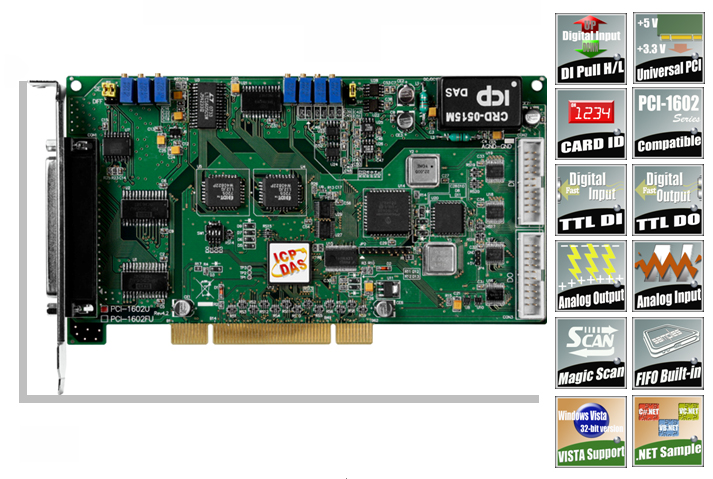

PCI-1602U/1602FU is a high performance multifunction card providing high-speed analog I/O and digital I/O functions. The PCI-1602U/1602FU has a universal PCI interface supporting both 3.3 V and 5 V PCI bus, and it features a continuous, 100 k Samples/Sec (200 k Samples/Sec) 16-bit resolution A/D converter, 8 K samples hardware FIFO, a MagicScan controller (for multi-channel scan), 2-ch 16-bit D/A converter, 16-ch digital input and 16-ch digital output. PCI-1602U/1602FU provides either 32-ch single-ended or 16-ch differential analog inputs which are jumper selectable, and a programmable high speed PGA is equipped for gain controls (1, 2, 4 and 8).

The PCI-1602U/1602FU also adds a Card ID switch and pull.-high/ pull-low resisters for DI on board. Users can set Card ID on a board and recognize the board by the ID via software when using two or more PCI-1602U/1602FU cards in one computer. The pull-high/ pull-low resisters are used to specify the DI status; when the DI channels are unconnected, the DI status will remain in high or low status without being left floating.

The PCI-1602U/1602FU software is fully compatible with the PCI-1602/1602F. Therefore, users can direct use the new PCI-1602U/1602FU series card without modifying their software. The PCI-1602U/1602FU software supports various OS such as Linux, DOS, Windows 98, Windows 2000, Windows NT, Windows XP 32-Bit and Vista 32-Bit. It also provides the DLL and Active X control, and various language sample programs of Turbo C++, Borland c++, Microsoft C++, Visual C++, Borland Delphi, Borland C++ Builder, Visual Basic, C#.NET, Visual Basic.NET and LabVIEW to help users to quickly and easily develop their applications.

Feature & Special:
  • Universal PCI interface, supports both +5V and +3.3V PCI bus.



  • Card ID function, users can set Card ID to recognize sequence of card when users have two or more I/O cards of the same model.



  • Digital input status can be set to pull-high or pull-low; when the digital input channels are unconnected, the status will hold in high or low status. (non-floating)



  • 16 channels digital Input
  • 16 channels digital output
  • DIO response time is about 0.77 £gs (1.3 MHz max.)



  • 2 channels, 12-bit analog output



  • 16-bit high resolution, 100(200) k Hz A/D converter
  • 32 single-ended/16 differential analog inputs
  • Programmable low gain:1/2/4/8
  • Built-in 8 k WORD FIFO
  • Magic scan: Magic scan will automatically change the channel according to that the user setting to capture analog input.
  • Support internal/external trigger
  • Three different external trigger mode: post-trigger, pre-trigger, middle trigger



  • Fully compatible with the PCI-1602 series product including software and hardware.



  • Support .NET program
  • Provide Microsoft Visual C#.NET 2005 sample programs
  • Provide Microsoft Visual Basic.NET 2005 sample programs
  • Provide Turbo C++, Borland C++, Microsoft C++ sample programs
  • Provide Visual C++, Borland Delphi, Borland C++ Builder, Visual Basic and LabVIEW sample programs



  • Support Microsoft Windows Vista 32-bit version OS
  • Support Windows 98/NT/2000 and XP/2003 32-bit version OS



More information, please refer to¡K
http://www.icpdas.com/products/DAQ/pc_based/pci_1602.htm
