New Product: I-8120W Intelligent CAN Bus Communication Module |
|
|
|
|
|
|
|
|

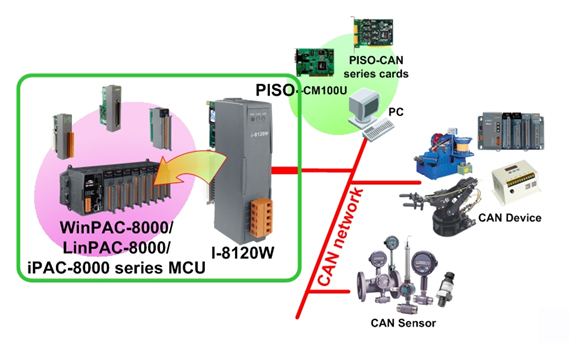

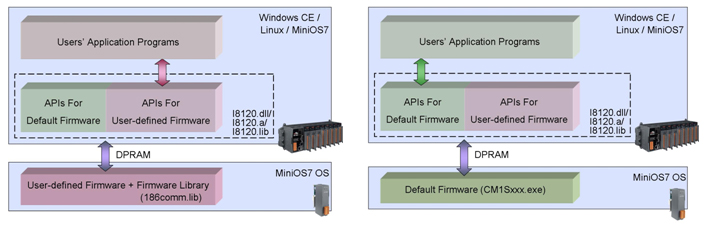

ICP DAS honorably introduce you a new intelligent CAN product, I-8120W. There is one CAN port in an I-8120W. Due to the 186 CPU and 8 KB DPRAM inside, combining the WinPAC MCU (main control unit) is not only an economic and high-performance CAN solution, but satisfies the various CAN applications. In order to developing the applications more conveniently and quickly, users can finish their programs based on the default firmware of I-8120W and the model of the demos. Besides, I-8120W also gives the consideration to flexibility and high performance. It allows users to build the proper firmware for their applications via firmware library. This feature is helpful to reducing the CPU loading of the WinPAC MCU, and lets the WinPAC MCU concentrate on the work of flashing HMI and processing IO data. By way of the model of the demos and the specific architecture of firmware library, it can reduce the development cycle and simplify the design procedure efficiently. Therefore, users only need to focus on the development of the application procedure, and don¡¦t worry about how to build a proper mechanism to handle the communication between the WinPAC MCU and the I-8120W via DPRAM. By I-8120W, you will feel the more flexible and more efficient CAN application solutions from now on. |
|
|
|
|
|
|
|
|
|
|
|
Features: |
|
|
- Support WinPAC-8000 series MCU
- Follow ISO11898-2 specification
- NXP SJA1000T CAN controller with 16 MHz clock
- 2500Vrms photo-isolation protection on CAN side
- Switch for 120£[ terminator resistor of CAN bus
- One CAN communication port
- Compatible with CAN specification 2.0 parts A and B
- Provide baud rate: 10 kbps, 20 kbps, 50 kbps, 125 kbps, 250 kbps, 500 kbps, 800 kbps, 1 Mbps, and user-defined special baud rate 2048 records reception buffer and 256 records transmission buffer
- Timestamp of CAN message with ¡Ó1ms precision
- 80186, 80 MHz CPU
- 8 Kbytes DPRAM inside
- Allow user to update firmware and program user-defined firmware
- eVC++ demos and libraries are given
- C/C++ function libraries of firmware is given
|
|
|
|
|
|
For more details, please refer to the following website:
http://www.icpdas.com/products/Remote_IO/can_bus/i-8120w.htm |
|
|
|
|
|
|
|
