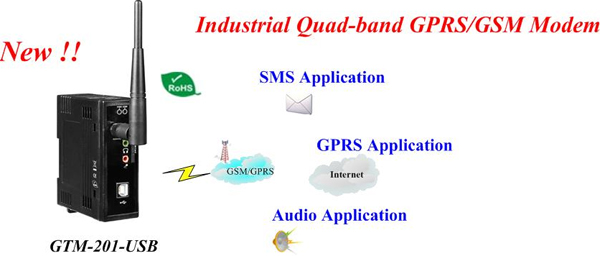

ICP DAS New Product Release: GTM-201-USB
Industrial USB Quad-band GPRS/GSM Modem |
|
|
|
|
|
 |
|
|
|
|
|
GTM-201-USB is a new product designed by ICP DAS. It”¦s an industrial Quad-band GPRS/GSM modems with USB interface that works at frequencies of GSM 850 MHz, EGSM 900 MHz, DCS 1800 MHz and PCS 1900 MHz. The modem utilizes the GPRS/GSM network for convenient and inexpensive data transferring from remote instruments, meters, computers or control systems in either live data or packet data acquisition. The GTM-201-USB has the integrated TCP/IP stack so that even simple controllers with serial communications ports can be connected to the modem. The features of the GTM-201-USB allow a variety of PC applications to take advantage of SMS and GPRS connectivity. The voice interface allows these modems to be also applied to alarm systems with sounds. |
|
|
|
|
|
 |
|
|
|
|
|

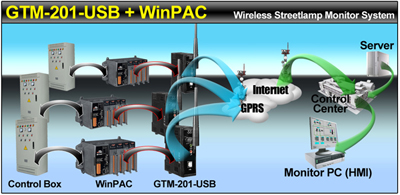

| Wireless Streetlamp Monitor |

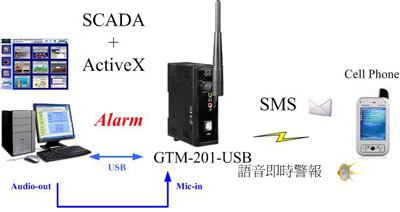

Voice Alarm System |
 |
 |

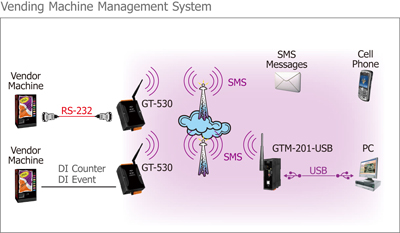

| Vending Machine Management System |
Manufacture Machine System |
 |
 |
|
|
|
|
|
|
Features: |
|
|
- Supply Voltage: +10 VDC ~ +30 VDC
- DIN-Rail mount
- 4 KV ESD Protection
- Quad-band GSM/GPRS Modem Operating of 850/900/1800/1900 MHz
- Designed for GPRS, Data, Fax, SMS and Voice Applications
- Supports TCP Server, TCP Client, UDP Client Connection from GPRS
- Supports Standard AT Commands
- Includes a Digital Input Channel to reset the System
- Provide 3.5 mm stereo jack for Audio Interface
- LED Indicators for GSM and Power Indication
- High reliability in harsh environments
- USB Driver for XPAC, WinPAC and LinPAC
|
|
|
|
|
|
GTM-201-RS232 and GTM-201-USB comparison sheet: |
|
|
| Model Name |
GPRS/GSM System |
Power Input |
Reset Input |
MIC Input/Audio Output |
AT command |
Built-in TCP/IP Protocol |
Baud Rate (bps) |
Interface |
Driver |
| GTM-201-RS232 |
850/900/1800/1900 MHz |
+10 VDC ~ +30 VDC |
Yes |
Yes |
Yes |
Yes |
9600 ~ 115.2 k |
RS-232 |
- |
| GTM-201-USB |
850/900/1800/1900 MHz |
+10 VDC ~ +30 VDC |
Yes |
Yes |
Yes |
Yes |
9600 ~ 115.2 k |
USB |
Win2K, XP WinCE 5.0, 6.0 |
|
|
|
|
|
|

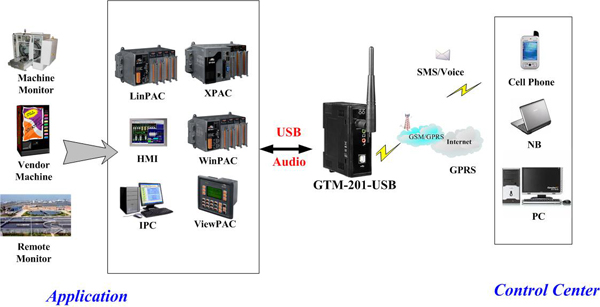

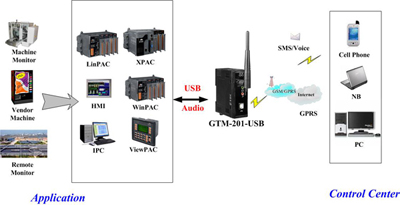

GTM-201-RS232 and GTM-201-USB Application Architecture: |
|
|
| |
IPC XPAC
(WinXP) |
PLC
HMI |
LinPAC |
WinPAC
ViewPAC |
£gPAC |
| GTM-201-RS232 |
Yes
(don”¦t need driver) |
Yes
(don”¦t need driver) |
Yes
(don”¦t need driver) |
Yes
(don”¦t need driver) |
Yes
(don”¦t need driver) |
| GTM-201-USB |
Yes
(provide USB driver) |
No |
Yes
(provide USB driver) |
Yes
(provide USB driver) |
No |
| GPRS connection |
Operating System support GPRS connetion |
AT Command |
Operating System support GPRS connetion |
Operating System support GPRS connetion |
Provide GPRS lib |
| SMS Application |
AT Command
GSM ActiveX |
AT Command |
AT Command |
AT Command GSM ActiveX |
AT Command (SMS demo IsaGraf) |
| Voice Application |
Voice interface
GSM ActiveX |
Voice interface |
Voice interface |
Voice interface GSM ActiveX |
No |
|
|
|
|
|
|
Datasheet:
http://m2m.icpdas.com/datasheet/GTM-201.pdf
For more information, please visit the following website:
http://www.icpdas.com./products/GSM_GPRS/wireless/GTM-201.htm |
|
|
|
|
|
