With the most stability, XPAC_CE is now launched!

With a high-quality hardware equipped and the high-stability operation system WinCE 6.0 Embedded, XPAC-CE is launched by ICP DAS in 2009! Comparing to all the other programmable automation controllers, XPAC_CE is absolutely the very first one PAC that focus on ultimate stability and it brings a good new option for industrial control.

The most attractive feature of XPAC_CE is its powerful hardware. Including the high computing and processing ability of AMD LX800 500 MHz CPU, built-in 512M memory, 4G built-in flash and 32G CF expandability, users can easily develop large-scaled systems by XPAC_CE. On the other hand, various communication interfaces, such as dual-USB, dual-Ethernet and multiple serial ports also match the requirement of most kinds of industrial control applications or system integration. Furthermore, dual-watchdog, dual-power input, battery backup and fast restoration really strengthen the stability to the highest level.

Not only the hardware but also software shows how unique XPAC_CE is. XPAC_CE provides many built-in utilities for users, and Visual Studio 2005/2008, which helps users to develop their program by C, C++ or C# is supported as well. Besides, .Net CF 2.0/3.5 for windows system development and SQLCE 3.5 for database applications are all available on XPAC_CE! The latest OS WinCE 6.0 and the highest level hardware will bring most advantages for your industrial control system!

Product information:

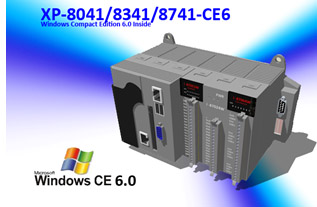

XP-8041/8341/8741-CE6

Windows Compact Edition 6
.NET Compact Framework 3.5
SQL Compact Edition 3.5
VS.NET 2005/2008 supported
AMD LX800 CPU (32-bit and 500MHz)
512 MB RAM, 4GB Built-In Flash
System Rescue CF Card
One VGA Port, Dual USB Ports
Dual Ethernet Ports (10/100M)
5 Serial Ports (RS-232/RS-485)
Dual Watchdog Timer
Operating temperature: -25℃ ~ +75℃

Specifications of XP-8041/XP-8341/XP-8741

Feature	Items	Description
Processor Module	CPU	AMD LX 800 processor
Processor Module	System Memory	512 MB RAM
Operating System		Microsoft Windows Compact Edition 6.0 (including .NET Compact Framework 3.5 and SQL Compact Edition 3.5)
Storage	Flash	4GB as IDE Master
	Dual Battery Backup SRAM	512KB (for 5 years data retain)
	EEPROM	16KB, data retention: 40 years 1,000,000 erase/write cycles.
	CF card	1GB (support up to 32 GB)
Graphic	VGA resolution	(640 x 480 ~ 1024 x 768 or above)
Ethernet		RJ-45*2, 10/100Mbps Base-TX Ethernet Controller (Auto-negotiating, Auto_MDIX, LED indicator)
Dual Watchdog Timer		Yes
64-bit Hardware Serial Number		Yes
Rotary Switch		Yes (0 ~ 9)
DIP Switch		Yes (8 bits)
USB2.0		x 2
Serial Port	COM1	Internal communications with I-87K modules in slots
	COM2	RS-232, Non-isolation (TXD, RXD and GND)
	COM3	RS-485 (D2+, D2-; self-tuner ASIC inside); 3000VDC isolation
	COM4	RS-232 (RXD, TXD, CTS, RTS and GND) / RS-485 (Data+ and Data-); Non-isolation
	COM5	RS-232 (RXD, TXD, CTS, RTS, DSR, DTR, CD, RI and GND); Non-isolation
Environment	Operating Temp.	-25°C ~ 75°C
	Storage Temp.	-20°C ~ 80°C
	Relative Humidity	5% ~ 95% non-condensing
Mechanical	XP-8741	132 mm (W) x 355 mm (L) x 125 mm (H)
Mechanical	XP-8341	132 mm (W) x 231 mm (L) x 125 mm (H)
Power	Consumption	XP-8341: 9.6W (0.4A@24V)
