ICP DAS NEW PRODUCT¡GExtend Your CAN Network Infinitely - I-7532 CAN bus Bridge



Introduction:

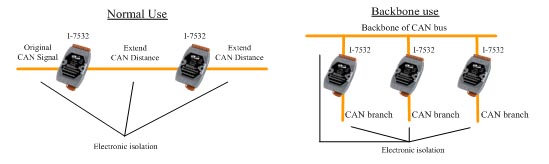

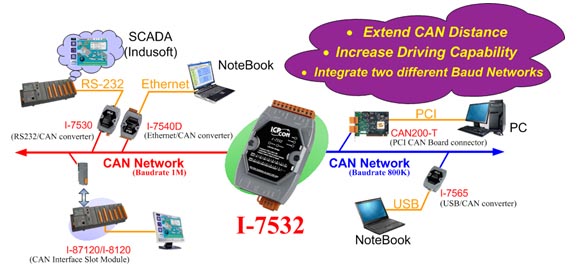

I-7532 is a ¡§Two-channel CAN Bus Isolated Bridge¡¨ product proposed by ICP DAS. It provides more powerful functions than I-7531 (CAN Repeater). Users can use it easily to - [1] Extend CAN bus communication distance, [2] Increase driving capability to support more CAN devices, [3] Integrate two CAN bus networks of different baud and [4] Isolate the noise or disturbance between two different CAN networks. Besides, I-7532 also supports error detected and corrected function. It makes CAN bus network communication more stable and easier for data collection. In CAN network application, I-7532 can be used in all kinds of CAN communication protocol like CANopen, DeviceNet and J1939 etc.




Features:

  • Plug & Play
  • Support 15 kinds of baud on each CAN channel from 5Kbps to 1Mbps
  • Provide 768 frame buffer for each CAN channel
  • Photo-coupler isolation between 2 CAN port: 2500 Vrms
  • 3000VDC galvanic isolation between the power supply and 2 CAN ports
  • Support to reset module without turning off power
  • Support CAN 2.0A / CAN 2.0B
  • Fully compatible with ISO 11898-2 standard
  • Driving capability: Up to 100 CAN nodes on each channel
  • Transmission distance up to 1 km on each CAN channel
  • Removable terminal block, Mount easily on DIN-rail
  • Built-in jumper to select 120£[ terminal resistor
  • Watchdog inside
  • Operating temperature: -25¢XC to + 75¢XC
  • Humidity: 5%~ 95%

For more information, please refer to:
http://www.icpdas.com/products/Remote_IO/can_bus/I-7532.htm

Datasheet:
http://www.icpdas.com/products/Remote_IO/can_bus/datasheet/I-7532.pdf
