ICP DAS NEW PRODUCT¡GI-2532 CAN to Fiber Converter

ICP DAS NEW PRODUCT¡GI-2532 CAN to Fiber Converter

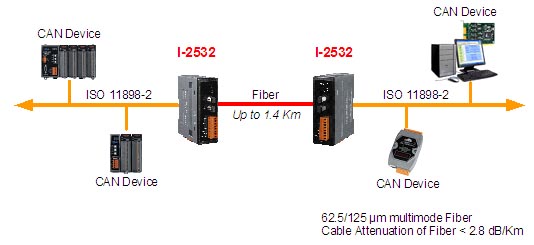

Fiber optic transmission medium is a good material to protect data transmission from EMI/RFI interference and has been used in harsh environment extensively. CAN bus is famous in industrial application. More and more users build CAN networks to communicate their controllers, sensors and actuators. I-2532 is specifically designed for converting the electrical CAN bus signal to fiber optic cables. Therefore, I-2532 can send CAN signals over fiber optic cable for noise resistance and isolation. It isolates and protects your CAN system from component killing surges and transients in a noisy and harsh environment.


Features:

  • Build-in switch for 120£[ terminal resistance
  • Compatible with CAN specification 2.0A and 2.0B
  • Up to 100 CAN nodes on CAN Port
  • Transmission distance up to 1km on CAN Port
  • Transmission distance up to 1.4km on Fiber Port
  • Removable terminal block
  • Mountable on DIN Rail


Specifications:

  • Fiber Port connector type: ST
  • Fiber Port operating wavelength: 850nm
  • Fiber type: 62.5/125£gm, multi-mode
  • Compatible with CAN specification 2.0A and 2.0B
  • Fully compatible with ISO 11898-2
  • Support baud up to 500Kbps, auto-baud detection
  • Propagation delay: <125ns
  • Power consumption: 0.5W
  • Power supply: +10VDC ~ +30VDC
  • Operating temperature: -25¢XC ~ +75¢XC
  • Humidity: 5% ~ 95%
  • Dimensions: 32.3mm x 99.0mm x 77.5mm
  • ESD¡BEFT¡BSurge Protection¡G
    ESD¡G+/- 4KV Contact Discharge
    EFT¡G+/- 1KV
    Surge¡G+/- 2KV

For more information, please refer to
http://www.icpdas.com/products/Remote_IO/can_bus/i-2532.htm

Datasheet download from
http://www.icpdas.com/products/Remote_IO/can_bus/datasheet/I-2532.pdf
