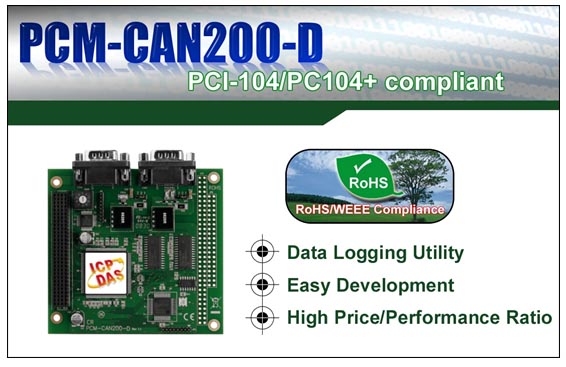

ICP DAS NEW Products: PCM-CAN 200 PCI-104 CAN Communication module

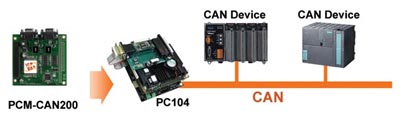

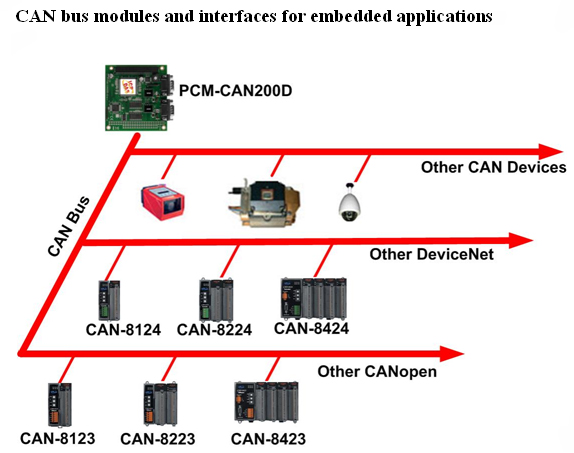

PCM-CAN200 is a PCI-104 CAN card. It follows ISO 11898-2 CAN standard, and supports PCI-104/PC104+ compliant bus interface. It has 2 independent CAN bus communication ports with 9-pin D-sub connectors, and has the ability to cover a wide range of CAN applications. Besides, PCM-CAN200 uses the CAN controller Phillips SJA1000T and transceiver 82C250, which provides bus arbitration, error detection with auto correction and re-transmission functions. For various CAN applications, PCM-CAN200 is an economic and easy-to-use solution.



Product Features:

  • PCI-104/PC104+ compliant
  • 2500Vrms photo-couple isolation on CAN side
  • 1000VDC galvanic protection
  • Two independent CAN communication ports
  • Connector: 9-pin D-sub male connector.
  • Compatible with CAN 2.0A and 2.0B
  • Fully compatible with ISO 11898-2 standard
  • On-board optical isolation protection
  • Programmable transfer-rate up to 1 Mbps
  • Jumper select 120£[ terminator resistor for each port
  • Rotary switch for interrupt No. selection
  • Direct memory mapping to the CAN controllers
  • Provide VB, VC++, Delphi, BC++ demos
  • LabVIEW/DASYLab driver
  • Driver support for Windows 98/ME/NT4/2000/XP, Win CE(Available soon)


For more information, please refer to the following location.
Web site:
http://www.icpdas.com/products/Remote_IO/can_bus/pcm-can200.htm

Data sheet:
http://www.icpdas.com/products/Remote_IO/can_bus/datasheet/PCM-CAN200.pdf
