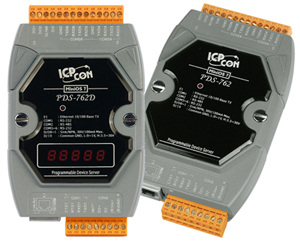

ICP DAS New Product: PDS-762(D)
Programmable Device Server with five RS-232, one RS-485, one DI and two DO ports (ROHS) |
|
|
|
|
|
|
|
|
|
|
|
Introduction:
PDS-762(D) series is a series of Programmable Serial-to-Ethernet Device Servers designed to meet the most common requirements of Internet/Ethernet applications. Besides the advantage of easy to use on remote control your serial devices through Ethernet network, PDS-762(D) comes with a powerful and reliable Xserver programming structure for you to design your robust Ethernet applications in one day.
PDS-762(D) series is designed for linking RS-232/485 devices to Ethernet network. With the help of VxComm utility, the built-in COM port of PDS-762(D) can be virtualized to standard COM port of host-PC. By virtue of its independent operating system, protocol independence, small size and flexibility, Device servers are able to meet the demand of virtually any network-enable application. Most devices don't have network ports. Our Programmable Device Servers allow those devices to become connected to the network. |
|
|
|
|
|
PDS-762(D) Features:
- Networkable serial devices
- ¡§Virtual COM¡¨ extend COM ports
- Supports Virtual COM on Windows NT 4.0, 2000/XP/2003 and Vista32
- Powerful programmable device server
- Watchdog timer suitable for use in harsh environments
- 10/100 Base-TX Ethernet Controller (Auto-negotiating, Auto_MDIX, LED indicator)
- Power reverse polarity protection
- Serial port +/-4KV ESD protection circuit based on ¡§REAL¡¨ testing result
- Self-tuner ASIC controller on RS-485 port
- Enables download of programs from PC
- 5-digit display (only for version with display)
- RoHS compliant with No Halogen
- Built-in MiniOS7 of ICP DAS
- RS-232 Port: One for 5-wire , four for 3-wire
- RS-485 Port: One for 2-wire
- Digital Input: One for Source (Dry Type), common ground
- Digital Output: Two for open-collector (Sink/NPN)
- ODM Wanted
|
|
|
|
|
|
PDS-700 Selection Guide |
|
|
Model |
DI/DO |
COM1 |
COM2 |
COM3 |
COM4 |
COM5 |
COM6 |
COM7 |
COM8 |
Similar Product |
DS-712
~Available soon~ |
- |
5-wire RS-232 |
- |
- |
- |
- |
- |
- |
- |
I-7188E1(D) |
DS-715
~Available soon~ |
- |
2-wire RS-485
4-wire RS-422 |
- |
- |
- |
- |
- |
- |
- |
|
PDS-720
PDS-720D
~NEW~ |
- |
5-wire RS-232 |
2-wire RS-485 |
- |
- |
- |
- |
- |
- |
I-7188E2(D) |
PDS-721
PDS-721D
~NEW~ |
6/7 |
5-wire RS-232 |
2-wire RS-485 |
- |
- |
- |
- |
- |
- |
|
PDS-732
PDS-732D
~NEW~ |
4/4 |
5-wire RS-232 |
2-wire RS-485 |
5-wire RS-232 |
- |
- |
- |
- |
- |
I-7188E3(D)-232 |
PDS-734
PDS-734D
~NEW~ |
4/4 |
5-wire RS-232 |
2-wire RS-485 |
4-wire RS-422 |
- |
- |
- |
- |
- |
I-7188E3(D) |
PDS-742
PDS-742D
~NEW~ |
- |
5-wire RS-232 |
2-wire RS-485 |
5-wire RS-232 |
9-wire RS-232 |
- |
- |
- |
- |
I-7188E4(D) |
PDS-742-IP67
~Available soon~ |
- |
5-wire RS-232 |
2-wire RS-485 |
5-wire RS-232 |
8-wire RS-232 |
- |
- |
- |
- |
|
PDS-743
PDS-743D
~NEW~ |
4/4 |
5-wire RS-232 |
2-wire RS-485 |
3-wire RS-232 |
3-wire RS-232 |
- |
- |
- |
- |
|
PDS-752
PDS-752D
~NEW~ |
- |
5-wire RS-232 |
2-wire RS-485 |
5-wire RS-232 |
5-wire RS-232 |
5-wire RS-232 |
- |
- |
- |
I-7188E5(D) |
PDS-755
PDS-755D
~NEW~ |
- |
5-wire RS-232 |
2-wire RS-485 |
2-wire RS-485 |
2-wire RS-485 |
2-wire RS-485 |
- |
- |
- |
I-7188E5(D)-485 |
PDS-762
PDS-762D
~NEW~ |
1/2 |
5-wire RS-232 |
2-wire RS-485 |
3-wire RS-232 |
3-wire RS-232 |
3-wire RS-232 |
3-wire RS-232 |
- |
- |
|
PDS-782
PDS-782D
~NEW~ |
- |
5-wire RS-232 |
2-wire RS-485 |
3-wire RS-232 |
3-wire RS-232 |
3-wire RS-232 |
3-wire RS-232 |
3-wire RS-232 |
3-wire RS-232 |
I-7188E8(D) |
PDS-782-25
PDS-782D-25
~Available soon~ |
- |
5-wire RS-232 |
2-wire RS-485 |
3-wire RS-232 |
3-wire RS-232 |
3-wire RS-232 |
3-wire RS-232 |
3-wire RS-232 |
3-wire RS-232 |
|
PDS-700D = PDS-700 + 7-Seg. LED Display
In the DI/DO column is the number of channels for each device.
Some of the PDS-700 has none DI/DO function. |
|
|
|
|
|
|
|
For more information, please visit the following web site:
http://www.icpdas.com/products/Industrial/pds/pds-762.htm |
|
|
|
|
|
|
|
|
|
|
|
