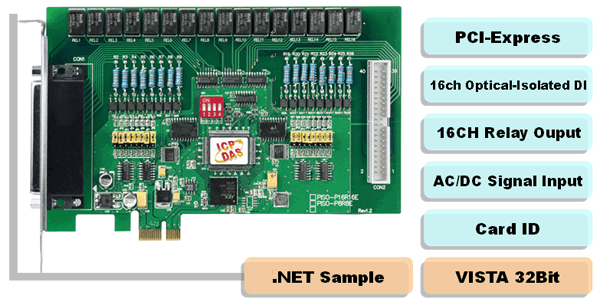

ICP DAS New Product:PISO-P16R16E
(PCI Express bus/16-CH Optical-Isolated Digital Input and 16-CH Relay Output Board)


Introduction:

PISO-P16R16E is the first PCI-Express interface product on ICP DAS.PISO-P16R16E has 16 channels of optical-isolated Digital Input and 16 channels of relay output board. Each input channel use a photo-coupler to isolate the card and computer from external signal. PISO-P16R16E supports Card ID (jumper) features for multi-board identification, and compatible with the PISO-P16R16U.

This interface board is easily installed in any PC which has PCI-Express bus. The board interface to field logic signals, eliminating ground-loop problems and isolating the host computer from damaging voltages. PISO-P16R16E has one 37-pin D-Sub connector and one 40-pin male header. The 40-pin to DB-37 flat cable is used to fix with the case. The user can connect the digital signal through the second D-Sub connector. Each D-Sub connector contains 8 input channels and 8 output channels.

PISO-P16R16E support the OS that include Linux, DOS, Windows 98, Windows 2000, Windows NT, Windows XP 32-Bit, Vista 32-Bit. And provide the DLL and Active X control to help user who implement the product. This sample program have Turbo C++, Borland c++, Microsoft C++, Visual C++, Borland Delphi, Borland C++ Builder, Visual Basic, C#.NET, Visual Basic.NET and LabView to help user more fast to compose.


Features:
  • PCI Express Interface
  • 16-CH optical-isolated digital input
  • 16-CH Relay output
  • AC/DC signal input
  • Card ID: Jumper setting for multi-board identification
  • Support Windows 98/NT/2000/XP32 Bit/2003 32Bit Vista 32Bit OS
  • Provide Turbo C++ˇBBorland c++ˇBMicrosoft C++ˇBVisual C++ˇBBorland DelphiˇBBorland C++ BuilderˇBVisual BasicˇBVisual C#.NETˇBVisual Basic.NET and LabView sample program

Specifications:
ModelBus PISO-P16R16E PISO-P16R16U PCI-P16R16
Bus Type PCI-Express X 1
(+3.3V/+12V)
Universal PCI
(+3.3V/+5V)
PCI Bus(+5V)
Relay Output Contact Rating 0.5A/120Vac,1A/24Vdc 0.5A/120Vac,DC/1A 30Vdc
Relay Type 8 SPDT 8 SPST
Operating Time Typical 1 ms 5 ms
Release Time Typical 7 ms 10 ms
Expected life Mechanical(5 millions); electrical (1 millions) > 100,000 times
(at 30V ,1A)d
Optical Isolated Digital Input Type None-polarized opto-isolated (PC-354) None- polarized Optical Isolation (PC-814)
Input voltage AC/DC 5-24V or Vac(50- 1khz)
Operating Temperature 0~60˘XC
Input impedance 1.2 K ohm
Response time 20u Sec (Without filter) / 2.2m Sec ( With filter)
Isolated Voltage 3750V 5000V
Environmental Operating temperature 0~60˘XC
Storage temperature -20 ˘XC ~ 70 ˘XC
Humidity 0 to 90% non-condensing
Dimensions Dimensions 205mm x 105mm 180mm x 105mm

More information, please refer toˇK
http://www.icpdas.com/products/DAQ/pc_based/piso_p16r16u.htm
