The M-7016 & M-7016D show their nature for strain gauge measurement. |
|
|
|
|
|
 |
|
|
|
|
|
Yes, we can! The M-7016 & M-7016D show their nature for strain gauge measurement.

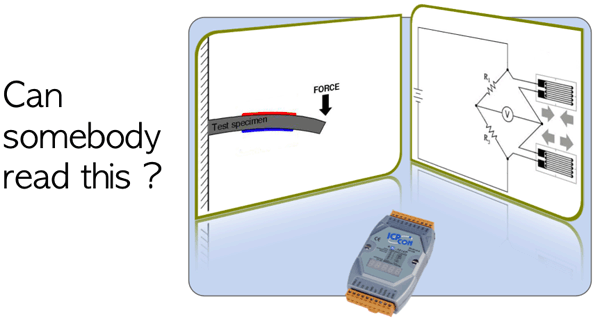

The M-7016 series are the latest strain gauge input modules from ICP DAS. Around our surroundings, there are numerous examples of converting force into a measurable electrical output; In most cases, we need a strain gauge type load cell. And then, how are we going to do to make the most use of the electrical output?

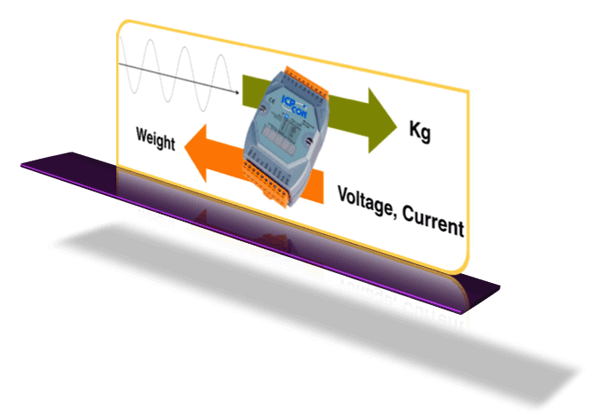

The M-7016 series are definitely your NO.1 choice! The M-7016 series not only process the data from load cells or strain gauges, but also do linear mapping at the same time for intuitive results; by user-defined corespondent table, the M-7016 series convert the data
into weight directly!
In the new models, the M-7016 series support both Modbus RTU & DCON protocols. In the following of the news, let's see what it got in detail.
- Analog Input : 2 channels
- Input Types & Range : +/-15mV, +/-50mV, +/-100mV, +/- 500mV, +/-1V, +/- 2.5V, +/- 20mA
- Sampling Rate
|
|
|
 |
|
|
|
|
|
 |
|
|
- Excitation Voltage Output : 0 ~ 10V
- Digital Input : 1 channel; this channel can also be used as a counter.
- Digital Output : 4 channel; support High/Low alarm output.
- 4 1/2 digits LED display : For the M-7016D only.
- Operating temperature: -25 to 75¢XC
- Support both Modbus RTU and DCON protocols.
|
|
|
|
|
|
Click the following link please, and you will find more about the M-7016 & M-7016D.
http://www.icpdas.com/products/Remote_IO/m-7000/m-7016d.htm |
|
|
|
|
|
|
 |
|
|
|
|
