ICP DAS New Product: Ethernet Remote Motion Controller - ET-M8194H |
|
|
|
|
|

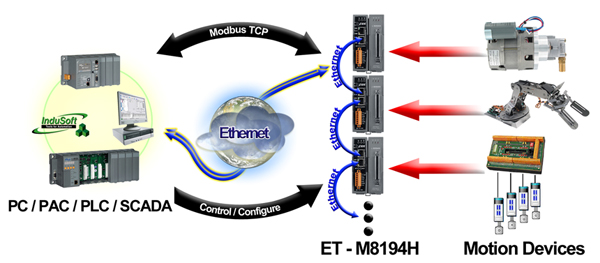

ET-M8194H is a new product of ICP DAS to implement the Ethernet remote motion controller for the remote motion solution. It includes an I-8194H module (a 4-axes stepping/pulse-type servo motor control module). By using the intelligent funciton of ET-M8194H, we can reach the remote motion control to finish various motion application via MODBUS/TCP. Also, ET-M8194H can be applied in many platforms with MODBUS/TCP protocol (for example: PC, PAC, PLC). Additionally, it is easy and simple to use many ET-M8194Hs at the same time to implement the multi-axes motion control by the serial connection of ET-M8194H. We also provide EzMove Utility and API Library for users to quickly configure ET-M8194H and develop their own control applications easily. |
|
|
|
|
|
|
|
|
|
|
|
ET-M8194H Features: |
|
|
|
|
|
- Users can connect to several ET-M8194Hs to reach the multi-axes motion control by one host.
-
With MODBUS/TCP communication, ET-M8194H provides advanced motion control capability for any platform with a MODBUS Client. Therefore, users can realize the various remote motion applications in SCADA, PAC or PLC etc.
- EzMove utility provides the easy interface on setting and macro programming to help users familiarize the manipulation of ET-M8194H quickly. Besides, users can also watch the motion track from EzMove utility.
-
Provides API Library for the development environment (For example: VB, VC and BCB etc.) for self-developed applications. Besides, users can also integrate all ET-M8194H information via Ethernet to reach the concentrated control.
- Support Hot-Swap function. Users can hot swap I-8094H module while ET-M8194H is working.
- Support IP_Lock function. The specific IP clients can only connect to ET-M8194H for remote control security.
|
|
|
|
|
|
For more information, please visit the following web site:
http://www.icpdas.com/products/motion/ET-M8194H.htm |
|
|
|
|
|
|
|
|
|
|
|
