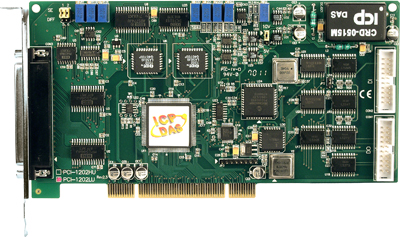

ICP DAS New Product: PCI-1202LU/HU (Universal PCI, 12-bit, 110KHz/40KHz Multi-function board)


Introduction:



    The PCI-1202LU/HU cards are designed as direct replacements for the PCI-1202L/H cards, and the PCI-1202L/H will reach end of life soon.

    The PCI-1202LU/HU series is a family of high performance data acquisition board. It features a continuous, 110KHz for low gain (40KHz for high gain), gap-free data acquisition under DOS and Windows. The PCI-1202LU/HU card provides 32-channel single-ended or 16-channel differential analog inputs, and features a MagicScan controller (for channels scan), M-function and Continuous Capture functions.

    The PCI-1202LU/HU Universal PCI card supports both 5V and 3.3V, while the PCI-1202L/H PCI card supports 5V PCI bus only. The PCI-1202LU/HU (Universal PCI version) is fully compatible with the PCI-1202L/H (PCI version), and has an improvement in D/I pull-high/low design.



Features:


  • 12-bit 110KHz A/D converter
  • 32 single-ended/ 16 differential inputs
  • 1K word FIFO buffer (1K samples)
  • Total sampling rate is 110K samples/s for low gain model and 40K samples/s for high gain model.
  • Supports internal and external triggers.
  • Three different external trigger: post-trigger, pre-trigger, middle trigger
  • 16-ch digital inputs and 16-ch digital outputs;
    2M words per second, high-speed data transfer rate.
  • PCI-1202LU provides programmable low gain: 0.5, 1, 2, 4, 8.
  • PCI-1202HU provides programmable high gain: 0.5, 1, 5, 10, 50, 100, 500, 1000.
  • Two 12-bit independent programmable DAC;
    2 MHz throughputs per channel (max.)
  • Universal PCI card, supports both 5V and 3.3V PCI bus.
  • Digital input port can be set to pull-high or pull-low.


More information, please refer to¡K
http://www.icpdas.com/products/DAQ/pc_based/pci_1200.htm




End of Life Notification for PCI-1202L/H product

    For the RoHS reason, the PCI-1202L/H production will be discontinued soon.

    The new PCI-1202LU/HU cards are designed as direct replacements for PCI-1202L/H cards. The new cards also have improvements in D/I pull-high/low design and supports 3.3V and 5V PCI bus.

More information, please refer to¡K
http://www.icpdas.com/products/DAQ/pc_based/pci_1200.htm
