Introduction:

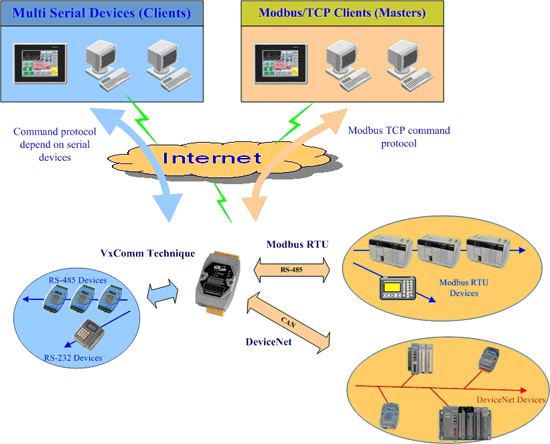

The I-7243D is one of CAN bus products in ICP DAS. It not only supports VxComm and Modbus RTU/TCP transfer function, but also provides DeviceNet and Modbus/TCP gateway function. I-7243D solves a mission-critical problem: connecting an existing DeviceNet network to Ethernet-base PLCs and PC-based configuration and monitor system. It enables DeviceNet networks to be coupled together over the Internet/Ethernet, whereby remote monitoring and control is possible. On DeviceNet network, it provides “Predefined Master Connection Set”, and supports Group 2 only Server functions to communication with slave devices. On the Ethernet network, it acts as a Modbus TCP server. Users can use Modbus TCP class 0, class 1 and partial class 2 function to communicate with I-7243D. In addition, we also provide friendly utility software for users to configure their device parameters of the I-7243D.

Features:

• 1K VDC isolation on CAN side.
• 10/100 BASE-T DM9000AE compatible Ethernet Controller
• Support one RS-232 port, one RS-485 port and one CAN port
• Built-in self-tuner ASIC controller on RS-485 port
• 7-segment LED display.
• DeviceNet network status led: MS LED , NS LED , RUN LED
• Programmable DeviceNet Master MAC ID.
• Programmable DeviceNet transfer-rate 125K, 250K, 500K.
• Supports maximum DeviceNet devices up to 63
• Predefined Master/Slave Connection Set
• Supports I/O Operation Mode: Poll, Bit-Strobe and Change Of State/Cyclic
• Supports one Poll, one Bit-Strobe, one COS, one Cyclic IO connection for each DeviceNet device when connected with this module.
• Supports on-line adding device into and removing device from DeviceNet network.
• Supports boot-up auto communicate with slave devices.
• Converters single Mobbus/TCP to multi Modbus/RTU, set by Utility
• Supports VxComm technique for every COM ports of I-7243D, set by Utility
• Allowed max 25 Modbus TCP clients access simultaneously
