Matlab_LinCon_Driver v1.0 for LinCon-8000 is released



Introduction :
LinCon-8000 is the ¡§Linux Embedded Controller¡¨ developed by ICP DAS and now users can use Matlab/Simulink to develop LinCon-8000 control program. There are over 20 I/O modules and system-level Simulink Blocksets have been supported. By using Simulink development environment, control algorithm can be easily constructed and verified without writing any code. By pressing one button, users can convert a model to an executable file for LinCon-8000. Then download it to LinCon for test or practical application via Ethernet. The Rapid Controller Prototyping ( RCP ) will be realized and engineers can put more focus on advanced control algorithm design. The time cycle for products will be reduced.




The following are the features of Matlab driver :
           1. Supports Matlab version ¡G Matlab v6.5
           2. Development Environment¡GWindows 98/2000/XP
           3. Supports Target Embedded Controller¡GLinCon-8000
           4. Support I-8000 series I/O Modules
           5. Ethernet GUI Communication Interface
           6. Reduce the design cycle of products by Matlab RTW¡]Automatic Code Generation¡^
           7. The source code produced by Matlab RTW is open for users.

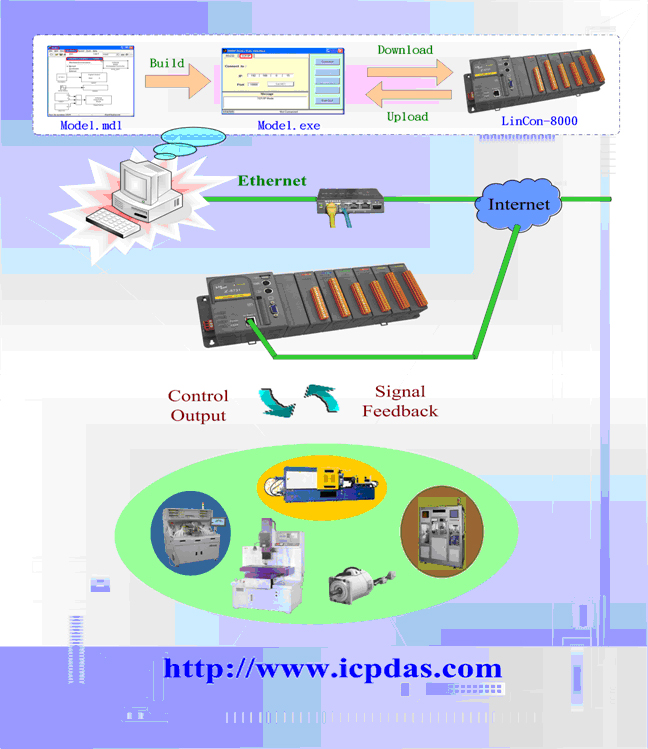

Procedures for building the application :
           1. Construct control model by Simulink
           2. Push ¡§Build¡¨ button to produce a LinCon executable file
           3. Download the *.exe to LinCon-8000 via Ethernet
           4. Run the program through Matlab GUI.

For more information, please refer to website ¡G
http://www.icpdas.com/products/PAC/lincon-8000/matlab_lincon.htm
