New Product Available: I-7188EF-016



The I-7188EF-016 is an £gPAC (Programmable Automation Controller) with isolated FRnet, Ethernet, RS-485 and RS-232 ports

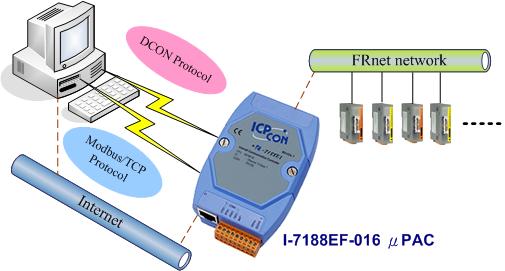

I-7188EF-016 is designed to make that the Host PC easily access the FRnet I/O module via Ethernet. I-7188EF-016 controls the distributed FR-2000 and FR I/O module via FRnet , and provides the Modbus and DCON protocol for HOST PC to access these FR I/O channels via Ethernet.

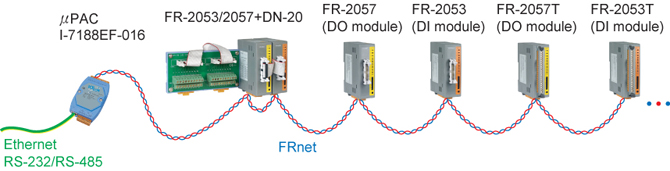

Each I-7188EF016 can control a maximum of with 16 groups of FRnet I/O, each group having a maximum of 16 I/O channels. In other words, each I- 7188EF-016 can control a maximum of 128 digital input channels and 128 digital output.



FRnet Feature

  • One FRnet port to expand distributed I/O module


  • High speed deterministic I/O control
    • Communication speed: 250Kbps
    • Scan time: 128 input / 128 output points @ 2.88 mS
  • Real I/O synchronization capability
  • Non-protocol communication
  • Easy used memory-mapping I/O programming
  • Two wire cabling

PAC System Feature

  • Modbus protocol
  • ASCII-based protocol (DCON Protocol)
  • DCON utility support I-7188EF-016 (V4.4.1)
  • Various DCON SDK provided (free)
  • Firmware modifiable (SDK)
  • Built-in Watchdog (0.8 seconds)
  • Built-in power protection and network protection circuit
Reference
Please refer to http://www.icpdas.com/products/Remote_IO/frnet/I-7188ef-016.htm for more information
