ICP DAS's New Product: I-7242D DeviceNet/Modbus RTU Gateway
|
|
|
|
|
|
 |
|
|
|
|
|

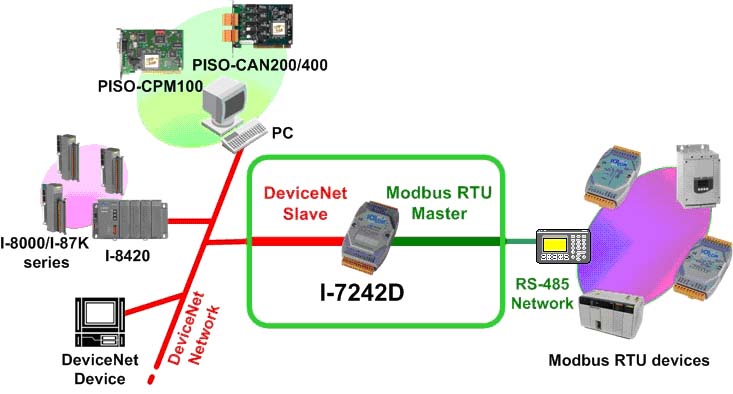

The I-7242D is one of CAN bus products in ICP DAS and stands as a DeviceNet slave/Modbus RTU master Gateway device. It allows a master located on a DeviceNet network to enter a dialogue with slave device on the Modbus RTU network. Users can easily apply Modbus RTU devices in DeviceNet applications through the I-7242D. It can be used in the application of building automation, remote data acquisition, environment control and monitoring, laboratory equipment & research, factory automation, etc.
DeviceNet Features
|
|
|
|
- Comply with DeviceNet specification Volume I, Release 2.0 & Volume II, Release 2.0.
- "Group 2 only server" DeviceNet subscriber
- Dynamic Assembly Objects Mapping
- On-line change baud rate and MAC ID of CAN
- MS, NS and IO LED indicators
- Five 7-segmemt displays show the information of operation mode, MAC ID, baud rate and error code
- Connection supported:¡@
1."Explicit Connection"
2. "Polled Command/Response" connection
3."Bit Strobed Command/Response" connection
4."Cnange-of-State/Cyclic" connection
- Configuration facilitated by the use of specific EDS files.
- Configure user-defined Modbus RTU message by Explicit connection
|
|
|
Modbus RTU Features |
|
|
|
-
Maximum number of devices: 10 Modbus devices
- Communication speed: 1200¡B2400¡B4800¡B9600¡B19200¡B38400¡B57600 or 115200 bits/s, configured by using Utility.
- Data bits: 8 bits, configured by using Utility
-
Parity bits: None, even or odd, configured by using Utility
- Stop bits: 1 or 2 bits, configured by using Utility
-
Support Modbus function codes: 0x01¡A0x02¡A0x03¡A0x04¡A0x0F and 0x10.
|
|
|
For more information, please refer to ¡K¡K
