iKAN LED Display

The iKAN can be employed as a large HMI with a memory storage of up to 128 messages (user-defined priority), each of which can be used to display information generated by a PLC. A range of seven colors is available for the text, including red, blue, yellow, green, light blue, purple and white, which can be used to indicate warnings or alarms, as well as increasing the readability of a message.

The iKAN can be used to read indoor air quality monitoring data from an external DL-302 module, including the carbon dioxide level, temperature and humidity, and then display the information in real-time, making it suitable for commercial and public buildings, such as schools and museums, as well as for retail, leisure and healthcare facilities where personnel are required to stand for long periods of time, and where the indoor air quality is required to be monitored and displayed at the entrance or lobby of the building.

The iKAN LED Display features a special register area for a PC or PLC to write Unicode character values via the Modbus TCP/RTU communication protocol. The iKAN LED Display will immediately show the Unicode text message written in this area. Users can use this function to dynamically update text message content. For sites limited to using an RS-485 communication interface, this function provides a flexible way to implement dynamic message updates.

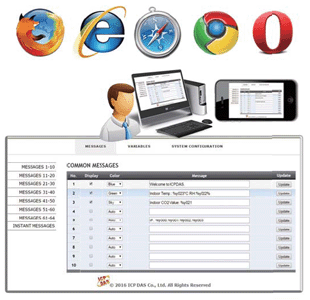

The iKAN has built-in two-channel Digital Input (DI) and supports a DI signal trigger message display function. Users can set the message number corresponding to each DI channel on the web page. Once a DI is activated, the corresponding message content will be displayed on the iKAN immediately. This feature can be applied to various applications, including liquid leak detection, hazardous gas detection, and indoor air quality monitoring.
