USB I/O

ICP DAS USB series I/O modules are highly fl exible solution to acquire or output data. User can build up own PC-based control, laboratory research, testing and so on by applying ICP DAS USB series I/O modules. The advantages of ICP DAS USB I/O modules are small size, portable, plug & play and various input type to help user build up own project easily and quickly in different fi eld and application. These I/O modules can be applied in wide range application, ex: fan-less control or measurement, automatically testing systems…etc. ICP DAS provides two kinds of USB series I/O as below.

1. USB-2000 and USB-2200 I/O Modules:

It provides 10kS/s data acquisition functionality and powered by USB port. User can apply this to real-time demanded application, ex: vibration current measurement.

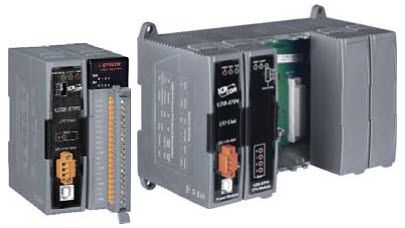

2. USB-87Pn I/O Expansion Unit:

We also developed USB-87Pn, a series of USB remote I/O unit for compact and modular I/O expansion. It comprises a CPU, a power module and a backplane with a number of I/O slots for fl exible I/O configuration.

The brief comparison is as the following table:

Model Name USB-2000 USB-2200 USB-4000 USB-87Pn
Pictures USB-2000 USB-2200 USB-4000 RU-87Pn
USB Connector USB type B IN: Type A to type C
OUT: Type C to Type C		 Micro USB USB type B
Daisy-Chain Wiring - Yes (USB) -
Lockable Cable Yes No
Protocol USB HID Mass Storage Modbus RTU DCON (ASCII Format)
Driver Built-in Windows /Linux Virtual COM driver
for Windows 10		 Virtual COM driver
for Windows, Linux
Power Supply USB port  USB port
+10 ~ +30 VDC		 USB Port +10 ~ +30 VDC
Speed 12 Mbit/s
(USB 2.0 Full-Speed)		 480 Mbit/s
(USB 2.0 High-Speed)		 12 Mbit/s
 (USB 2.0 Full-Speed)		 115200 bps  (default)
I/O Slots - - - 1/2/4/8
Dimensions
W x L x H)
(Units: mm)		 33 x 78 x 107
31 x 129 x 147		 31 x 166 x 129
56 x 180 x 144		 113 x 169 x 29
113 x 169 x 54		 64 x 120 x 110 (Min.)
312 x 132 x 111 (Max.)
Utility USB I/O Utility USB-4018H Utility DCON Utility Pro
SDK/Sample VB, C++, C#.Net, VB.Net , LabVIEW, Python, Linux driver VB, C++, C#.Net, VB.Net , LabVIEW, Python,  InduSoft,
Linux, OPC server


Features:

  • USB bus powered - Plug and Play

  • Dual Watchdog - Hardware and Communication WDT

  • Power On Value & Safe Value - When output module power-on, reset, or communication timeout

  • Highly Reliable Under Harsh Environment - From -25 to 75°C

USB-2000 I/O modules

ICP DAS USB series I/O modules are highly flexible solution to acquire or output data. User can build up own PC-based control, laboratory research, testing and so on by applying ICP DAS USB series modules. The advantages of ICP DAS USB I/O modules are small size, portable, USB bus powered and various input type to help user build up own project easily and quickly in different field and application.
Compare with traditional PC I/O card, it is waste of time to open chassis and configure I/O board. In ICP DAS USB I/O, you will enjoy the simply controlling I/O in the efficient way. ICP DAS USB I/O equips USB bus powered feature, one cable to access I/O and provide power without additional power wiring. ICP DAS USB I/O is a small size module. You can apply these I/O modules in wide range application, ex: fan-less control or measurement, automatically testing with BOX-PC…etc. ICP DAS USB I/O provides 10kS/s data acquisition functionality. User can apply this to real-time demanded application, ex: noise measurement.

Applications

Automatic control, Automatic testing and Laboratory research
USB-2000_Applications

Features

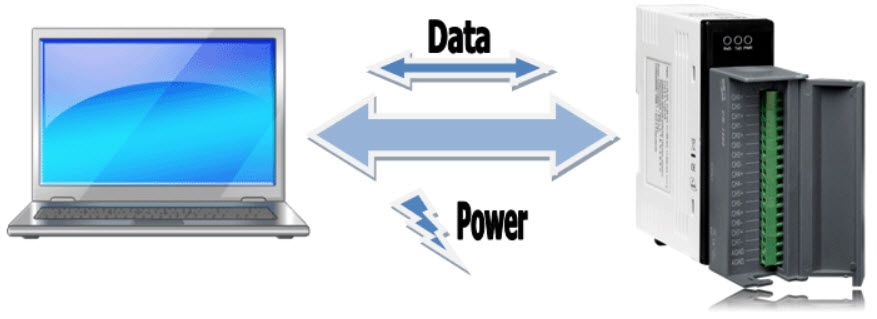

 USB bus powered

The ICP DAS USB I/O series module can be powered by PC. Both data and power can be carried through an USB cable eliminating the need for additional wiring and power supply.

 Dual Watchdog

The Dual Watchdog is consists of a Module Watchdog and a Communication Watchdog. The action of output is also associated to the Communication Watchdog.

Module Watchdog is a built-in hardware circuit to monitor the operation of the module and will reset the CPU if a failure occurs in the hardware or the software.

Communication Watchdog is a software function to monitor the communication between the host and the ICP DAS USB I/O module. The timeout of the communication Watchdog is programmable, when the ICP DAS USB I/O doesn't receive commands from the host for a while. The watchdog forces the output to Pre-Programmed Safe Value to prevent unpredictable damage of the connected devices.


 Power On Value & Safe Value

Besides setting value to output modules, the output modules can be set under two other conditions.

Power On Value: The Power On Value is loaded into the output modules under 3 conditions: power on, reset by Module Watchdog, reset by reset command.

Safe Value: When the Communication Watchdog is enabled and a Communication Watchdog timeout occurs, the "Safe Value" is loaded into the output modules.


 Highly Reliable Under Harsh Environment

Highly Reliable Under Harsh Environmen
  • Operating Temperature: -25 ~ +75 °C
  • Storage Temperature: -40 ~ +85 °C
  • Humidity 10 ~ 90% RH (non-condensing)
Analog I/O
Model AI AO
Channel Resolution Input Type Sampling Rate Channel Resolution Output Type
USB-2019/S

 8 16-bit 15 mV, 50 mV, 100 mV, 150 mV, 500 mV,
1 V, 5 V, 10 V,
20 mA, 0~20 mA, 4~20 mA,
J, K, T, E, R, S, B, N, C, L, M, LDIN43710		 10 Hz - - -

Multifunction I/O
Model AI AO DI DO
Channel Resolution Sampling Rate Channel Resolution Output Type Channel Type Channel Type Rating
USB-2026

 5 14/12 10/200 Hz 2 12 - 2 Dry, Source 2 OC, Sink 700 mA

Digital I/O
Model DI DO
Channel Input Type Channel Type Rating
USB-2045

 - - 16 Open Collector, Sink 700 mA/Channel
USB-2045-32

 32 500 mA/Channel
USB-2051

 16 Dry, Source - - -
Wet, Sink/Source
USB-2051-32

 32 Dry, Source
Wet, Sink/Source
USB-2055

 8 Dry, Source 8 Open Collector, Sink 700 mA/Channel
Wet, Sink/Source
USB-2055-32

 16 Dry, Source 16 600 mA/Channel
Wet, Sink/Source
USB-2060

 6 Dry, Source 6 Power Relay, Form A
(SPST N.O)		 5 A
Wet, Sink/Source
USB-2064

 - - 8 Form A (SPST N.O.)
USB-2064-16

 16 3 A
USB-2068-18

 10 Dry, Source 8 Signal Relay, Form C (DPDT) 2 A @ 30 VDC
0.24 A @ 220 VAC
Wet, Sink/Source

Pulse I/O
Model Pulse Input Pulse Output
Channel Input Type Isolation Channel Resolution Output Type
USB-2084

 4 Up/Down (CW/CCW)
4 Dir/Pulse (Bi-direction)
4 A/B Phase (Quadrant Counting)
8 Up Counter, Frequency		 TTL: 500 KHz Max.
Isolated: 250 KHz Max.		 2500 VDC - - -


USB-2200 I/O modules

ICP DAS USB series I/O modules are highly flexible solution to acquire or output data. User can build up own PC-based control, laboratory research, testing and so on by applying ICP DAS USB series modules. The advantages of ICP DAS USB I/O modules are small size, portable, USB bus powered and various input type to help user build up own project easily and quickly in different field and application.
Compare with traditional PC I/O card, it is waste of time to open chassis and configure I/O board. In ICP DAS USB I/O, you will enjoy the simply controlling I/O in the efficient way. ICP DAS USB I/O equips USB bus powered feature, one cable to access I/O and provide power without additional power wiring. ICP DAS USB I/O is a small size module. You can apply these I/O modules in wide range application, ex: fan-less control or measurement, automatically testing with BOX-PC…etc. ICP DAS USB I/O provides 10kS/s data acquisition functionality. User can apply this to real-time demanded application, ex: noise measurement.

Applications
Automatic control, Automatic testing and Laboratory research

Features

Built-In USB Hub with Support for Daisy Chaining
The USB-2200 module is equipped with a USB hub that supports daisy chain topologies.
This feature frees up the PC USB ports by enabling more than one USB-2200 module to be integrated into a single system.
Note：The USB 2.0 port provides only 500mA, external power is required when multiple modules are connected to the same USB port. Please refer to the following figure shown daisy chain application.

USB-2200_Daisy_Chaining
Note：Support daisy-chain, max. 5 nodes.

Redundant Power
The USB-2200 modules support two power inputs for enhanced redundancy with a voltage range of +10 to +30 VDC. For modules connected to two power input sources, if one source is inactive or interrupted, the other power source is capable of taking over immediately. The USB-2200 modules can operate as normal with only a single power source. (If not using the USB hub function, the module can be powered via a USB 2.0 port.)

BoardID Switch
The  USB-2200  series  modules  feature  a  built-in  Rotary  switch  (BID)  that  is  used  to define each module’s board ID. When multiple modules are integrated on the same system, the board ID switch is useful for identifying each module’s device number. After setting all the USB-2200 modules, users can identify each module in the system using their device numbers. The default Board ID value is 0.

Dual Watchdog
The Dual Watchdog is consists of a Module Watchdog and a Communication Watchdog. The action of output is also associated to the Communication Watchdog.

Module Watchdog is a built-in hardware circuit to monitor the operation of the module and will reset the CPU if a failure occurs in the hardware or the software.
Communication Watchdog is a software function to monitor the communication between the host and the ICP DAS USB I/O module. The timeout of the communication Watchdog is programmable, when the ICP DAS USB I/O doesn't receive commands from the host for a while. The watchdog forces the output to Pre-Programmed Safe Value to prevent unpredictable damage of the connected devices.

Power On Value & Safe Value
Besides setting value to output modules, the output modules can be set under two other conditions.
Power On Value: The Power On Value is loaded into the output modules under 3 conditions: power on, reset by Module Watchdog, reset by reset command.
Safe Value: When the Communication Watchdog is enabled and a Communication Watchdog timeout occurs, the "Safe Value" is loaded into the output modules.

Highly Reliable Under Harsh Environment
  • Operating Temperature : -25 ~ +75 °C
  • Storage Temperature : -40 ~ +85 °C
  • Humidity 10 ~ 90% RH (non-condensing)
Digital I/O
Model DI DO
Channel Input Type Channel Type Rating
USB-2245-32 - - 32 Push-Pull, Sink/Source
(NPN/PNP)		 50 VDC @ 600 mA/Channel
USB-2245-64 64 50 VDC @ 500 mA/Channel
USB-2251-32 32 Dry, Source
Wet, Sink/Source		 - - -
USB-2251-64 64
USB-2255-32 16 Dry, Source
Wet, Sink/Source		 16 Open Collection, Sink (NPN) 50 VDC @ 600 mA/Channel
USB-2255-64 32 32 50 VDC @ 500 mA/Channel
USB-2260-24 16 Dry, Source
Wet, Sink/Source		 8 Form A (SPST N.O) 250 VAC @ 3 A/Channel
24 VDC @ 3 A/Channel
USB-2260A-24 AC-SSR 265 VAC @ 1 A/Channel
USB-2260B-24 DC-SSR 30 VDC @ 1 A/Channel
USB-2260C-24 PhotoMOS Relay 80 VDC/VAC @ 1 A/Channel
USB-2260-48 32 Dry, Source
Wet, Sink/Source		 16 Form A (SPST N.O) 250 VAC @ 3 A/Channel
24 VDC @ 3 A/Channel
USB-2260A-48 AC-SSR 265 VAC @ 1 A/Channel
USB-2260B-48 DC-SSR 30 VDC @ 1 A/Channel
USB-2260C-48 PhotoMOS Relay 80 VDC/VAC @ 1 A/Channel
USB-2261-16 - - 16 Form A (SPST N.O) 250 VAC @ 3 A/Channel
24 VDC @ 3 A/Channel
USB-2261A-16 AC-SSR 265 VAC @ 1 A/Channel
USB-2261B-16 DC-SSR 30 VDC @ 1 A/Channel
USB-2261C-16 PhotoMOS Relay 80 VDC/VAC @ 1 A/Channel
USB-2261-32 - - 32 Form A (SPST N.O) 250 VAC @ 3 A/Channel
24 VDC @ 3 A/Channel
USB-2261A-32 AC-SSR 265 VAC @ 1 A/Channel
USB-2261B-32 DC-SSR 30 VDC @ 1 A/Channel
USB-2261C-32 PhotoMOS Relay 80 VDC/VAC @ 1 A/Channel


Multifunction I/O
Model AI AO DI DO
Channel Resolution Sampling Rate Channel Resolution Range Channel Type Channel Type Rating
USB-2226 8 14-bit/12-bit 10/200 Hz 4 12-bit Voltage: +0 ~ +5 VDC, +0 ~ +10 VDC, ±5 VDC, ±10 VDC Current: +0 ~ +20 mA, +4 ~ +20 mA 8 Dry, Source 8 Open Collector, Sink 50 VDC @ 500 mA/Channel


Analog I/O
Model AI AO
Channel Resolution Input Type Sampling Rate Channel Resolution Range
USB-2217 8 16-bit ±150 mV, ±500 mV, ±1 V, ±5 V, ±10 V, ±20 mA,
0 ~ +20 mA, +4 ~ +20 mA		 10k Hz
(per channel)		 -
USB-2217H 8 16-bit ±2.5 V, 0 ~ +5 V, ±5 V, 0 ~ +10 V, ±10 V,
0 ~ +20 mA, ±20 mA, +4 ~ +20 mA		 200k Hz
(per channel)		 -
USB-2224 - - - - 4 16-bit ±5 V, ±10 V, ±20 mA,
0 ~ +20 mA, +4 ~ +20 mA
USB-AR400 4 24-bit ±1.25 V, ±2.5 V, ±5 V, ±10 V 256k Hz
(per channel)		 -

Analog I/O
Model AI
Channel Resolution Sampling Rate Input Type Isolation
USB-4018HS 8 16-bit 100 Hz
(each channel)		 Thermocouple : J, K, T, E, R, S, B, N, C, L, M, LDIN43710 3000 VDC
USB-4018HS-16 16

USB-87Pn series is a intelligent I/O expansion unit, it features USB communication interface, hot swap, and most of all, this I/O unit can expand its functions by putting in any kind of I-87K series (High profile) modules. It used for industrial monitoring and controlling applications. There are more than 30 I/O modules supported with the unit, including analog input/output, digital input/output, and counter/frequency I/O modules.
Various software development kits (SDK) and demos are provided, such as DLL, ActiveX, LabVIEW driver, InduSoft driver, Linux driver, OPC Server, etc. The I-87K series I/O modules plugged in the USB-87Pn can be easily integrated into variant software system.
Intelligent USB I/O Expansion Unit
Supported I/O modoules - I-87k series module
Model USB 2.0 Interface I/O Expansion Slot
Baud Rate Communication Protocol Auto Configuration Hot Swap Slot Number
USB-87P1 115200 bps (Default) DCON Protocol (ASCII Format) Yes
Yes
 1
USB-87P2 2
USB-87P4 4
USB-87P8 8


Please refer to the link below for details: https://www.icpdas.com/en/product/p04.php?root=68&kind=714
