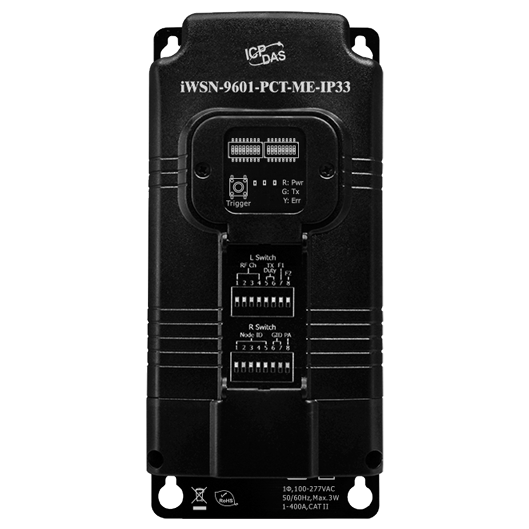

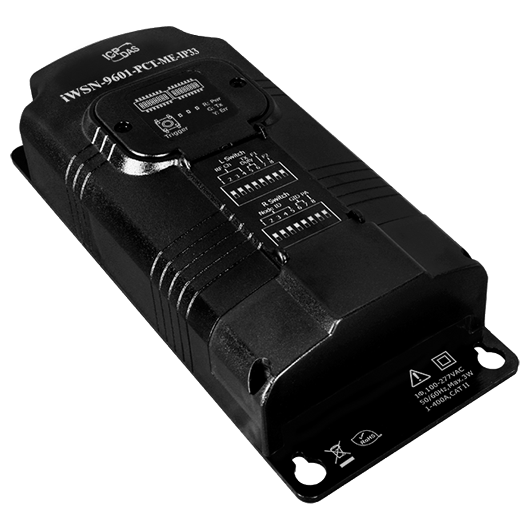

iWSN-9601-PCT-ME-IP33
iWSN Wireless single-phase 6-loop intelligent power meter
Features
- Single-phase 6-loop AC circuit measurement
- Supports split current transformer (CT)
- Bi-direction kWh measurement
- True RMS calculations for voltage and current signals
- Powers by the measured voltage cable; no extra power wiring is needed
- Built-in 2A Fuse to keep the main circuit safe
- Timestamp for each measured data by the built-in RTC
- 3-minute history data cache for supplement
- Uses 433MHz radio frequency and provides max. 64 wireless sub-network.
- IP33 protection to prevent from circuit short by fire sprinkler system

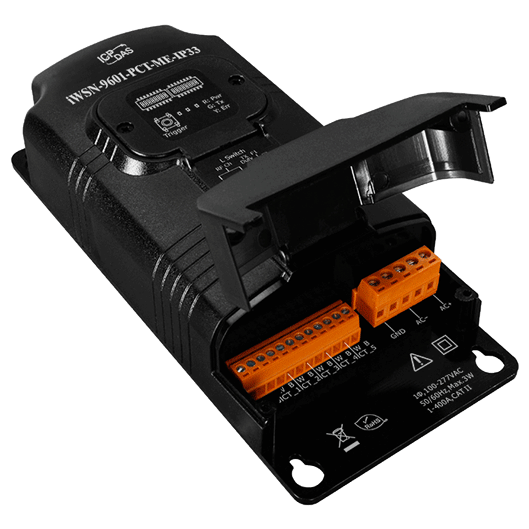

- Connector cover to avoid the exposed connector and electric shock
Introduction
The iWSN-9601 series module is a single-phase AC power meter, which provides one single-phase voltage input and 6 current CT inputs, and suits measuring the power information of different equipment powered by the same AC source. By means of wireless communication and powering from the measured voltage cable, it can greatly reduce the cost and duration of installation, and satisfy to the demand of distributed deployment and quick setup. Moreover, the features of Sub-GHz radio frequency and data supplement mechanism effectively improve the reliability of the wireless communication especially in the crowed or seriously shielded space of the factory environment. Consider the maintenance and installation issues, the iWSN-9601 series module is configured by the DIP switches, and uses special housing with IP33 protection to avoid the circuit short while the fire sprinkler system is activated if the module is located out of the panel box. Through the design of RTC and data timestamp, the iWSN-9601 series can fit the power saving applications, such as machine and process power efficiency improvement, power information administration, calculation of carbon emission, predictive maintenance, and big data analysis of power consumption.
Applications
- Machine and process power efficiency improvement
- Power information administration
- Calculation of carbon emission
- Predictive maintenance
- Big data analysis of power consumption
Ordering Information
| PRODUCT SERIES | DESCRIPTION | QNT. | INQUIRY |
|---|---|---|---|
This combination include other products.
Similar Products
| EMS Protection | |
|---|---|
| EFT (IEC 61000-4-4) | +/- 500 V |
| ESD (IEC 61000-4-2) | +/- 4 kV Contact |
| LED Indicators | |
|---|---|
| Status | 1 x Power 1 x Tx 1 x Error |
| AC Power Measurement | |
|---|---|
| Wiring | 1P2W-1CT |
| Loops | 6 |
| Input Voltage | Single phase 58 - 277 VAC |
| Input Current | 1A ~ 400A, depended on the connected CTs which refer to the accessories. |
| Input Frequency | 50/60 Hz |
| Wh Accuracy | Better than 2% (PF=1) |
| Power Parameter Measurement | True RMS voltage (Vrms), True RMS current (Irms), Active Power (kW), Active Energy (kWh), Power Factor (PF), Frequency |
| Data Update Rate | 1, 10, 30, or 60 Seconds |
| CT | |
|---|---|
| Includes CTs | 0 (refer to order information for purchase) |
| Type | Split core CT |
| Max. Current | 400A depended on the selected CT type |
| Inside Diameter | 36mm depended on the selected CT type |
| Leading Cable | 8m |
| RF | |
|---|---|
| Channels | 0 ~ 15 |
| Group ID | 0 ~ 3 |
| Radio Frequency | 433.1000 ~ 434.6000 MHz |
| Transmission Power | 9±1dBm (PA Off) / 18±1dBm (PA On) |
| Transmission Distance (LoS) | 100 m |
| Node ID | 1 ~ 31 |
| Working Duty | 1, 10, 30, or 60 Seconds |
| Power | |
|---|---|
| Consumption | 3W |
| Input Type | Single phase 58 - 277 VAC |
| Mechanical | |
|---|---|
| Dimensions (mm) | 85 x 184 x 47 (W x L x H) |
| Installation | Wall-mount |
| Ingress Protection Rating | IP33 |
| Environment | |
|---|---|
| Operating Temperature | -30 °C ~ +50 °C |
| Storage Temperature | -40 °C ~ +55 °C |
| Humidity | 10 ~ 90% RH, Non-condensing |
