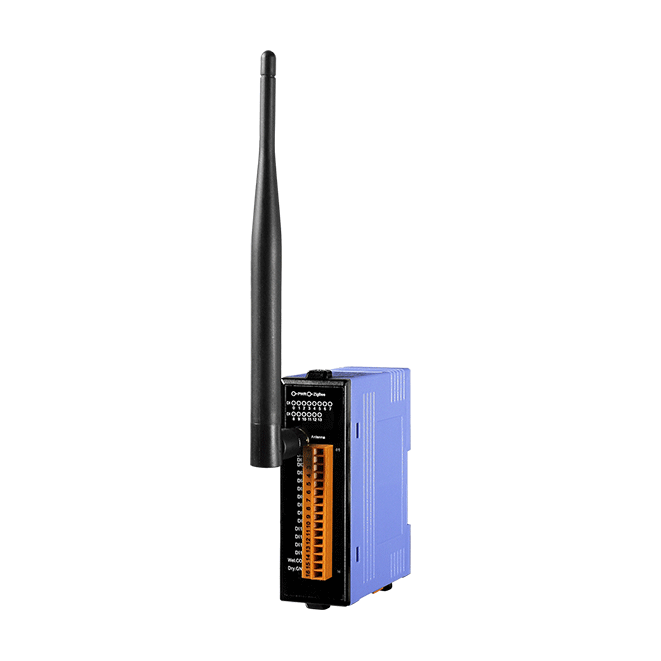

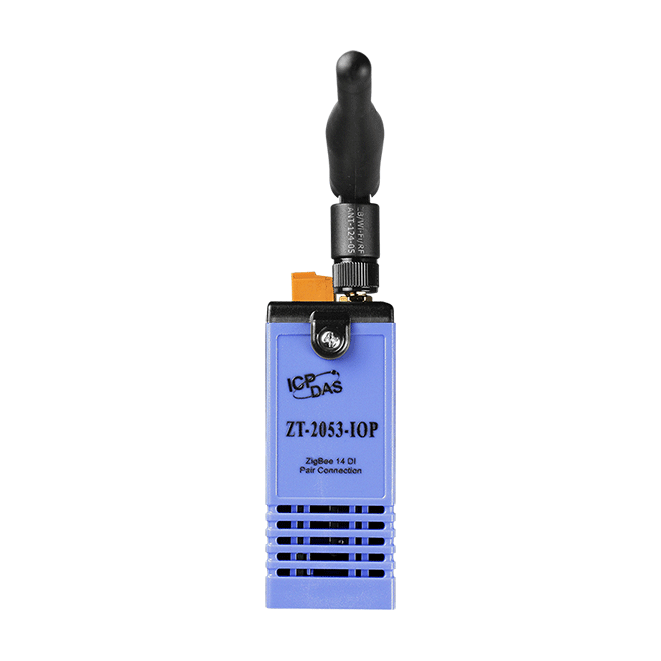

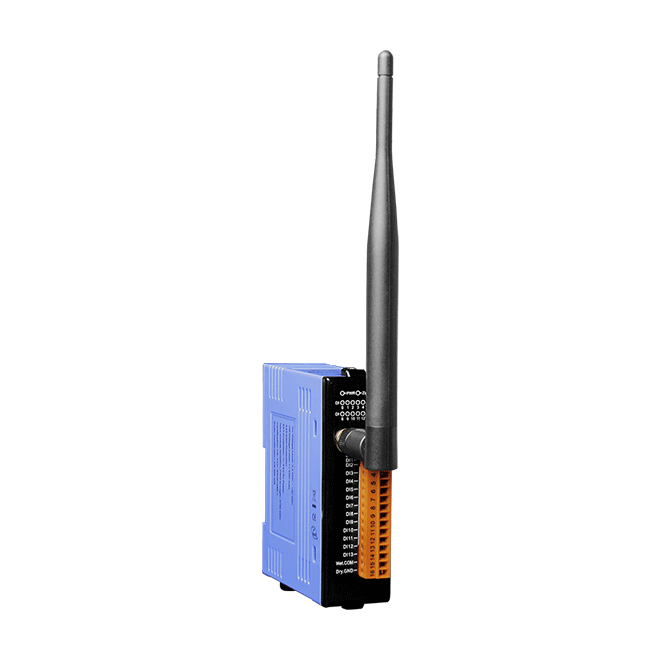

ZT-2053-IOP
ZigBee I/O Pair-connection Module with 14-ch Isolated DI (ZigBee Coordinator) (Asia Only)
Features
- ISM 2.4 GHz Operating Frequency
- Fully Compliant with 2.4G IEEE 802.15.4/ZigBee Specifications
- Wireless Transmission Range up to 700 m (Default)
- Adjustable RF Transmission Output Power
- 14 Channels Pair-connection of the Digital Input
- DO Safe Value setting for Wireless Disconnection Monitoring
- Configurable I/O Pairing Number
- Surge and ESD Protection
- Supports AES-128 Encryption for the Wireless Communication
- DIN-Rail Mountable
Introduction
The ZT-2053-IOP module acts as a ZigBee coordinator that provides 14-channel digital input pair-connection function with module of ZT-2043 (14-ch sink type digital output). An embedded I/O channel binding function means that there is no need to use an external controller. The status of each ZT-2053-IOP channel triggers the corresponding remote digital output channels on the ZT-2043 module. The ZT-2053-IOP continually transmits updates on the status of the digital input channels to the remote ZT-2043 to ensure that the digital output channels are synchronized. The ZT-2053-IOP also provides external DIP switches for easy configuration, which can be used to synchronize the digital signals in any environment where wiring is difficult.
Applications
Building Automation, Factory Automation, Machine Automation, Remote Maintenance, Remote Diagnosis, Testing Equipment.
Ordering Information
| PRODUCT SERIES | DESCRIPTION | QNT. | INQUIRY |
|---|---|---|---|
This combination include other products.
Similar Products
| Isolation | |
|---|---|
| Intra-module Isolation | 3750 VDC |
| EMS Protection | |
|---|---|
| EFT (IEC 61000-4-4) | 4 kV for Power Line |
| ESD (IEC 61000-4-2) | 4 kV Contact for Power Line, Communication Line and each Channel, 8 kV Air for Random Point |
| Surge (IEC 61000-4-5) | 3 kV for Power |
| LED Indicators | |
|---|---|
| Status | 1 x Power / Debug 1 x Communication 14 x Digital Input |
| ZigBee | |
|---|---|
| Antenna | 2.4 GHz, 5 Omni-Directional |
| Max. Slaves | 255 |
| Standard | ZigBee 2007 Pro |
| Transmission Power | 11 dBm (FCC Certificated) |
| Transmission Distance (LoS) | 700 m (Typical) |
| Digital Input | |
|---|---|
| Channels | 14 |
| Type | Dry + Wet Contact |
| ON Voltage Level | Dry: Close to GND Wet: +3.5 VDC ~ +30 VDC |
| OFF Voltage Level | Dry: Open Wet: Max. +1 VDC |
| Input Impedance | 3 kΩ, 0.33 W |
| Effective Distance | 500 m Max. |
| Power | |
|---|---|
| Input Range | +10 VDC ~ +30 VDC |
| Consumption | Max. 0.72 W |
| Mechanical | |
|---|---|
| Dimensions (mm) | 33 x 78 x 110 (W x L x H) |
| Installation | DIN-Rail |
| Environment | |
|---|---|
| Operating Temperature | -25 ~ +75°C |
| Storage Temperature | -30 °C ~ +80 °C |
| Humidity | 10 ~ 90% RH, Non-condensing |
