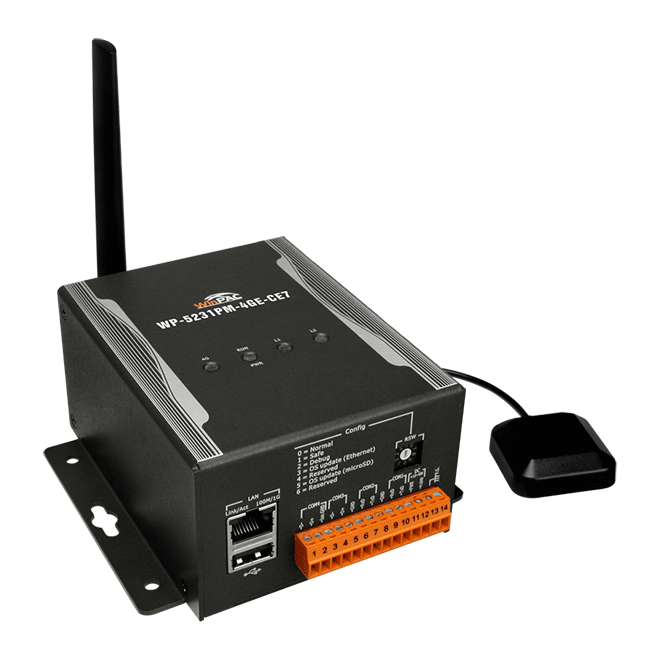

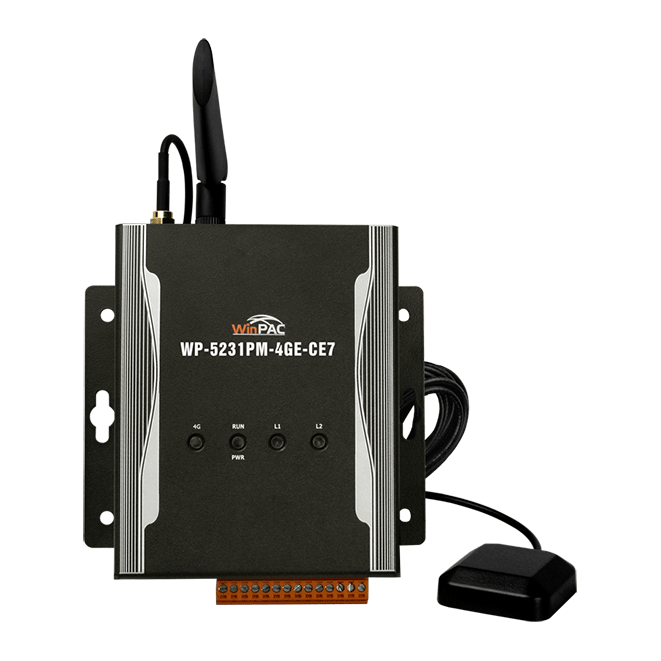

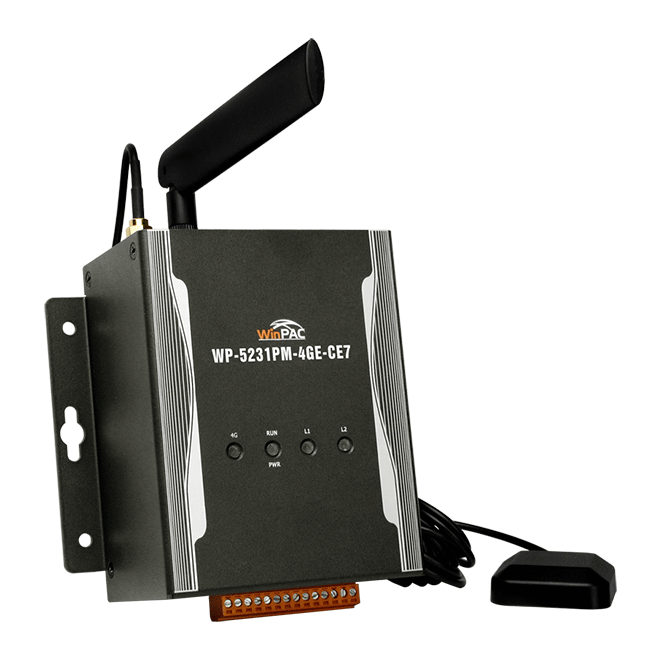

4G PAC with GPS, Cortex-A8 CPU, WinCE 7.0, 1 I/O Bus, Metal Case
Features
• Cortex-A8, 1 GHz CPU
• Windows CE 7.0
• Hard Real-Time Capability
• Rich software support
• Various Memory and Storage
‣ 512 MB SDRAM and 256 MB Flash
‣ 64 KB FRAM memory for data retention
‣ 1 x microSD socket with one microSD card
• Various Communication Interfaces
‣ 1 x 10/100/1000BASE-T Ethernet Port
‣ 4 x Serial Ports (RS-232/485)
‣ 1 x USB 2.0 (host)
• Built-In VGA Port
• Built-In Real-time clock
• 64-bit Hardware Serial Number for Software Protection
• I/O Expansion Bus Interface
• 6 x LED Indicators
• Built-In dual Watchdog Timer
• Metal casing
• Industrial Tri-band 4G module
• 4G modem
• Operating Temperature: -25 ~ +75 °C
• Windows CE 7.0
• Hard Real-Time Capability
• Rich software support
• Various Memory and Storage
‣ 512 MB SDRAM and 256 MB Flash
‣ 64 KB FRAM memory for data retention
‣ 1 x microSD socket with one microSD card
• Various Communication Interfaces
‣ 1 x 10/100/1000BASE-T Ethernet Port
‣ 4 x Serial Ports (RS-232/485)
‣ 1 x USB 2.0 (host)
• Built-In VGA Port
• Built-In Real-time clock
• 64-bit Hardware Serial Number for Software Protection
• I/O Expansion Bus Interface
• 6 x LED Indicators
• Built-In dual Watchdog Timer
• Metal casing
• Industrial Tri-band 4G module
• 4G modem
• Operating Temperature: -25 ~ +75 °C
Introduction
The WP-5231PM-4GE-CE7 is equipped a Cortex-A8 CPU (1GHz) and running a windows CE 7.0 operating system. The optional I/O expansion board, XV-board, provides highprotection I/O. Using the built-in Flash and microSD, the WP-5231PM-4GE-CE7 can save application program, image file and data. The 4G module of WP-5231PM-4GE-CE7 work on frequencies of WCDMA 2100/1900/900/850 MHz, FDD LTE:B1/B3/B5/B7/B8/B20 and GSM 850/900/1800/1900 MHz. These modules utilize the 4G and 3G network for convenient and inexpensive data transfer from remote instruments, meters, computers or control systems in either live data or packet data. These modules has the integrated TCP/IP stack so that even simple controllers with serial communications ports can be connected to the modem without the need for special driver implementation. With the features of theirs, the systems can be SMS and GPRS and 4G or 3G connection applications with our PAC.
Applications
Ordering Information
| PRODUCT SERIES | DESCRIPTION | QNT. | INQUIRY |
|---|---|---|---|
This combination include other products.
Similar Products
| Software | |
|---|---|
| OS | Windows CE 7.0 Professional |
| Service | FTP Server, Web Server (Supports VB script, JAVA script), Embedded SQL Server |
| Framework Support | .Net Compact Framework 3.5 |
| Multilanguage Support | English, German, French, Spanish, Russian, Italian, Korean, Simplified Chinese, Traditional Chinese |
| SDK | Dll for VC, Dll for Visual Studio.Net 2008 |
| Main Unit | |
|---|---|
| CPU | Cortex-A8, 1.0 GHz |
| 64-bit Hardware Serial Number | Yes |
| System Memory | 512 MB DDR3 SDRAM |
| Storage | 256 MB Flash, 4 GB microSD card (up to 32 GB) |
| Non-Volatile Memory | 64 KB FRAM |
| Real Time Clock | Provide seconds, minutes, hours, dates, day of week, month, year |
| Watchdog Timer | Dual Watchdog Timer |
| Display | |
|---|---|
| Signal | VGA |
| Resolution | 640 × 480, 800 × 480, 800 × 600, 1024 × 768 |
| LED Indicators | |
|---|---|
| Status | 1 x System/Power, 2 x Programmable, 1 x 4G Active |
| 3G System | |
|---|---|
| Data Transmission Rate | DC-HSPA+ Download: Max. 42 Mbps, Upload: Max 5.76 Mbps; TD-SCDMA Download: Max. 4.2 Mbps, Upload: Max 2.2 Mbps; CDMA2000 EVDO Download: Max. 14.7 Mbps, Upload: Max 5.4 Mbps |
| Frequency Band | WCDMA 850/900/2100 MHz |
| 4G System | |
|---|---|
| Data Transmission Rate | Download Max: 100 Mbps, Upload: Max 50 Mbps |
| Frequency Band | FDD LTE: B1/B3/B5/B7/B8/B20 MHz |
| GPS/GNSS | |
|---|---|
| Channels | 32 |
| Protocol | NMEA 0183 |
| GSM | |
|---|---|
| Data Transmission Rate | Downlink transfer: Max. 85.6 kbps, Uplink transfer: Max 42.8k bps |
| Frequency Band | GSM: 850/900/1800/1900 MHz |
| GPRS Connectivity | GPRS class 12/10, GPRS station class B |
| I/O Expansion | |
|---|---|
| I/O Type | XV-board |
| HMI | |
|---|---|
| Buzzer | Yes |
| Rotary Switch | 1 x 10 Position (0 ~ 9) |
| Ethernet | |
|---|---|
| Ports | 1 x RJ-45, 10/100/1000 Base-TX (Auto-negotiating, Auto MDI/MDI-X, LED indicators) |
| COM Ports | |
|---|---|
| Ports | 1 x RS-232, 1 x RS-485, 1 x RS-485 (2500 VDC Isolated) |
| USB | |
|---|---|
| Ports | 1 x USB 2.0 |
| Power | |
|---|---|
| Input Range | +12 ~ 48 VDC |
| Consumption | 6.5 W |
| Mechanical | |
|---|---|
| Casing | Metal |
| Dimensions (mm) | 117 x 126 x 58 (W x L x H) |
| Installation | DIN-Rail, Wall mounting |
| Ingress Protection Rating | IP30 |
| Weight | 365 g |
| Environment | |
|---|---|
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -40 ~ +80 °C |
| Humidity | 10 ~ 90 % RH, Non-condensing |
