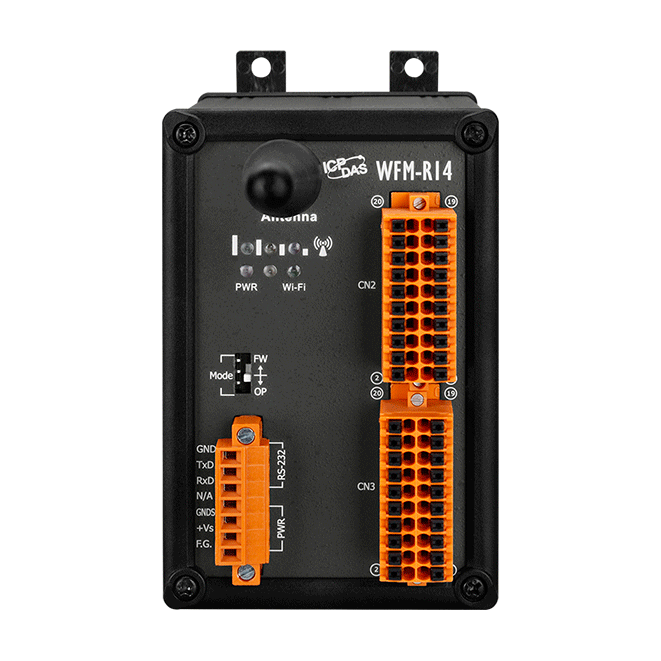

WFM-R14
Wi-Fi I/O Module with 14-ch Power Relay (Metal Case) (Asia Only)
Features
• Support Form A and Form C Relay type digital outputs
• Configurable Power-on and Safe Value Settings
• Compatible with IEEE 802.11b/g standards
• Support WEP, WPA and WPA2 wireless encryption
• Support Modbus TCP protocols
• Support DHCP network configuration
• Support pair connection mode
• ±4 kV Contact ESD Protection
• Built-in Watchdog
• Configurable Power-on and Safe Value Settings
• Compatible with IEEE 802.11b/g standards
• Support WEP, WPA and WPA2 wireless encryption
• Support Modbus TCP protocols
• Support DHCP network configuration
• Support pair connection mode
• ±4 kV Contact ESD Protection
• Built-in Watchdog
Introduction
The WFM-R14 is a 14-channel relay output module with Metal Case (RoHS) which includes stronger protection. In addition, the WFM-R14 has WLAN connection complies with the IEEE802.11b/g standards.
With the popularity of 802.11 network infrastructure, the WFM-R14 makes an easy way to incorporate wireless connectivity into monitoring and control systems.
The WFM-R14 also supports Modbus/TCP and UDP protocols and the network encryption configuration, which makes perfect integration to SCADA software and offer easy and safe access for users from anytime and anywhere.
Applications
Ordering Information
| PRODUCT SERIES | DESCRIPTION | QNT. | INQUIRY |
|---|---|---|---|
This combination include other products.
Similar Products
| Wi-Fi | |
|---|---|
| Transmission Distance (LoS) | 50 meters (LOS) |
| Standard | IEEE 802.11 b/g (non-RevB version) IEEE 802.11 b/g/n (ReVB version) |
| RX Sensitivity | -83 dBm @ 11 Mbps (non-RevB version) -93 dBm @ 11 Mbps (ReVB version) |
| Output Power | 8 dBm @ 11 Mbps (non-RevB version) 14 dBm @ 11 Mbps (ReVB version) |
| Mode | Infrastructure & Ad-hoc |
| Encryption | WEP, WPA and WPA2 |

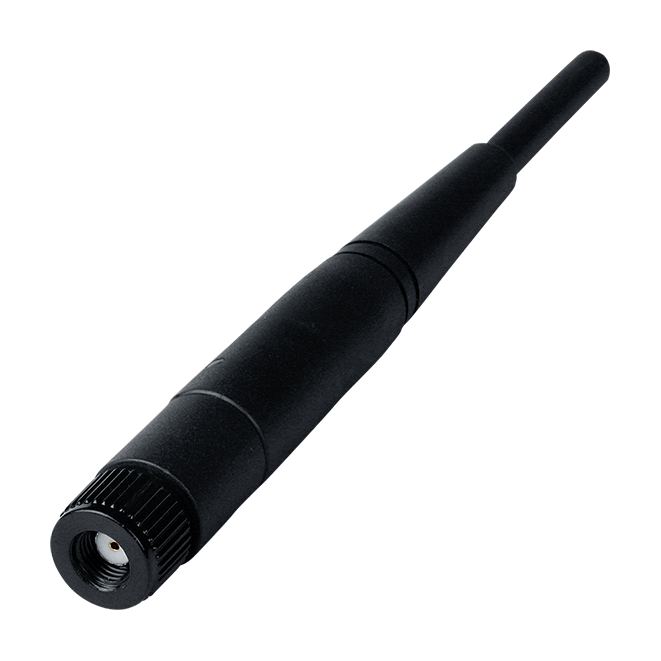

| Antenna | 5 dBi (Omni-Directional) |
| Relay Output | |
|---|---|
| Channels | 14 (2 x Form A, 12 x Form C) |
| Type | Power Relay |
| Contact Rating | Form A: 5 A 250 VAC/30 VDC 6 A 250 VAC/30 VDC |
| Operate Time | Form A: 10 ms Form C: 8 ms |
| Release Time | Form A: 5 ms Form C: 4 ms |
| Electrical Endurance | 1 x 100000 times 3 A 250 VAC/30 VDC 5 x 10000 times 5 A 250 VAC/30 VDC 1A: 6 x 10000 times 1C: (NO) 3 x 10000 times 1C: (NC) 1 x 10000 times |
| Mechanical Endurance | Form A: 2 x 1000000 times Form C: 1 x 1000000 times |
| Power | |
|---|---|
| Input Range | +10 VDC ~ +30 VDC |
| Consumption | 2.2 W |
| Mechanical | |
|---|---|
| Casing | Metal |
| Dimensions (mm) | DIN-rail mounting: 33 x 118 x 111 (W x L x H) (Without antenna) Wall mounting: 73 x 132 x 111 (W x L x H) (Without antenna) |

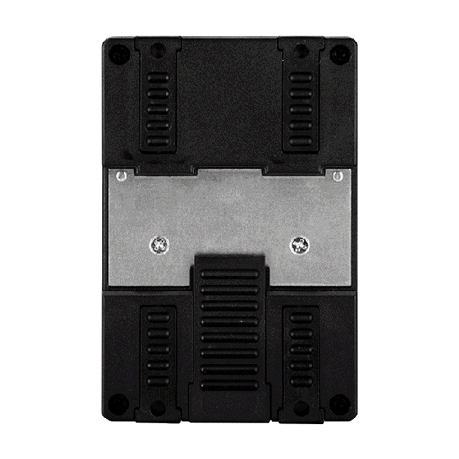

| Installation | DIN-rail mounting or wall mounting |
| Environment | |
|---|---|
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -30 ~ +80 °C |
| Humidity | 10 ~ 90% RH, Non-condensing |
