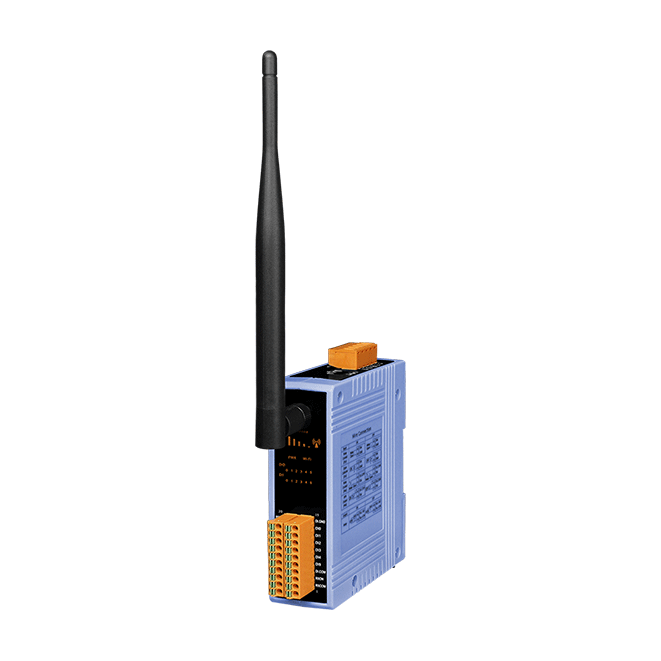

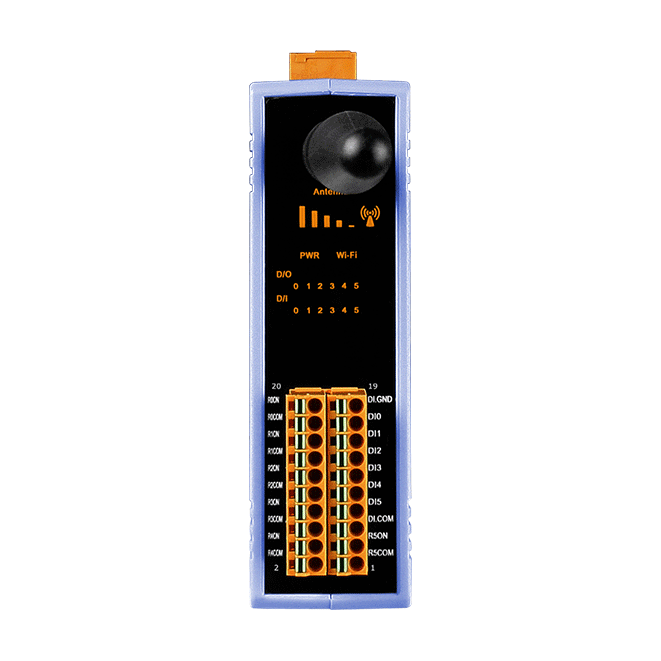

WF-2060

Wi-Fi I/O Module with Isolated 6-ch (Dry, Wet) DI and 6-ch Relay (Asia Only)

Features

• Support Relay type digital outputs
• Support sink/source type digital inputs
• Compatible with IEEE 802.11b/g standards
• Support infrastructure and ad hoc modes for wireless networks
• Support WEP, WPA and WPA2 wireless encryption
• Support Modbus/TCP and UDP protocols
• Support pair connection mode
• Support DO power on value & safe value Mechanism
• Built-in Watchdog

Introduction

The WF-2060, one member of ICP DAS WF-2000 (Wi-Fi) wireless product family, is a 6-channel isolated digital input with 32-bit counters, 6-channel power relay output module. WF-2060 in WLAN connection complies with the IEEE802.11b/g standards. With the popularity of 802.11 network infrastructure, the WF-2060 makes an easy way to incorporate wireless connectivity into monitoring and control systems. The WF-2060 also supports Modbus/TCP and UDP protocols and the network encryption configuration, which makes perfect integration to SCADA software and offer easy and safe access for users from anytime and anywhere.

Applications

Ordering Information

Available soon

Will be phased out

Phased out

PRODUCT SERIES	DESCRIPTION	QNT.	INQUIRY

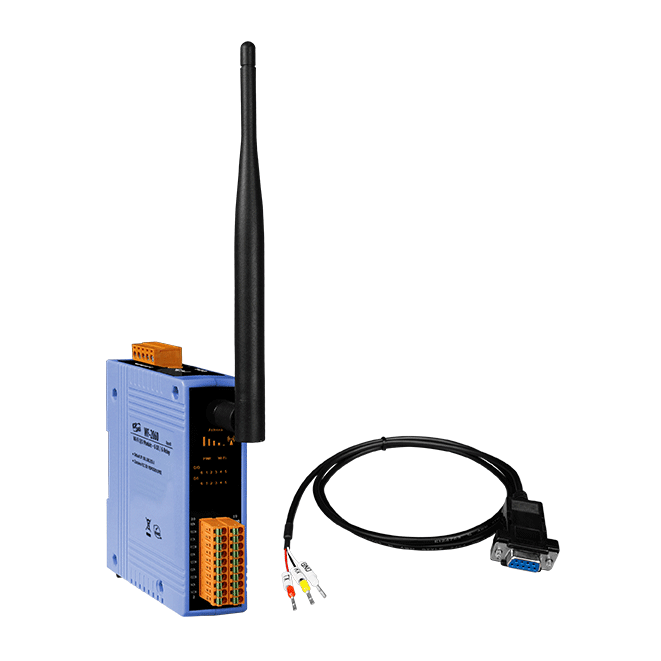

PRODUCT SERIES WF-2060 CR	DESCRIPTIONWi-Fi I/O Module with Isolated 6-ch (Dry, Wet) DI and 6-ch Relay (Asia Only) (RoHS) Includes ANT-124-05 Antenna and CA-0910 Cable

This combination include other products.

Similar Products

Available soon

Will be phased out

Phased out

Isolation
Intra-module Isolation	DI: 3750 VDC

Wi-Fi
Transmission Distance (LoS)	50 meters (LOS)
Standard	IEEE 802.11 b/g* IEEE 802.11 b/g/n**
RX Sensitivity	-83 dBm @ 11 Mbps* -93 dBm @ 11 Mbps**
Output Power	8 dBm @ 11 Mbps* 14 dBm @ 11 Mbps**
Mode	Infrastructure & Ad-hoc* Infrastructure & Limit-AP**
Encryption	WEP, WPA and WPA2
Antenna	5 dBi (Omni-Directional)

Digital Input/Counter
Channels	6 Counters: 6
Type	Dry Contact Wet Contact
Sink/Source (NPN/PNP)	Dry: Source Wet: Sink/Source
ON Voltage Level	Dry: Close to GND Wet: +10 ~ 50 VDC
OFF Voltage Level	Dry: Open Wet: +4 VDC Max.
Max. Counts	32-bit (4294967295)
Frequency	10K Hz Max.

Relay Output
Channels	6
Type	Power Relay (SPST-NO)
Contact Rating	Form A: 5 A 250 VAC (47 ~ 63 Hz) 5 A 30 VDC
Operate Time	Form A: 10 ms
Release Time	Form A: 5 ms
Electrical Endurance	100,000 times min.
Mechanical Endurance	20,000,000 times min.
