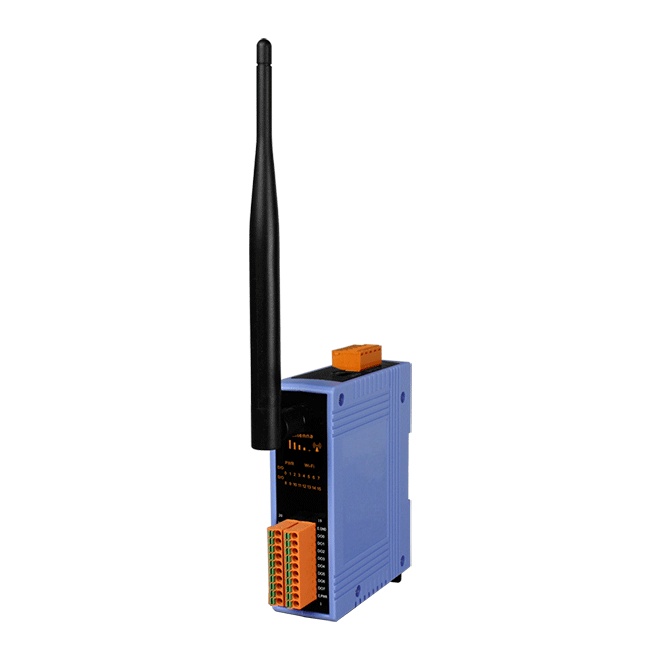

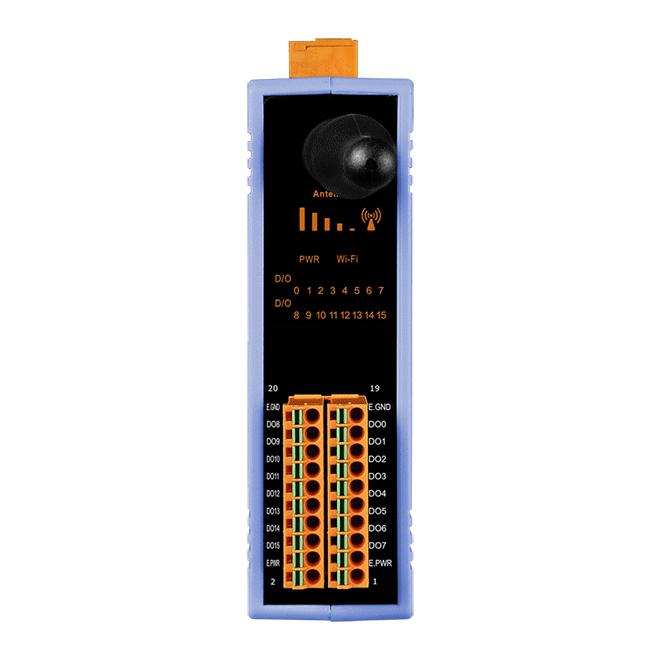

WF-2042

Wi-Fi I/O Module with Isolated 16-ch (Sink, NPN) DO (Asia Only)

Features

• Support sink type digital output
• Compatible with IEEE 802.11b/g standards
• Support Infrastructure and Ad hoc modes
• Support Modbus/TCP and UDP protocols
• Support DHCP network configuration
• Support pair connection mode
• Support DO power on value & safe value mechanism
• Built-in Watchdog
• Wide Operating Temperature Range
• 4kV ESD Protection

Introduction

The WF-2042 is a 16-channel isolated digital output module and it is one of the members of the WF-2000 wireless product family. In addition, the WF-2042 has WLAN connection complies with the IEEE802.11b/g standards. With the popularity of 802.11 network infrastructure, the WF-2042 makes an easy way to incorporate wireless connectivity into monitoring and control systems. The WF-2042 also supports Modbus/TCP and UDP protocols and the network encryption configuration, which makes perfect integration to SCADA software and offer easy and safe access for users from anytime and anywhere.

Applications

Ordering Information

Available soon

Will be phased out

Phased out

PRODUCT SERIES	DESCRIPTION	QNT.	INQUIRY

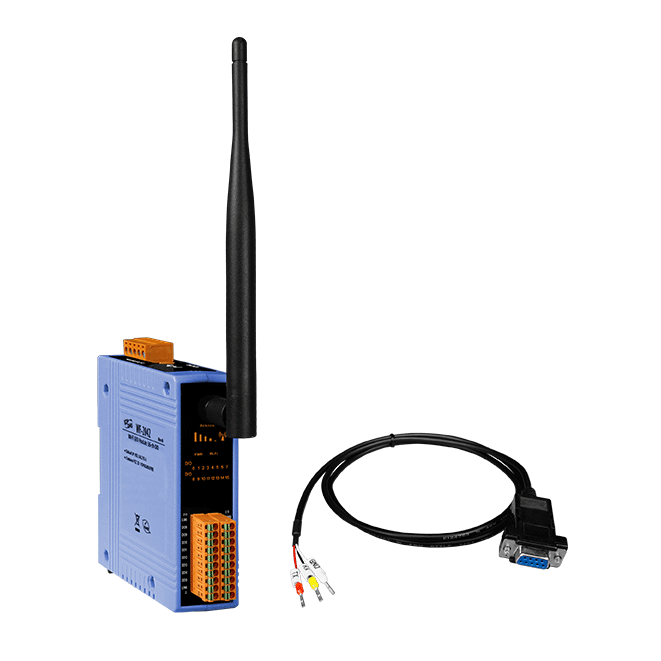

PRODUCT SERIES WF-2042 CR	DESCRIPTIONWi-Fi I/O Module with Isolated 16-ch (Sink, NPN) DO (Asia Only) (RoHS) Includes ANT-124-05 Antenna and CA-0910 Cable

This combination include other products.

Similar Products

Available soon

Will be phased out

Phased out

Isolation
Intra-module Isolation	DO: 3750 VDC

Wi-Fi
Transmission Distance (LoS)	50 meters (LOS)
Standard	IEEE 802.11 b/g* IEEE 802.11 b/g/n**
RX Sensitivity	-83 dBm @ 11 Mbps* -93 dBm @ 11 Mbps**
Output Power	8 dBm @ 11 Mbps* 14 dBm @ 11 Mbps**
Mode	Infrastructure & Ad-hoc* Infrastructure & Limit-AP**
Encryption	WEP, WPA and WPA2
Antenna	5 dBi (Omni-Directional)
