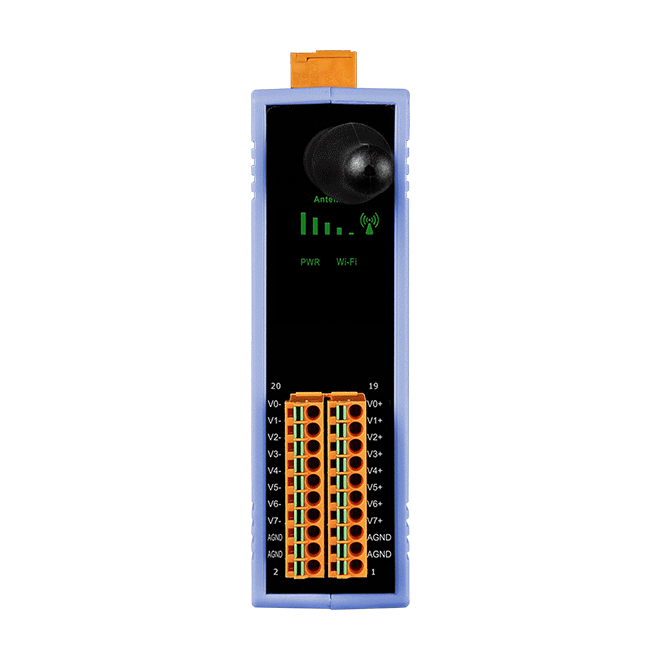

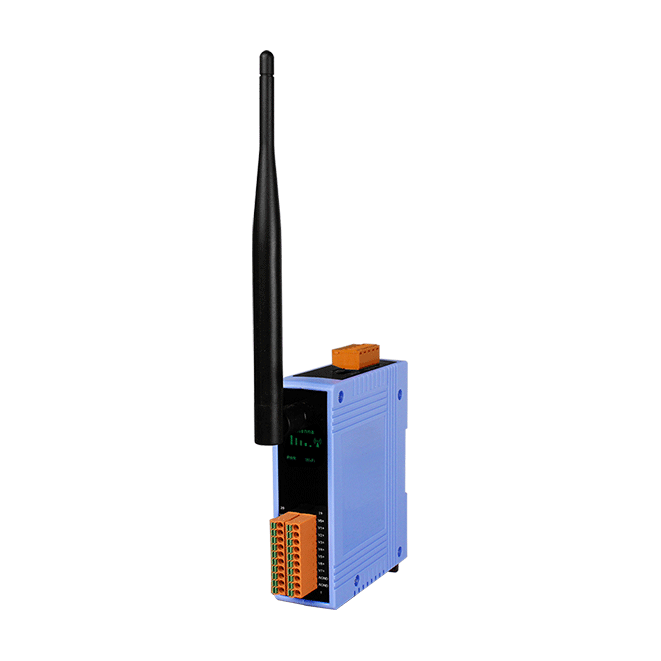

WF-2017
Wi-Fi I/O Module with 8-ch/16-ch AI (Asia Only)
Features
• 8-channel Differential Analog Input
• 16-channel Single-ended Analog Input
• Compatible with IEEE 802.11b/g standards
• Support WEP, WPA and WPA2 wireless encryption
• Support Modbus/TCP and UDP protocols
• Support DHCP network configuration
• Wide Operating Temperature Range
• 4 kV ESD Protection
• Built-in Watchdog
• 16-channel Single-ended Analog Input
• Compatible with IEEE 802.11b/g standards
• Support WEP, WPA and WPA2 wireless encryption
• Support Modbus/TCP and UDP protocols
• Support DHCP network configuration
• Wide Operating Temperature Range
• 4 kV ESD Protection
• Built-in Watchdog
Introduction
The WF-2017 is a Wi-Fi interface and 8-channel Differential/16-channel Single-Ended analog input module. The analog input range is software selectable and supports +/-10V, +/-5V, +/-1V, +/-500 mV, +/-150 mV, and +/-20 mA. Differential and Single-ended mode is selected by jumpers. In addition, the WF-2017 has WLAN connection complies with the IEEE802.11b/g standards. With the popularity of 802.11 network infrastructure, the WF-2017 makes an easy way to incorporate wireless connectivity into monitoring and control systems. The WF-2017 also supports Modbus/TCP and UDP protocols and the network encryption configuration, which makes perfect integration to SCADA software and offer easy and safe access for users from anytime and anywhere.
Applications
Ordering Information
| PRODUCT SERIES | DESCRIPTION | QNT. | INQUIRY |
|---|---|---|---|
This combination include other products.
Similar Products
| Isolation | |
|---|---|
| Intra-module Isolation | Power: 3000 VDC |
| Wi-Fi | |
|---|---|
| Transmission Distance (LoS) | 50 meters (LOS) |
| Standard | IEEE 802.11 b/g* IEEE 802.11 b/g/n** |
| RX Sensitivity | -83 dBm @ 11 Mbps* -93 dBm @ 11 Mbps** |
| Output Power | 8 dBm @ 11 Mbps* 14 dBm @ 11 Mbps** |
| Mode | Infrastructure & Ad-hoc* Infrastructure & Limit-AP** |
| Encryption | WEP, WPA and WPA2 |
| Antenna | 5 dBi (Omni-Directional) |
| Analog Input | |
|---|---|
| Channels | 8-ch Differential / 16-ch Single-ended (Note), (Jumper Selectable) |
| Type | Voltage Current |
| Range | Voltage : ±150 mV, ±500 mV, ±1 V, ±5 V, ±10 V Current : 0 ~ +20 mA, +4 ~ +20 mA, ±20 mA (Jumper Selectable) |
| Resolution | 16-bit |
| Accuracy | ±0.1% of FSR |
| Sampling Rate | 10 Hz (Total) |
| Input Impedance | Differential: 2 MΩ Single-ended: 1 MΩ |
| Common Mode Rejection | 86 dB Min. |
| Normal Mode Rejection | 100 dB |
| Overvoltage Protection | Differential: 240 Vrms (2 MΩ) Single-ended: 150 Vrms (1 MΩ) |
| Individual Channel Configuration | Yes |
| Zero Drift | ±20 μV/°C |
| Span Drift | ±25 ppm/°C |
| Power | |
|---|---|
| Input Range | +10 VDC ~ +30 VDC |
| Consumption | 2.2 W |
| Mechanical | |
|---|---|
| Dimensions (mm) | 33 x 127 x 107 (W x L x H) (Without antenna) |
| Installation | DIN-Rail Mounting |
| Environment | |
|---|---|
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -30 ~ +80 °C |
| Humidity | 10 ~ 90% RH, Non-condensing |
Specification Memo
Note: Differential mode can be used for voltage input and current input. Single-Ended mode can be used for voltage input only.
(*): non-RevB version
(**): RevB version
(*): non-RevB version
(**): RevB version
